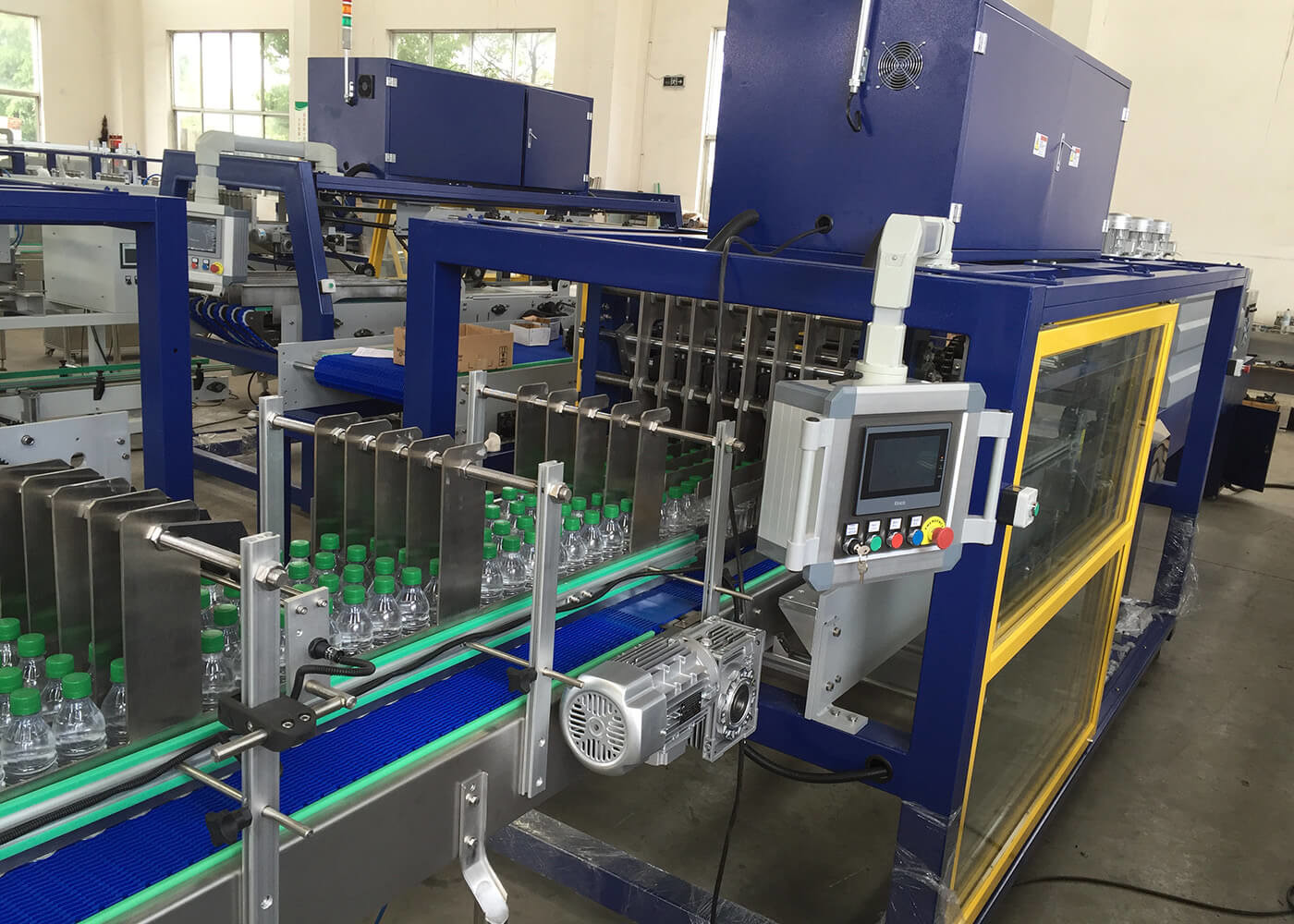

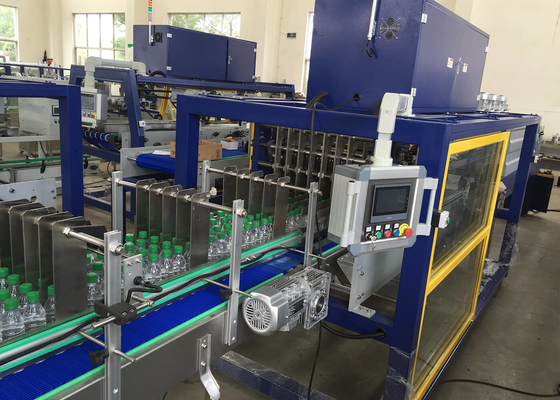

Industrial Case Carton Box Erector Packer , Wrap Around Carton Caser

Industrial Case Carton Box Erector Packer , Wrap Around Carton Caser

Industrial Case Carton Box Erector Packer , Wrap Around Carton Caser

Product Details:

Place of Origin: China
Brand Name: Sunswell
Certification: CE, ISO, SGS, UL
Model Number: GB-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Wooden Case
Delivery Time: 60 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Wrap Around Carton Packer Packaging Material: Wood
Application: Food,Beverage Driven Type: Electric
Automatic Grade: Automatic After-sales Service Provided: Engineers Available To Service Machinery Overseas



High Quality Industrial Case Carton Box Erector Packer Wrap Around Carton Caser Price



Feeding section:
1. Vacuum suction feeding to feed warping paperboard easily
2. Quality electromagnetic clutch and brake adpoted, feeding section controled independent, operation easily
3. Scorer wheel adjustable, suit for 2-8mm thick paperboard
4. Second creasing struction can impress again the paperboard which was not creased well

Guling and Folding section:
1. Simpless structure and high reliability, glue quantity adjustable, cleaning easily
2. Stainless steel glue wheel adopted, long life snd saving glue cost
3. Imported quality rubber belt adopted, automatic folding
4. With paperboard rectify device snd creasing rectify device

Counter and Stacker section:
1. Stacking and counting are simple and reliable
2. Digital control, operation easily and reliable. No-stop put in data and automatic counting
3. With rectification function.
4. Counting and put out by pneumatic, stable and quickly

Main Technical Technology
Capacity: 8000--50000b/h
NO. Of packing layer: One layer----PET bottle and glass bottle, two-piece cans, three-piece cans--more than one layer
Size of machine: 7200*2100*1600
Power: 6kw
Air compressure: 0.4-0.6Mpa
Weight: 1600kg



oversize(L/W/H) 4500/800/2050(mm)
total installed capacity 2KW
Main Power AC3-380V/50HZ+G+E
optimal working temperature -10degree~40degree
Auxiliary power supply 24VDC
pressure of compressed air 0.4~0.6Mpa
Consumption of compressed air 1500L/Min
weight 1000KG
