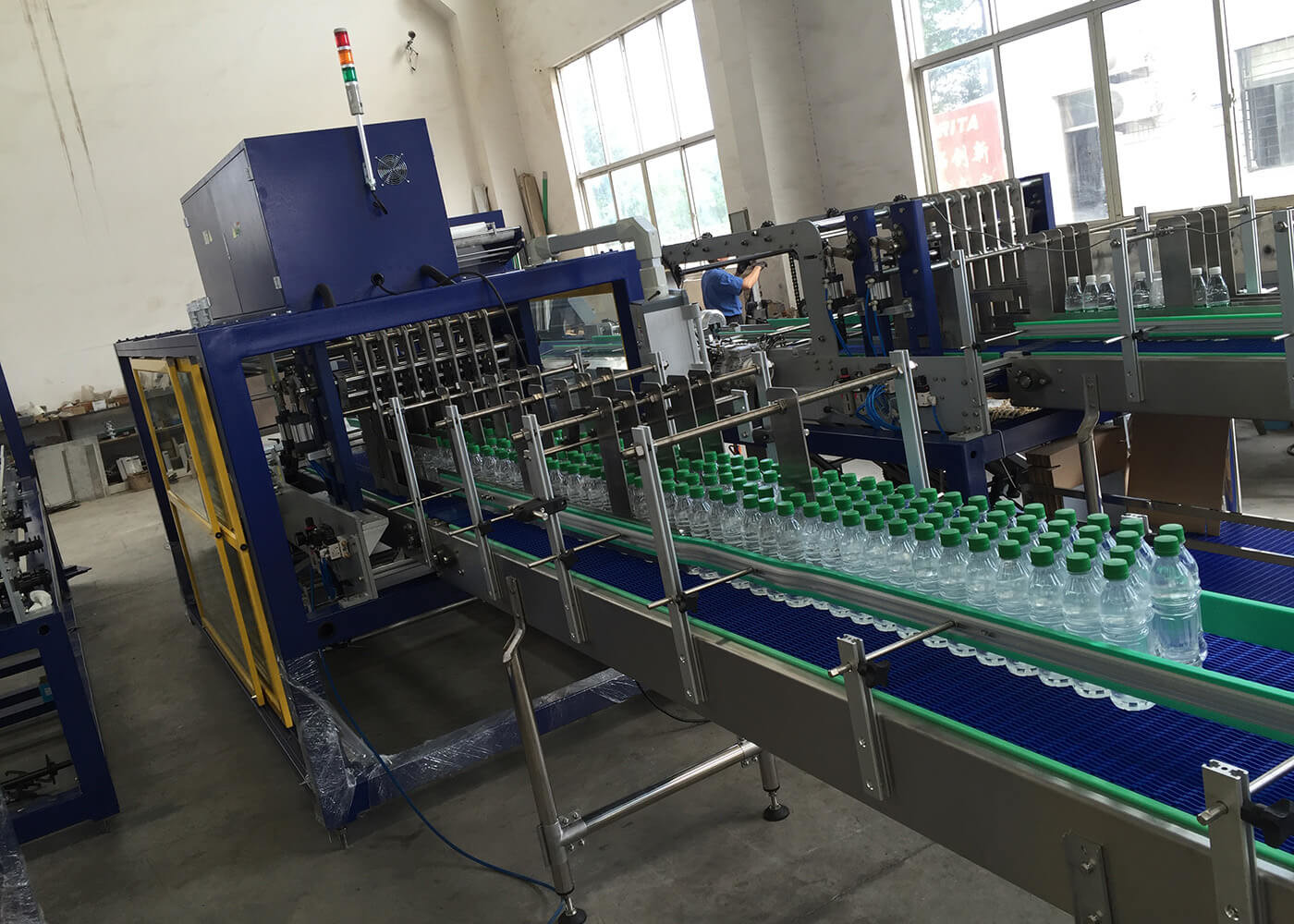

Commercial Case Box Shrink Packaging Equipment Carton Sealer Packer For Bottles

Commercial Case Box Shrink Packaging Equipment Carton Sealer Packer For Bottles

Commercial Case Box Shrink Packaging Equipment Carton Sealer Packer For Bottles

Product Details:

Place of Origin: China
Brand Name: Sunswell
Certification: CE, ISO, SGS, UL
Model Number: GB-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Wooden Case
Delivery Time: 60 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Name: Wrap Around Carton Packer Packaging Material: Wood
Application: Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea Driven Type: Electric
After-sales Service Provided: Engineers Available To Service Machinery Overseas Usage: Bottles Cans Carton Box,Packing
Automatic Grade: Fully-Automatic



Fully Automatic Commercial Case Box Carton Sealer Packer Packing Machine Used for Bottles



1, Description
Four - bar linkage boxing is machine can play four or five cases of continuous packing one time.In beverage industry, four - bar linkage boxed packaging machine is mainly for bottled product packing work .With the excellent performance,it is widely used in beverages, beer, chemical, food, pharmaceutical and other industries. The machine includes:packing operating system , bottle conveying system , cases conveying system, automation control center , a total electrical cabinets and other components. Mechanical devices, pneumatic devices , photoelectric detection device , frequency control devices , PLC programmable controller and HMI as a whole. The modern equipment with automatic control technology ensure the accurate work.


2, Machine structure
1) Characteristics of pneumatic grasper
a) The compressed air(0.15~0.25MPa) make the internal set of pneumatic grasper deform to clamp the bottles,the internal set will recover when exhaust to unlock bottles.The grasper is controlled by electrical, accurate and reliable
2) Main features
a) Stable operations: boxing, unloading boxes are driven by a motor with brake,after the grasper clamping the bottles,then lifting, moving forward and dropping,after putting the bottles in the boxes,the graspers will move back.The twin-four-link mechanism make the movement orbit,it can be seperate into two parts: crank-rocker mechanism and double rocker mechanism,the unique twin-four-link mechanism makes the process of bottles lifting and dropping accurate and stable.
b) High efficiency of the machine : In the process of work, start and end are slow, steady, the middle movement is faster, reducing non - working time, improve production efficiency.
c) Easy operation : automatic speed adjustment, and synchronous with the entire production line operation
d) Reasonable structure : It is composed of reasonable structure, reliable pneumatic device and advanced control technologies, advanced technology and the structure is simple.
e) Safe and reliable : Besides setting the shield, network, there is a photoelectric safety devices, when operator straying into danger area and machine will immediately stops automatically.
a) Equipped with a wide range of protection features machine will be stopped when malfunction appear.
i. lack of cases on the case-in chain
ii. lack of bottles on the botlles conveying table
iii. the grasper with botlles doesn't match the case
iv. When the operator cross the security line .

3, Technical parameters

Mode ZXJ24
Machine operating time 9/ secs per time
Grasped box every move big case(4×6plastic case):3/cases per time
small case(3×4plastic case):6/cases per time

Rated capacity
big case(4×6plastic case):24000/bottles/hour
big case(3×4plastic case):24000/bottles/hour
Max capacity big case(4×6plastic case):28000/bottles/hour
small case(3×4plastic case):28000/bottles/hour
Grasper 72
Working mode Case-in big case(4×6):shorter side facing forward
small case(3×4):
Longer side facing forward
Case-in channle:single channel

bottle shape
φ75×289mm(GB4544)
Case Plastic case

Plastic case domension
4×6bige case:520×354×317mm(××) (L×W×H)-φ75
3×4small case:368×276×320mm(××) (L×W×H) -φ75
Compressed air air source pressure0.5-0.6 Mpa
working pressnre 0.3~0.6MPa,grasper0.15~0.2MPa
air consumpion4.5m3/h
Tatol power 7.0Kw
Machine dimension Effective width of bottle conveying table :2000mm
Height of conveying table :1245mm
width of case conveying channel :440mm
Height of case conveying channel :800mm
Overall dimension5300×2665×2600mm(××)
Weight 4000Kg


4, Main configuration list

KH107BR77DV112M4/BMG/TF/A/M3/180º
Main drive motor reducer
SEW
JWB-X0.37-25D
Bottle unscrambling Stepless variable speed motor
Ucan
R37-Y80M4-0.45/0.75-8P/4P-24.42-M3-180° 1
case-in 1 geared motor
SEW
R37-Y80M4-0.45/0.75-8P/4P-24.42-M3-180° 2
case-in 2 geared motor
SEW
R47-Y80M4-0.75-47.75-M6-270°
Bottle-in geared motor
SEW
  Air cylinder AIRTAC
  Timing belt Made in China
  Pneumatic FRL FESTO
  air operated reversing valve FESTO
  Maintenance - free bearings IGUS
