|Place of Origin:||Zhangjiagang,China|
|Certification:||CE, ISO, SGS|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Export Standard Seaworthy Wooden Case|
|Delivery Time:||30 days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||100 sets per year|
|Name:||Pallet Wrapping Equipment Shrink Film Packaging Machine||Driven Type:||Electric|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Warranty:||12 Months|

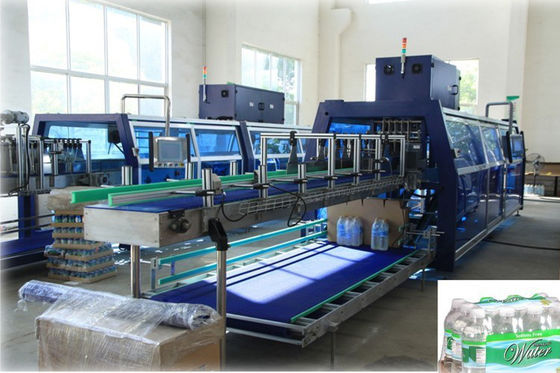

Automatic High speed film with tray or pad wrapper machinery
Automatic shrink packing machine is suitable for wrapping of such products as pop-top,mineral water ,bottles.beer,drinks etc without bottom tray ,working with PE film shrink tunnel to pack the goods perfectly ,the whole production process adopts the Germany advanced technology ,and the main parts are imported from international famous companies ,Capacity stable and using long-time ,it consists of seven actuating motor ,through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group come out from the hot shrinking packing machine
|Specifications for Shrink Wrapping Machine|
|Capacity||5 bags/ min||8-12 bags/min||15-18 bags/min||20-24bags/min|
|Material of film||PE film|
|Max shrink temperature||160-260degree|
|Bottle diameter||60-90mm ,height<330mm|
-Frequancy control,Secondary bottle transport device.
-The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.
-Inductive switch control film length.
-Touch screen,PLC control system advanced reliability of the equipemtn function.
-Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.
-Strong cooling system can reassure finalize the design quickly.
-Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.
-Frequancy conversion timing net transportation structure.
-The height of the conveyer belt can be made according to the user,adustable range±50mm
-Bottole transport machine can satisfy the direction of the user,it can prolong and shorten
-Pterygoid stainless iron heating system,durability.
-Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line.
