Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS |
| Model Number: | MB-10 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Seaworthy Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Name: | Pallet Wrapping Equipment Shrink Film Packaging Machine | Function: | PE Film Packaging Machine |
|---|---|---|---|
| Usage: | Pack The Product With Shrinking Film | Application: | Food,Beverage,Commodity |
| Voltage: | Customized | Packing Material: | PVC POF PP PE |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 12 Months |
| High Light: | case packing machine,film packing machine |
||

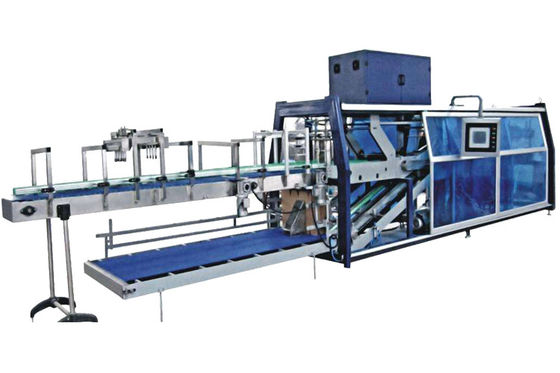

China Manufacture Automatic PE Film Heat Shrink Wrapper Liquid Packing Machine for Pet Bottle
Description
The machine adopt to servo location, PLC controlling, auto operation, main drive adopt to import motor drive, multi degree rotation via chain, chain wheel speed regulator ect. It auto degree is high, reliable controlling, easy to adjust, intelligentize manipulation ect advantage, can widely used for beverage, beer, chemistry, food, medicine ect industry, can do all kind of tin and bottle second time package, can match with auto filling production line
Applications:
Specifications:
|
Model |
MB-10 |
|
Packing form |
bottles and cans |
|
Packing speed |
10 packs/min |
|
Applicable container shape |
circular container, square container |
|
Total power charge |
19kw three-phase-five-line 380v/50Hz |
|
Machine size |
L×W×H=6500×3200×2100mm (Include 1meter no-power rear roller frame) |
|
Operating air pressure |
0.6~0.8Mpa |
|
Air consumption |
0.4stere/min |
|
Conveyor belt extreme breadth |
304mm |
|
Conveyor height |
according to client line (adjustable scope 150mm) |
Main performance features
Main parts
|
No. |
Name |
Brand |
Region |
Remarks |
|
1 |
Pneumatic Cylinder |
Chanto |
Taiwan |
|
|
2 |
Pneumatic Components |
Airtac |
Taiwan |
|
|
3 |
PLC |
Omron |
Japan |
|
|
4 |
Button |
Tayee |
China |
|
|
5 |
Inverter |
Schneider |
France |
|
|
6 |
Relay |
Schneider |
France |
|
|
7 |
Contactor |
Schneider |
France |
|
|
8 |
Solid Relay |
Crydom |
France |
|
|
9 |
Teflon Belt |
Kaiyao |
China |
Imported material |
|
10 |
Reducer |
Halei |
China |
|
|
11 |
Photoelectric Switch |
Autonics |
Korea |
|
|
12 |
Proximity Switch |
Autonics |
Korea |
|
|
13 |
Steel Sheet |
Baosteel |
China |
Cold-rolled (1.5-2.5mm) |
|
14 |
Chain Plate |
Tuoxin |
China |
POM |
