Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | Jiangsu, China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE SGS |
| Model Number: | CGF |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 80 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
| Type: | Filling Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Name: | Mineral Water Filling Machine Pure Water Bottling Machine | Material: | SUS304/316 |
| Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 220V/380V | Warranty: | 1 Year |
| Packaging Type: | Bottles | Packaging Material: | Wood |
| High Light: | water filling equipment,pet bottle filling machine |
||

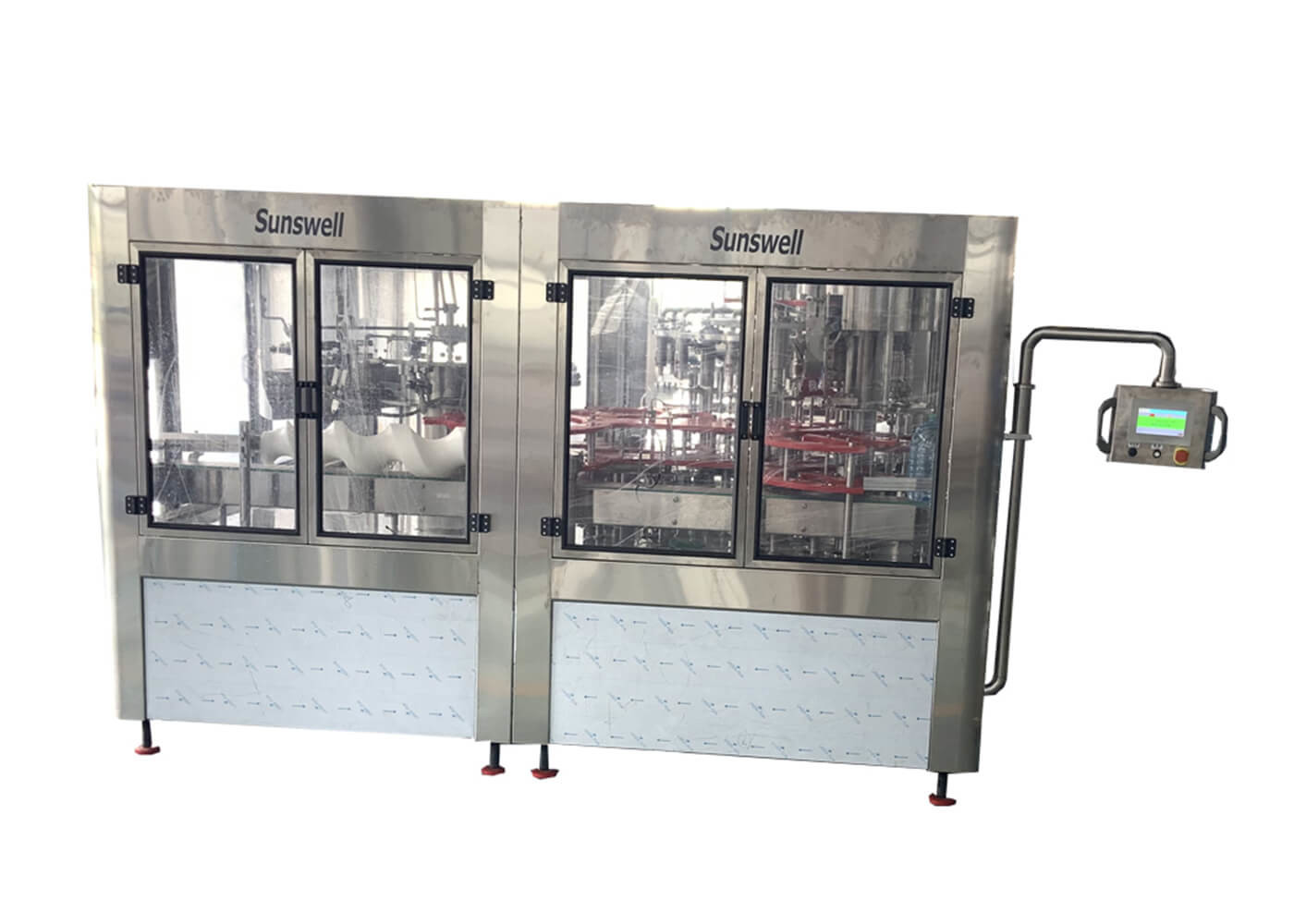

Automatic 3L-15L Gallon Jar Pure Mineral Drinking Water Washing Filling Capping Bottling Production Line
Main Features:
Bottle infeed
Bottle infeed by combination of infeed starwheels.
Bottle filling machine with bottle jam protection device.

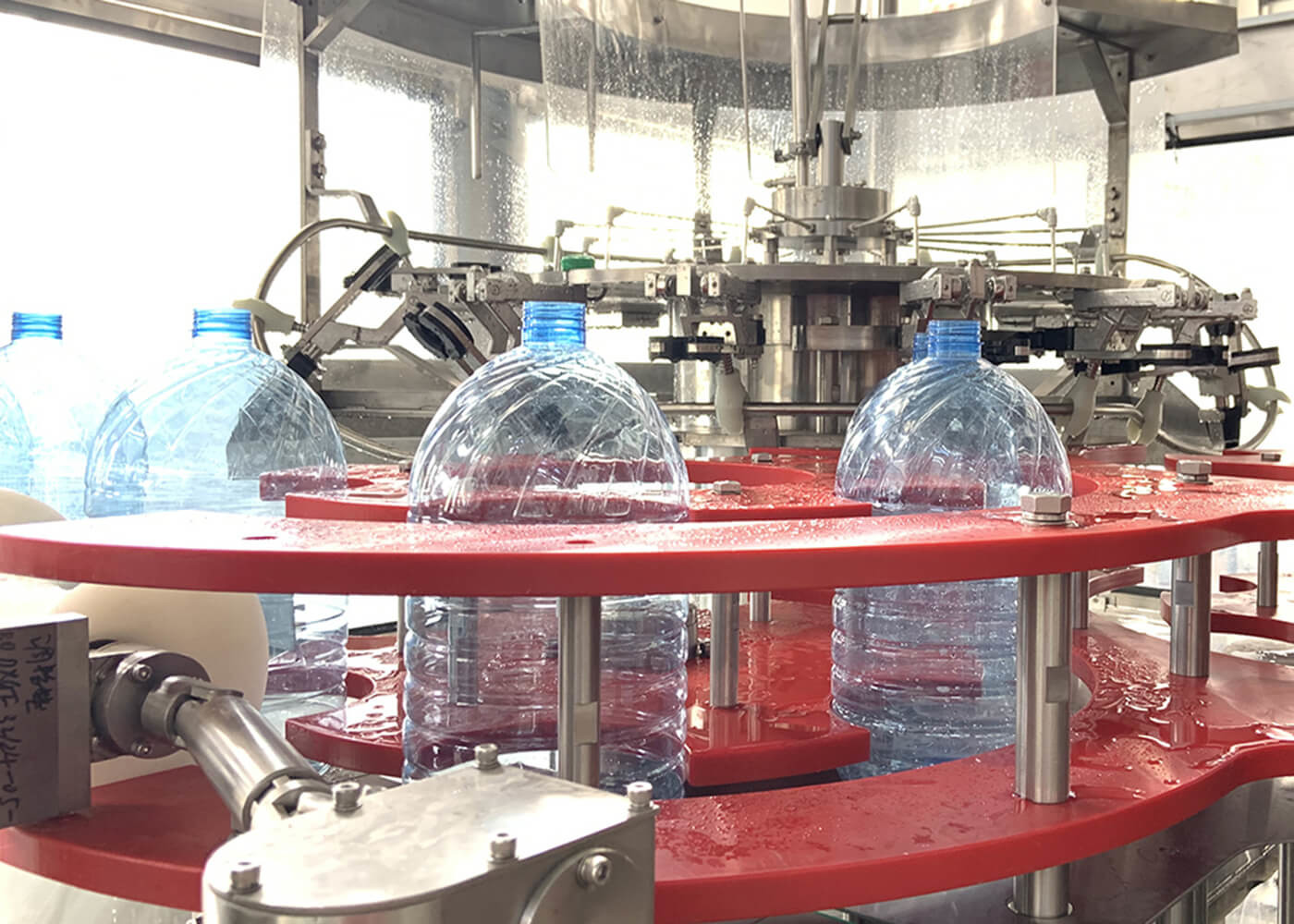

Rinser
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adoptsSunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angleensures to wash all side of the bottle, and can save the water Automatic pure water filling stations .
Made of stainless steel of superior quality.
Bottle filling machine equipped with bottle jam protection device

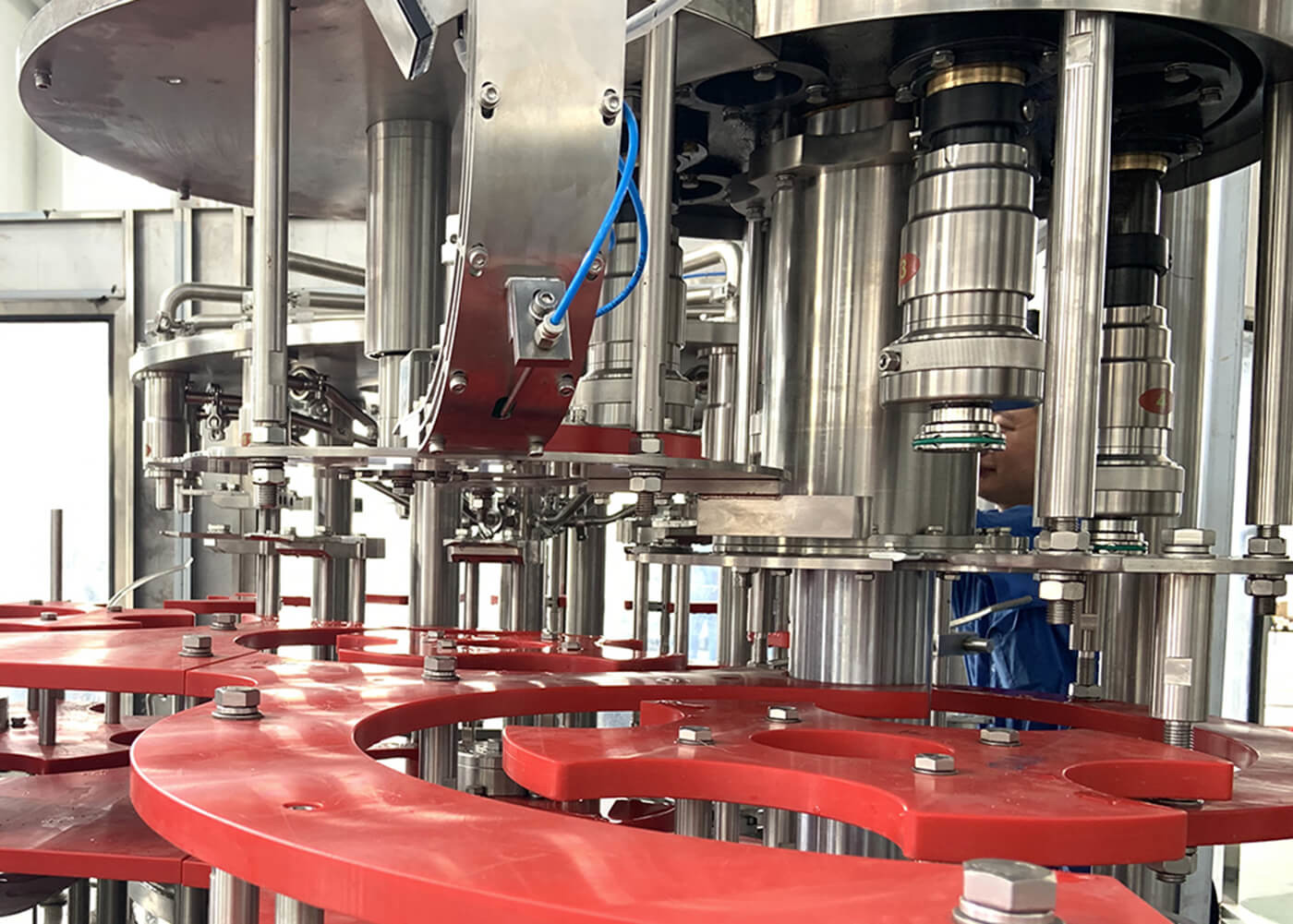

filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm (subject to bottle design).The filling valve material is SUS304.The filling system has liquid level automatic control.Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck,it starts to fill.Bottle is conveying by the wheel in the filling part.
Capper
Screw capping machine is most precision part in the 3-1 machine,it has a big influence to the goods stability and defective rate. our screw capping has following feature.
1)Sunswell import of advanced technology of screw capping,improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. Thepower of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2) In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the machine will stop automatically.
Output bottle star wheel part
Nylon wheel and conveyor belt cooperate output the bottle.
Output bottle conveyor belt part
Conveyor motor use frequency control of motor speed, which keep pace with the 3-1 machine. Prevent overturned bottle
Rack part
Rack is welded by high quality carbon steel, Antirust processing and spray surface. The surface is covered by the SUS304.
Electronic control system part
The electronic components like PLC and transducer are from Mitsubishi, Omron,etc.,The pneumatic devices are also from international famous brand.
Equipment structure
l Base
l Rotary rinser
l Rotary filler
l Rotary capper
l Bottle infeed and outfeed system
l Control Automatic
| Model | Rinsing heads | Filling heads | Capping heads | Capacity[BPH/5L] |
| CGF4-4-1 | 4 | 4 | 1 | 500 |
| CGF6-6-1 | 6 | 6 | 1 | 750 |
| CGF8-8-4 | 8 | 8 | 4 | 1000 |
| CGF10-10-5 | 10 | 10 | 5 | 1200 |
| CGF16-16-4 | 16 | 16 | 4 | 2000 |
| CGF25-25-5 | 25 | 25 | 5 | 3000 |
| CGF32-32-6 | 32 | 32 | 6 | 4000 |
