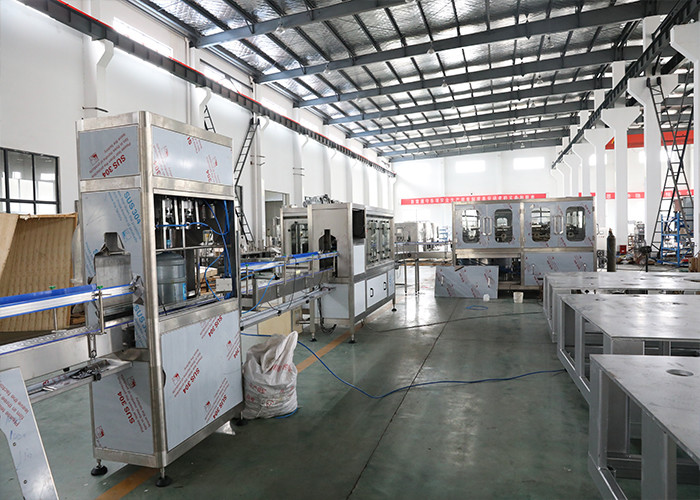

5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line

5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line

    • 5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line
    • 5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line
  • 5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line

    Product Details:

    Place of Origin: China
    Brand Name: Sunwell
    Certification: CE,SGS,ISO
    Model Number: SUNSWELL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Standard export wooden case
    Delivery Time: 45days
    Payment Terms: L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Type: Filling Machine Automatic Grade: Automatic
    Driven Type: Electric,Pneumatic Voltage: 220V/380V
    Packaging Type: Bottles Filling Material: Mineral Water,pure Water,Pure/Mineral Water
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts Warranty: 12 Months
    High Light:

    water filling equipment

    ,

    pet bottle filling machine

    5 Gallon Bottle Barrel Water Brush Washing Machine Production Line
    General Description:
    The production line can automatically complete cleaning the tub, sterilizing, filling, capping, shrink, bagging and transporting, having functional and compact structure, and simple, it is a mechanical, electrical, gas in one equipment.
    The machine material is stainless steel,resisting corrosion and easy to clean,the main electrial components and gas circuit elements are all of international brand.
    According to the customer's requirement,the machine could be equipped with automatic cap separator,atoumatic leakage inspector,automatic cap loader,shrink wrapper,etc.


    Characteristics:
    1. It is the ideal equipment for mineral water, distilled water and purified water producing process.
    2. Two rows multi-stage washing and pure water filling machine, capping machine, automatic water filling plant.
    3. It is the ideal equipment for mineral water, distilled water and purified water producing process. This machine composed with rinse filler and capper, Adopt cylinder cap press, with cap return function, cap sorter can keep one hour cap consummation, rinsing pressure will be displayed,
    4. The main electrical parts adopt products with brand of Siemens and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer Shower nozzle for washing barrel adopts the special technology equipment from American Sprayer Company. The machine works reliably and efficiently based On the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic And pneumatic components. It is rotary type.


    ModelQGF-300QGF-450QGF-600QGF-900QGF-1200QGF-1500QGF-2000
    Capacity(bph/5gallon)300450600900120015002000


    Description Of Equipment

    1,Cap Decapper
    Automatic decapper is a special equipment for retrieving barrel. It does not damage caps. This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth,and increases cap pulling success greatly.
    5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 0
    Main parameters
    Decapping head: 3pcs
    Jar size: Ф276×490×Ф56mm
    Capacity: 2,000BPH
    Compressed air: pressure 0.5-0.6Mpa, consumption 400L/hr
    Pneumatic cylinder drive
    Power: 0.75kw
    2,Outer Brusher

    Outer Brusher is a corollary equipment for barrel water line which produces mineral water and pure water. Bottom and outside surface will be cleaned completely. The machine is made of stainless steel,it is anti-corrosion and easy cleanable. Adopt bottle-jamming inspection device to decrease damage rate.It is well designed with reasonable structure and high efficiency, operating stably with highly automation.
    5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 1
    Main parameters
    Pneumatic components: AirTAC
    AC contactor: Schneider/SIEMENS
    Material: SUS304
    Bearing has good waterproof structure.
    Starwheel motor:Shanghai 0.75kw
    Washing pump: CNP 0.37kw

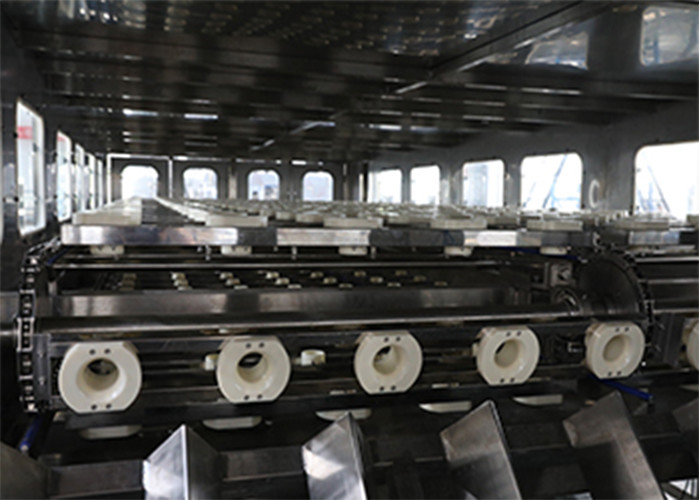

    3,Bottle Washing Machine
    15 steps for washing: 1-2 steps of hot alkaline water; 3-4 step of recycled water rinsing; 5-7 steps of
    acid water; 8 step of dripping; 9-10 steps of recycled water rinsing; 11 step dripping; 12-14 steps of pure
    water rinsing; 15 step of dripping.
    Disinfectant recycled on side, convenient for sampling and inspection. Each tank has low level alarming device. Chain moving for cleaning. Double-layer board avoids water mixing. High speed filling valves. Adopt chain type pressing caps.

    5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 25 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 3
    Main parameters
    Air source:pressure 0.5~0.6Mp,consumption 350L/M
    Structure: transmission controlled by PLC.
    Configuration (lye tank leaves steam joint)
    PLC: MITSUBISHI
    Pump: CNP
    Pneumatic components: AirTAC
    AC contactor: Schneider
    Main motor: Shanghai Bolong
    Equip automatic cap sorting and loading system
    Equipment automatic malfunction protection device
    4,Filling-capping 2-in-1 Monoblock

    1. stainless steel insert type filling nozzle, two times high precision filling, filling volume adjustable.
    2. Water pump is equipped.
    3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
    4. With AIRTAC brand air cylinder, F.R.L. Combination and solenoid valve for air cylinder.
    5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
    5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 45 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 5
    Main parameters
    Filling head: 8 pcs
    Power supply: 380V 50Hz 3 phase (adjustable )
    Air consumption: 0.5m3/min
    Suitable to Φ270×490 bottle (3,4,5 Gallon Bottle )
    5,Heat Shrinking Machine

    Electrical heating produces hot steam,barrels with full water after light inspecting are sleeved with plastic labels, then they enter steam paths to make plastic labels molding.
    5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 6
    Main parameters
    Material of machine body and pipeline: 304 Stainless Steel.
    With two thermal inside
    Automatic water lever control
    6,Visual Inspection

    5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 7
    To check the filled bottle full filled or not, and to check if have any impurity in the bottle water.

    7.Automatic bagging machine
    5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 85 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 9
    8.Cap Elevator
    5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 10
    Cap elevator is equipped with testing switch, when caps are consumed to a certain degree, testing switch will signal to start feeding. There are certain amounts of caps in the cap store, which will be elevated into the capper by belt.
    9,Bottle Conveyor Belt
    5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 11

    10.Palleziter
    5 Gallon Bottle Barrel Water Filling Machines Brush Washing Production Line 12
