Semi - Automatic Blow Molding Machine 1000BPH - 1200BPH For 500ml PET Bottle

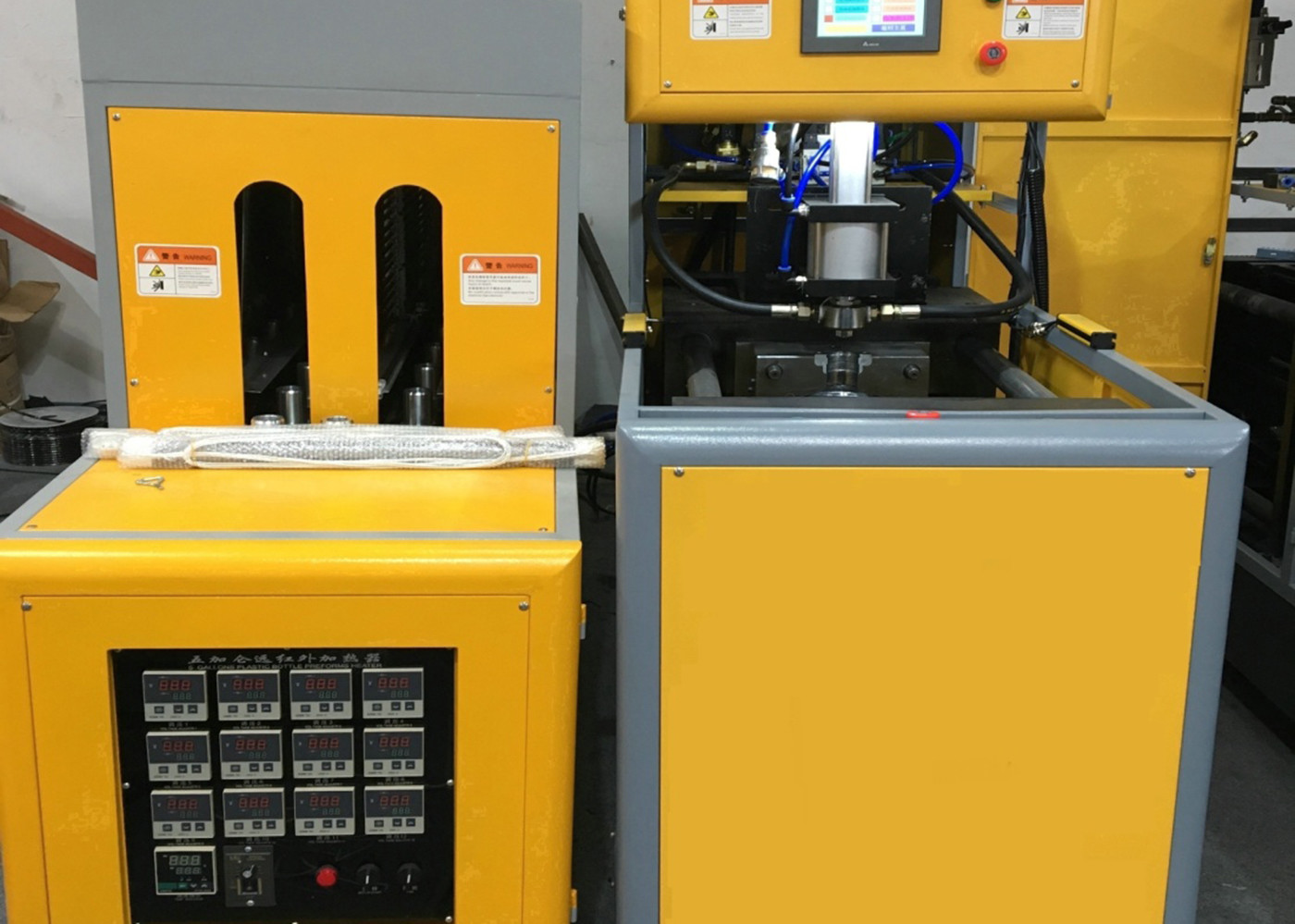

Semi - Automatic Blow Molding Machine 1000BPH - 1200BPH For 500ml PET Bottle

    • Semi - Automatic Blow Molding Machine 1000BPH - 1200BPH For 500ml PET Bottle
    • Semi - Automatic Blow Molding Machine 1000BPH - 1200BPH For 500ml PET Bottle
  • Semi - Automatic Blow Molding Machine 1000BPH - 1200BPH For 500ml PET Bottle

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: SSW-1200A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Voltage: 380V/3PH/50HZ,220V/380V,Customized Condition: New
    Application: Bottle After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
    Warranty: 1 Year Plastic Processed: PET
    Blow Moulding Type: Stretch Blow Moulding Product Name: Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,Automatic Blowing Molding Machine
    Color: Customized Use: Making PET Bottle
    Machine Type: Semi-automatic Blowing Machine Key Words: Blow Molding Machine,PET Stretch Bottle Blowing Molding Machine



    Semi-automatic 1000BPH-1200BPH 500ml 2 Cavity PET Bottle Blow Molding Machine with PET Preform



    Machine Configurations



    Electrical components PLC DELTA Valves

    High pressure

    blowing valve

    PARKER

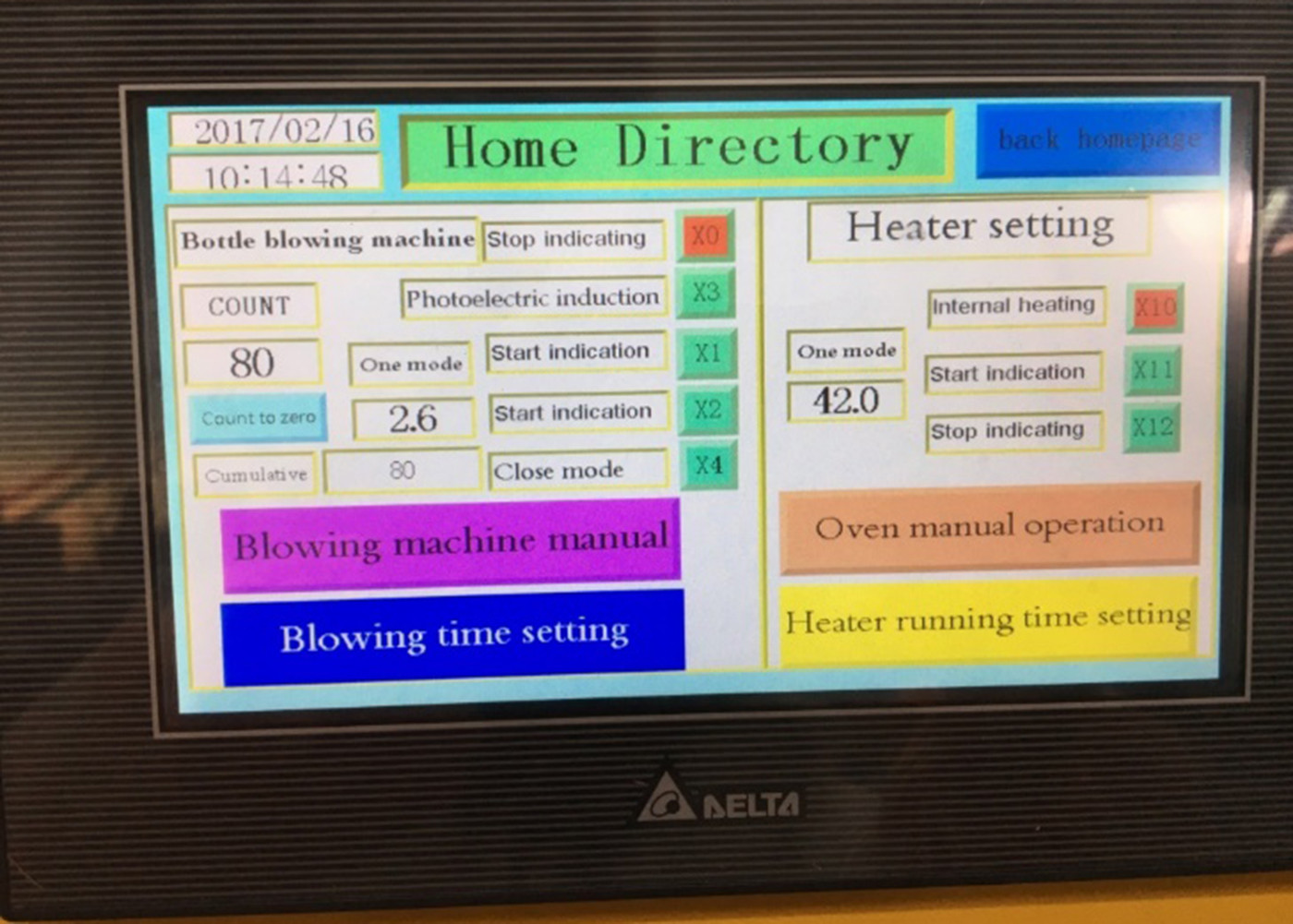

    HMI DELTA

    High pressure

    exhaust valve

    PARKER
    Circuit breaker of blower Schneider high pressure muffler YongCheng
    Start button Schneider
    Scram button Schneider Cylinders Clamping cylinder YongCheng
    Power supply DELTA Stretching cylinder YongCheng
    Temperature control module Zhenyu Air Filtration Low pressure press-regulating valve FESTO
    pressure regulator Zhenyu Low pressure lubricator FESTO
    Temperature controller Zhenyu







    Main Parameter



      Model SSW-1200A
    MOLDING Clamping force kg 13000
    Clamping stroke mm 155
    Stretching stroke mm 370
    Bottom Stroke mm /
    Cavity pitch mm 130
    Number of Cavity Cavities 2
    CONTAINER Max.container volume itr 3
    Neck diameter range mm 10-120
    Max.container diameter mm 130
    Max.container height mm 350
    Carriage unit pcs 72
    Theoretical capacity bph 1200
    ELECTRICAL SYSTEM Total power kw 17
    Heating power kw 16
    Max.heating power kw 8
    AIR SYSTEM Operating pressure kg/cm2 7
    Air consuming Itr/min 600
    Blowing pressure kg/cm2 25
    Air consuming Itr/min 800
    AIR DRYER Operating pressure kg/cm2 2~4
    Temperature   10~12
    Consuming kcal/hr 2000
    Flow rate Itr/min 30
    WATER CHILLER Operating pressure kg/cm2 2~4
    Temperature   30
    Consuming kcal/hr 10000
    Flow rate Itr/min 130
    MACHINE Machine size mm 1650-650-1700
    Machine weight kg 600



    Semi - Automatic Blow Molding Machine 1000BPH - 1200BPH For 500ml PET Bottle



    We use module which is better than SCR (Silicon Controlled Rectifier).



    If you are interested in our products, please feel free to contact us!
