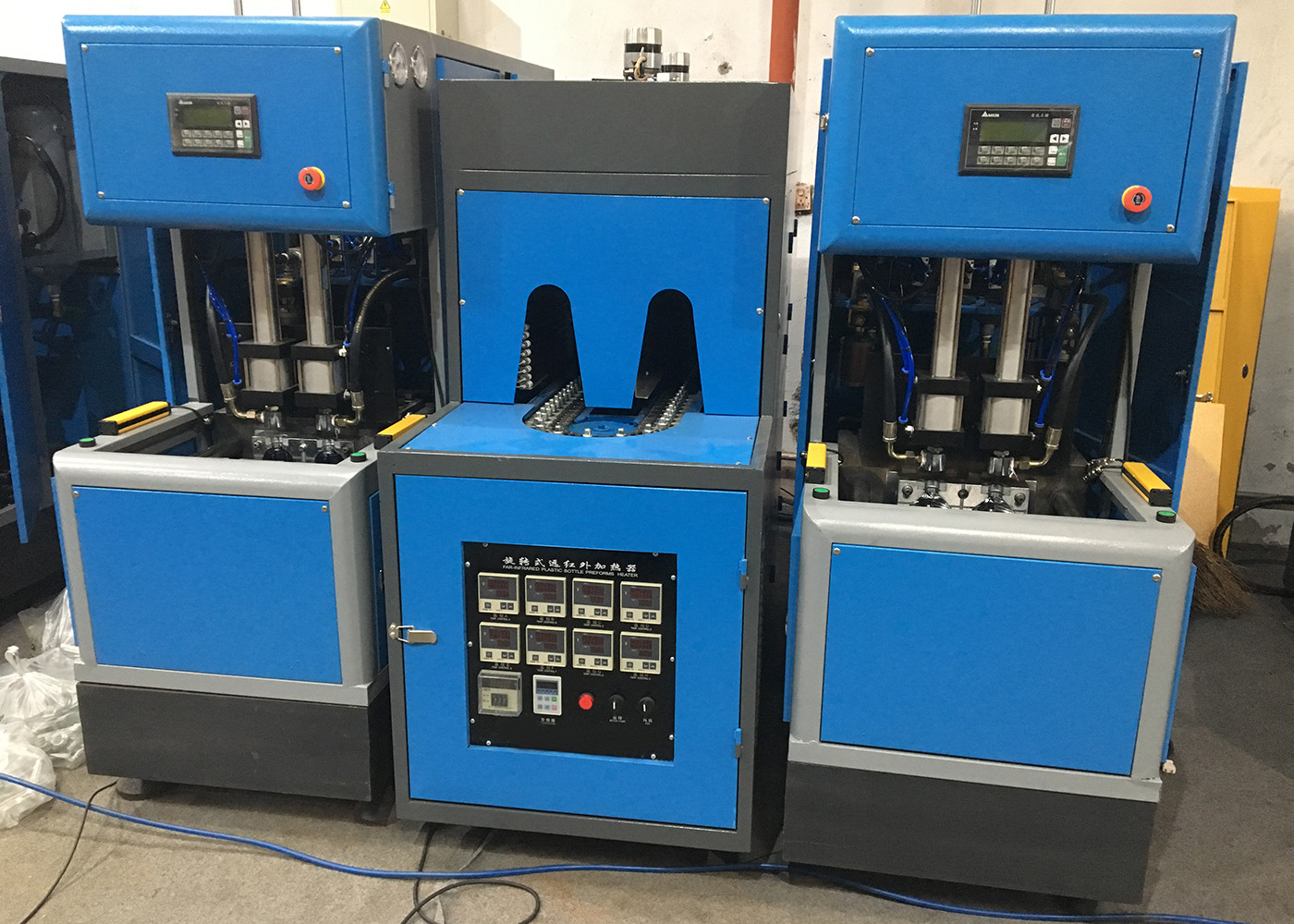

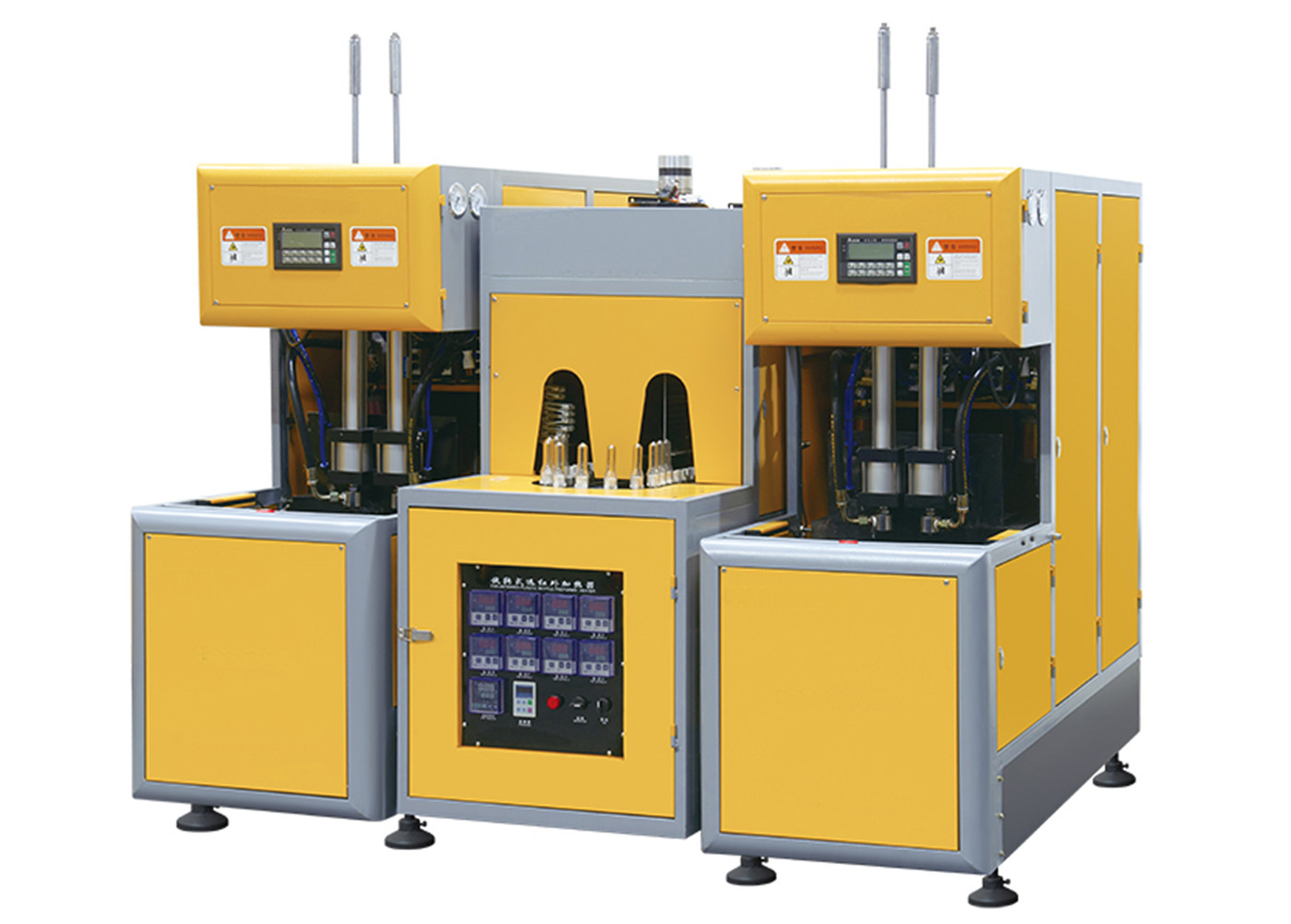

Semi - Automatic Stretch Blow Moulding Machine 1500BPH - 2000BPH 2 Cavity

Semi - Automatic Stretch Blow Moulding Machine 1500BPH - 2000BPH 2 Cavity

    • Semi - Automatic Stretch Blow Moulding Machine 1500BPH - 2000BPH 2 Cavity
    • Semi - Automatic Stretch Blow Moulding Machine 1500BPH - 2000BPH 2 Cavity
  • Semi - Automatic Stretch Blow Moulding Machine 1500BPH - 2000BPH 2 Cavity

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: SSW-1200B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,Automatic Blowing Molding Machine Voltage: 380V/3PH/50HZ,220V/380V,Customized
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training Warranty: 1 Year
    Plastic Processed: PET Blow Moulding Type: Stretch Blow Moulding
    Color: Yellow, Blue Use: Making PET Bottle
    Machine Type: Semi-automatic Blowing Machine Key Words: Blow Molding Machine,PET Stretch Bottle Blowing Molding Machine

    Semi - Automatic Stretch Blow Moulding Machine 1500BPH - 2000BPH 2 Cavity



    Description:



    This machine is operated by TFT touch screen, several languages can be selected, and it is easy to operate with some multi-layer menu. Speed, technical data are displayed in the screen, so it is very easy to operate.
    Special design of two steps blowing system, the pressure figure in the mould is scouted timely, so it can supply figure for operator to adjust. It will be helpful to the stability of bottle size.



    Configurations





    Electrical components

    PLC

    Taiwan DELTA

    Valves

    high pressure blowing valve



    touch screen

    Taiwan DELTA

    high pressure exhaust valve



    circuit breaker-Blower

    Schneider

    low pressure muffler



    start button

    Schneider

    high pressure muffler



    two-position switch

    Schneider

    Cylinders

    clamping cylinder

    China YongCheng

    scram button

    Schneider

    stretching cylinder

    China YongCheng

    power supply

    Taiwan DELTA

    Air Filtration

    low pressure press-regulating valve



    temperature control module

    China Zhenyu

    low pressure lubricator



    pressure regulator

    China Zhenyu



    temperature controller

    China Zhenyu



    Specifications



    Output

    up to bottle shape

    1500-2000bph

    Power

    power voltage

    3Phase

    400V/ 50HZ

    Finished Bottle

    bottle body diameter(max)

    30mm-130mm

    total power/lamp pow

    42kw

    40pcs*1kw

    bottle height

    50mm-350mm

    Air Source

    high pressure air compressor

    1.6m3/min 3.0MPa

    bottle neck diameter

    15mm-120mm

    air dryer

    2.5m3/min 3.0MPa

    Mold

    cavity 2cavity

    Cooling Water

    water yield

    15L/min

    mold thickness

    100~250mm

    Blower Dimension

    length*width*height/weight

    1650*650*1750mm/750kg

    Max. stretching distance

    430*380mm

    Heater Dimension

    length*width*height/weight

    2170*670*1600mm/400kg



    Features


    1. PLC adopts Taiwan Delta, system is more perfect, feedback is more intuitive
    2. With the installation of working lights, the quality inspection is clearer.
    3. The equipment has a micro-blowing function, and the product is easier to mold and has a lower breakage rate.
    4. With ultra-wide infrared sensor anti-pinch device

    Semi - Automatic Stretch Blow Moulding Machine 1500BPH - 2000BPH 2 Cavity
    Semi - Automatic Stretch Blow Moulding Machine 1500BPH - 2000BPH 2 Cavity
    Semi - Automatic Stretch Blow Moulding Machine 1500BPH - 2000BPH 2 Cavity
    Semi - Automatic Stretch Blow Moulding Machine 1500BPH - 2000BPH 2 Cavity
