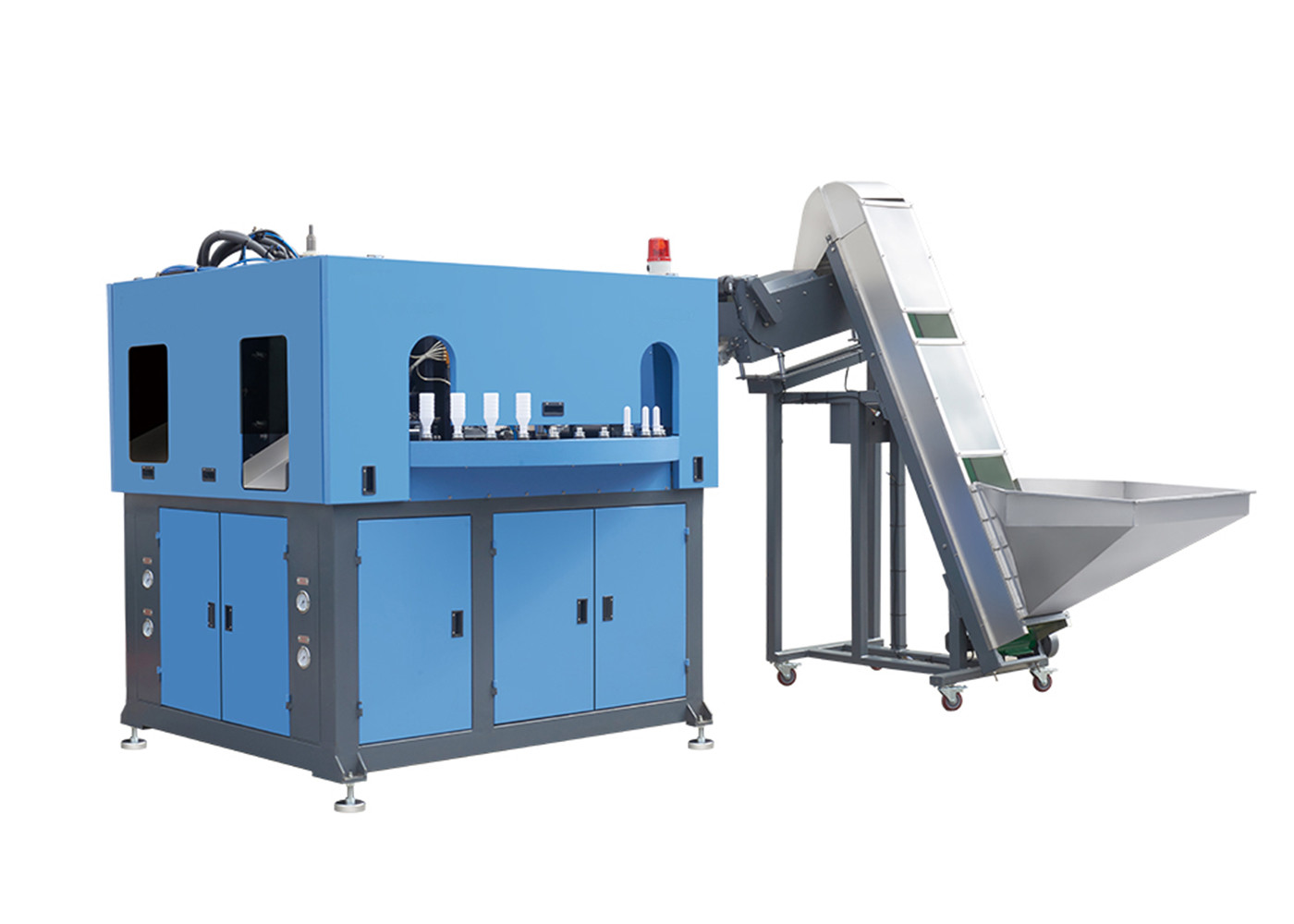

1600BPH - 2000BPH 2 Cavity Plastic Bottle Making Machine Stretch Blow Molding Machine

1600BPH - 2000BPH 2 Cavity Plastic Bottle Making Machine Stretch Blow Molding Machine

1600BPH - 2000BPH 2 Cavity Plastic Bottle Making Machine Stretch Blow Molding Machine

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Sunswell
Certification: CE SGS
Model Number: SSW-2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 60 days after receiving down payment
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Product Name: Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,Automatic Blowing Molding Machine Voltage: 380V/3PH/50HZ,220V/380V,Customized
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training Warranty: 1 Year
Plastic Processed: PET Blow Moulding Type: Stretch Blow Moulding
Color: Yellow, Blue Use: Making PET Bottle
Machine Type: Fully Automatic Blowing Machine Key Words: Blow Molding Machine,PET Stretch Bottle Blowing Molding Machine
Condition: New Automatic: Yes



1600BPH - 2000BPH 2 Cavity Plastic Bottle Making Machine Stretch Blow Molding Machine



General description

The automatic stretch blow molding machine is developed and made especially for the trend of high speed, on the base of abroad advanced technology. The tenet "reduce the running cost for customer" impenetrates into each tache from design to manufacturing. This machine is main used for PET bottle for pure water, mineral water, hot filling and cosmetic. It has a lot of advantages such as reasonable structure, small occupancy, little electrical consumption, and good stability. It accords with the sanitary standard of food, which is the good choice for big and middle company.



Configurations



Electrical components

PLC

Delta

Cylinders

clamping cylinder

SMC

touch screen

Delta

stretching cylinder

SMC

relay

Schneider

preform-feeding flipping cylinder

SMC

circuit breaker

Schneider

bottle-takeout flipping cylinder

SMC

air switch

Schneider

first-stage, second-stage slide cylinder

SMC

start button

Schneider

heating cylinder

SMC

two-position switch

Schneider

preform-separating cylinder

SMC

scram button

Schneider

manipulator cylinder

SMC

power supply

Schneider

bottle die cylinder

SMC

proximity switch

Schneider

cylinder sensor

SMC

photoelectric switch

Schneider

Valves

high pressure blowing valve

PARKER

Air Filtration

low pressure oil-water separator

Germany FESTO



3 In 1

high pressure exhaust valve

PARKER

low pressure press-regulating valve

high pressure one-way valve

FESTO

low pressure lubricator

low pressure muffler

SMC


high pressure muffler

ALWITCO

ALWITCO



low pressure operating valve

SMC





Specifications



Output

up to bottle shape

1600~2000bph

Power

power voltage

3Phase

380V /50HZ

Finished Bottle

bottle body diameter

30mm-110mm

installed power / actual power

18kw/10kw

bottle height

50mm-350mm

Air Source

high pressure air compressor

1.6m3/min 3.0MPa

bottle neck diameter

15mm-100mm

low pressure air compressor

1.6m3/min 1.0MPa

Mold

cavity 2cavity

Cooling Water

water yield

15L/min

mold thickness

180±5mm

Blower Dimension

length*width*height/ weight

1950*1800*2100

mm/2200kg

Max. stretching distance

350*370mm

Preform- loader Dimension

length*width*height/ weight

2000*1350*2650

mm/600kg
