Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunwell |
| Certification: | CE,SGS,ISO |
| Model Number: | SUNSWELL |
| Minimum Order Quantity: | 1 set |
| Price: | nogetiate |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets per year |
| Condition: | New | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric,Pneumatic | Voltage: | Can Be Designed |
| Material: | Stainless Steel 304/316 | Filling Material: | Mineral Water,pure Water,Pure/Mineral Water |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts | Warranty: | 12 Months |
| Highlight: | bottled water filling machine,automated filling machine |
||

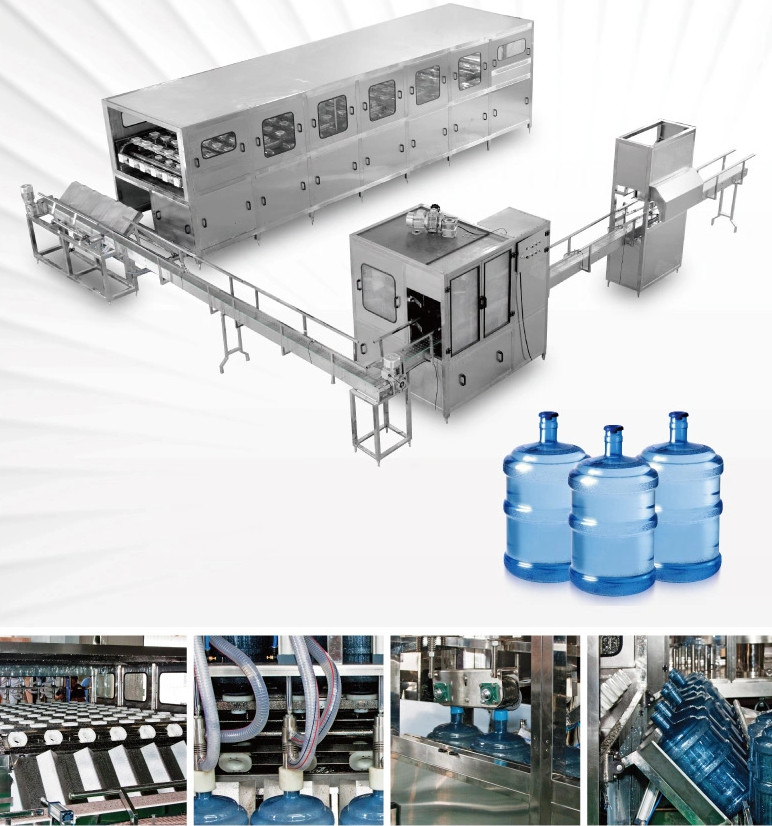

3gallon 5gallon Barrel Water Rising Filling Capping Bottling Machine
General Description
The production line can automatically complete cleaning the tub, sterilizing, filling, capping, shrink, bagging and transporting, having functional and compact structure, and simple, it is a mechanical, electrical, gas in one equipment.
The machine material is stainless steel,resisting corrosion and easy to clean,the main electrial components and gas circuit elements are all of international brand.
According to the customer's requirement,the machine could be equipped with automatic cap separator,atoumatic leakage inspector,automatic cap loader,shrink wrapper,etc.
| Model | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-1500 | QGF-2000 |
| Capacity(bph/5gallon) | 300 | 450 | 600 | 900 | 1200 | 1500 | 2000 |
Description Of Equipment
1,Cap Decapper
Automatic decapper is a special equipment for retrieving barrel. It does not damage caps. This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth,and increases cap pulling success greatly.
Main parameters
Decapping head: 3pcs
Jar size: Ф276×490×Ф56mm
Capacity: 2,000BPH
Compressed air: pressure 0.5-0.6Mpa, consumption 400L/hr
Pneumatic cylinder drive
Power: 0.75kw
2,Outer Brusher
Outer Brusher is a corollary equipment for barrel water line which produces mineral water and pure water. Bottom and outside surface will be cleaned completely. The machine is made of stainless steel,it is anti-corrosion and easy cleanable. Adopt bottle-jamming inspection device to decrease damage rate.It is well designed with reasonable structure and high efficiency, operating stably with highly automation.
Main parameters
Pneumatic components: AirTAC
AC contactor: Schneider/SIEMENS
Material: SUS304
Bearing has good waterproof structure.
Starwheel motor:Shanghai 0.75kw
Washing pump: CNP 0.37kw

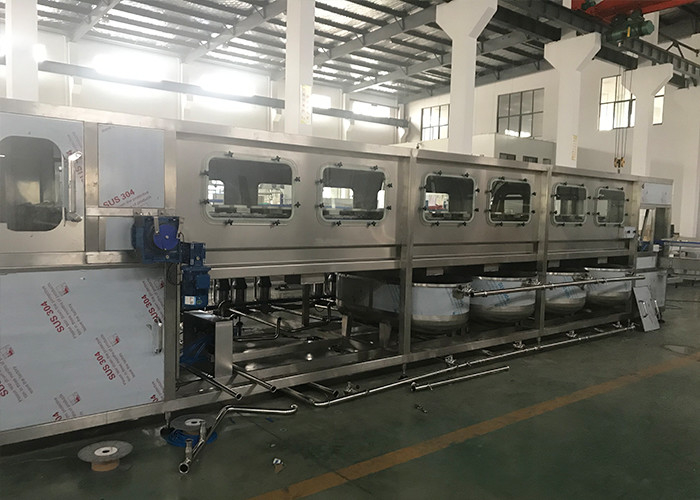

3,Bottle Washing Machine
15 steps for washing: 1-2 steps of hot alkaline water; 3-4 step of recycled water rinsing; 5-7 steps of
acid water; 8 step of dripping; 9-10 steps of recycled water rinsing; 11 step dripping; 12-14 steps of pure
water rinsing; 15 step of dripping.
Disinfectant recycled on side, convenient for sampling and inspection. Each tank has low level alarming device. Chain moving for cleaning. Double-layer board avoids water mixing. High speed filling valves. Adopt chain type pressing caps.
Main parameters
Air source:pressure 0.5~0.6Mp,consumption 350L/M
Structure: transmission controlled by PLC.
Configuration (lye tank leaves steam joint)
PLC: MITSUBISHI
Pump: CNP
Pneumatic components: AirTAC
AC contactor: Schneider
Main motor: Shanghai Bolong
Equip automatic cap sorting and loading system
Equipment automatic malfunction protection device

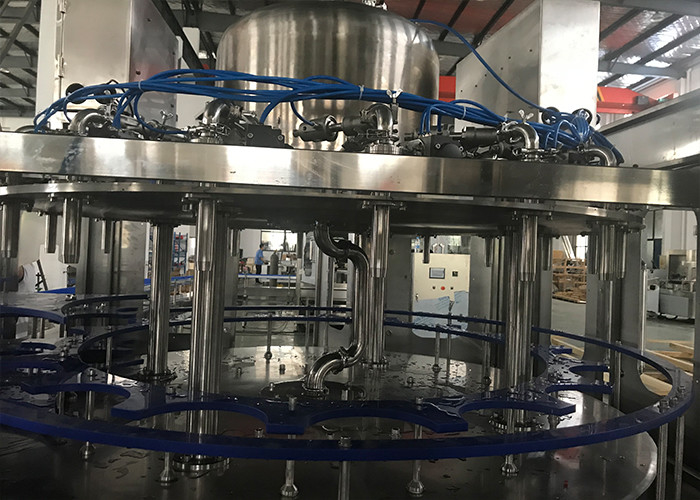

4,Filling-capping 2-in-1 Monoblock
1. stainless steel insert type filling nozzle, two times high precision filling, filling volume adjustable.
2. Water pump is equipped.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and solenoid valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
Main parameters
Filling head: 8 pcs
Power supply: 380V 50Hz 3 phase (adjustable )
Air consumption: 0.5m3/min
Suitable to Φ270×490 bottle (3,4,5 Gallon Bottle )
