Pure Spring Water Barrel Filling Machine Washing Capping Sealing Labeling Line

Pure Spring Water Barrel Filling Machine Washing Capping Sealing Labeling Line

    • Pure Spring Water Barrel Filling Machine Washing Capping Sealing Labeling Line
    • Pure Spring Water Barrel Filling Machine Washing Capping Sealing Labeling Line
    • Pure Spring Water Barrel Filling Machine Washing Capping Sealing Labeling Line
  • Pure Spring Water Barrel Filling Machine Washing Capping Sealing Labeling Line

    Product Details:

    Place of Origin: China
    Brand Name: Sunwell
    Certification: CE,SGS,ISO
    Model Number: SUNSWELL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Standard export wooden case
    Delivery Time: 45days
    Payment Terms: L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Automatic Grade: Automatic Driven Type: Electric,Pneumatic
    Voltage: Can Be Designed Material: Stainless Steel 304/316
    Filling Material: Mineral Water,pure Water,Pure/Mineral Water After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts
    Warranty: 12 Months



    5 Gallon 18.9L 20L Barrel Pure Spring Water Washing Filling Capping Sealing Labeling Line Machine


    General Description
    The production line can automatically complete cleaning the tub, sterilizing, filling, capping, shrink, bagging and transporting, having functional and compact structure, and simple, it is a mechanical, electrical, gas in one equipment.
    The machine material is stainless steel,resisting corrosion and easy to clean,the main electrial components and gas circuit elements are all of international brand.
    According to the customer's requirement,the machine could be equipped with automatic cap separator,atoumatic leakage inspector,automatic cap loader,shrink wrapper,etc.

    Filling-capping 2-in-1 Monoblock
    1. stainless steel insert type filling nozzle, two times high precision filling, filling volume adjustable.
    2. Water pump is equipped.
    3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
    4. With AIRTAC brand air cylinder, F.R.L. Combination and solenoid valve for air cylinder.
    5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows

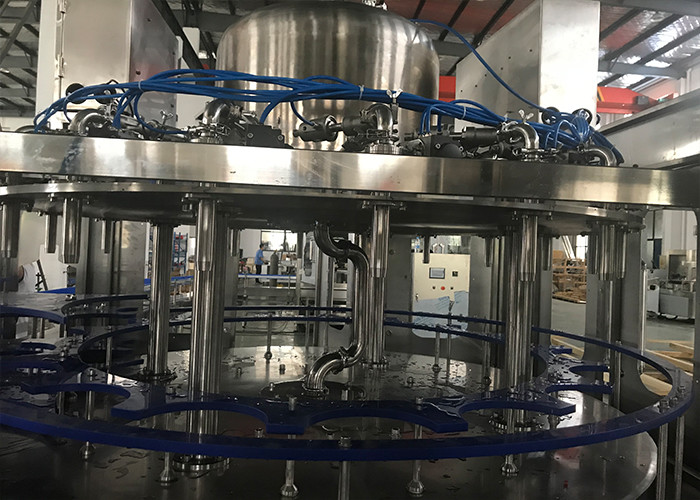

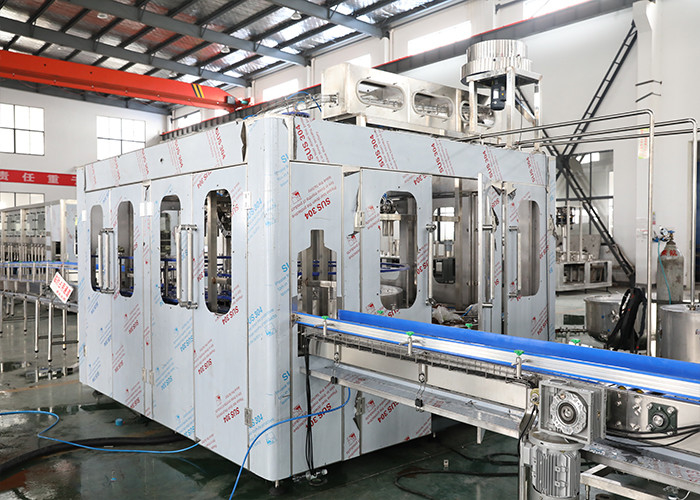

    Pure Spring Water Barrel Filling Machine Washing Capping Sealing Labeling LinePure Spring Water Barrel Filling Machine Washing Capping Sealing Labeling Line
    Main parameters
    Filling head: 8 pcs
    Power supply: 380V 50Hz 3 phase (adjustable )
    Air consumption: 0.5m3/min
    Suitable to Φ270×490 bottle (3,4,5 Gallon Bottle )
    Full automatic 5 gallon barreled water filling machine integrates bottle washer, filler, and sealer into one unit.
    In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically. This barreled water filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy. This barreled water filling machine also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging. This water filling machine has features of complete functional, novel design, and the high degree of automation. This barreled water filling equipment is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

    Technical Specifications:

    Model Working position number,filling heads and capping heads Production capacity Applicable bottle specifications (mm) Main motor power(kw)
    QGF-100 3,1,1 100BPH 3-5gallon,
    D=265-273mm,
    H=150-360mm
    1.41
    QGF-150 5,1,1 150BPH 1.5
    QGF-300 7,2,1 300BPH 6
    QGF-450 9,3,1 450BPH 30
    QGF-600 11,4,1 600BPH 32
    QGF-900 13,8,1 900BPH 35
    QGF-1200 15,10,1 1200BPH 40
    QGF-1500 17,12,1 1500BPH 52



    Main features:
    1.The 5 Gallon Filling Machineis composed of barrel washer, barrel filling machine and barrel sealer into one unit.
    2. Especially for filling drinking water of 3 and 5 gallons. It is an idea filling line to produce mineral water, distilled water and purified water.
    3. The whole line is made of superior stainless steel, anticorrosive and easy to clean.
    4. Only two operators are needed for a line, which is wholly automatic barreled
    5. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection, full-auto barrel outside brusher, full-auto barrel loading machine, steam shrinking film machine and coding system can be choose depends on what customer's need.

    Composition:

    PLC Mitsubishi
    Motor WNM
    Touch screen WEIVIEW
    Frequency converter Mitsubishi
    Air switch Schneider
    Breaker Siemens
    Contactor Siemens
    Photoelectric switch Schneider
    Main bearing NSK
    Sealing Sealtech
    Pneumatic components AirTAC
