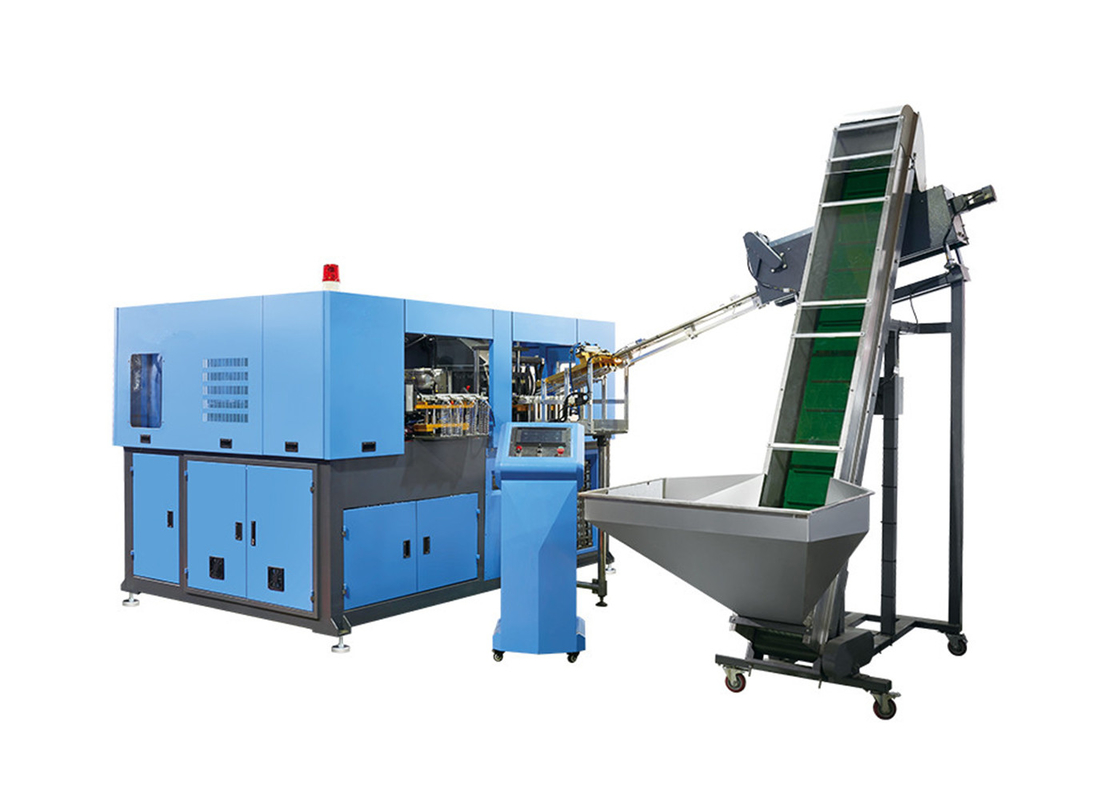

3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine

3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine

    • 3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine
    • 3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine
  • 3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: SSW-4000SF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,Automatic Blowing Molding Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
    Warranty: 1 Year Plastic Processed: PET
    Blow Moulding Type: Stretch Blow Moulding Color: Blue
    Use: Making PET Bottle Machine Type: Full Automatic Blowing Machine
    Key Words: Blow Molding Machine,PET Stretch Bottle Blowing Molding Machine Condition: New
    Automatic: Yes Voltage: Customized



    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine



    Description:

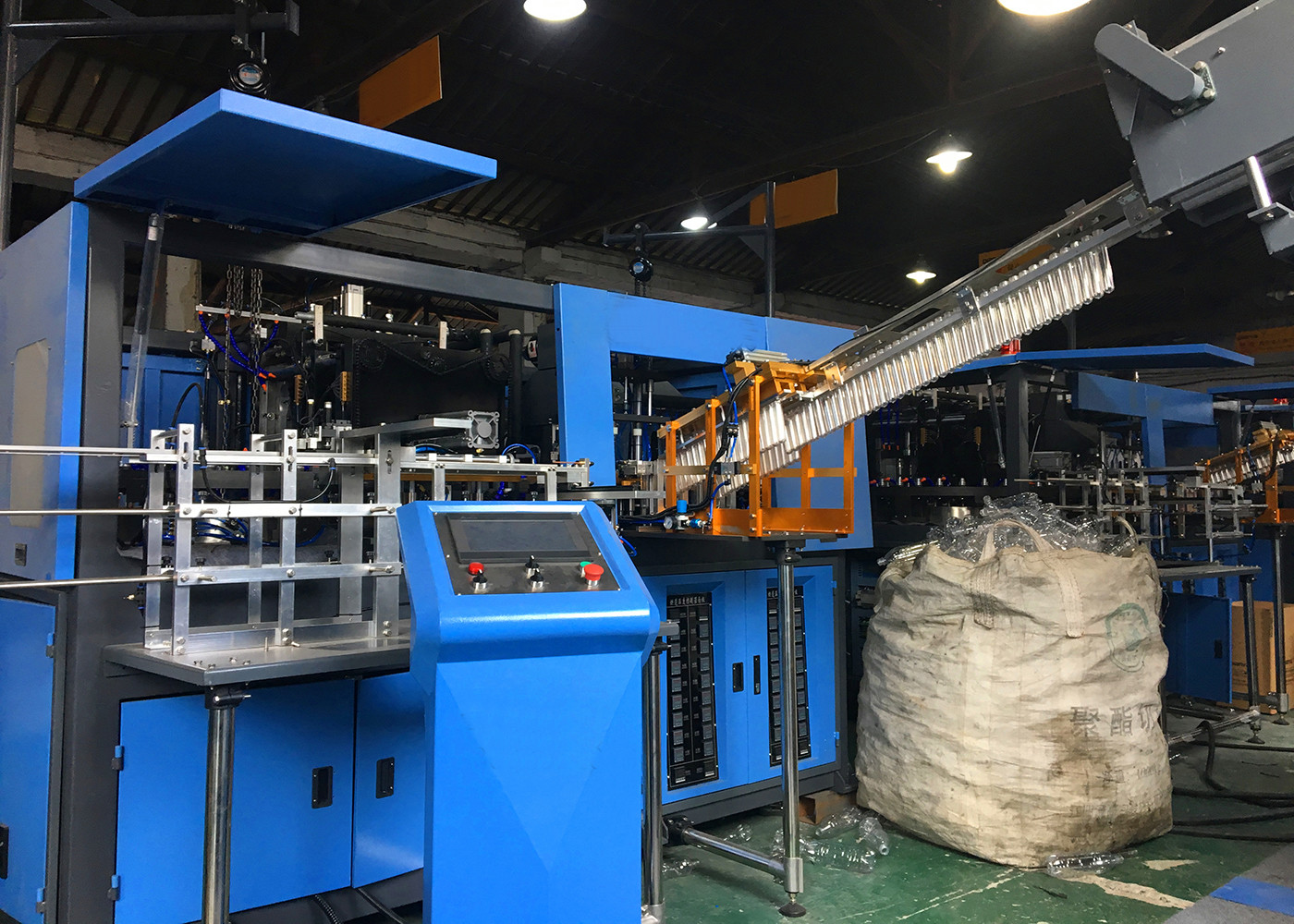

    Separate platform
    In order to facilitate the troubleshooting of the equipment, it is equipped with four 360-degree rotary wheels under the platform. It can be directly moved to the inspection position according to actual needs when maintenance; the language of the operation panel and system are in both English and Chinese.
    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine
    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine
    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine

    The clamping uses pneumatic five-point pressure boosting clamping, the clamping force is large and clean; the cylinders such as clamping and track movement are all SMC
    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine
    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine

    The drying tunnel adopts a single set of side-by-side heating, which greatly reduces the footprint of the equipment;
    The heating is performed by using a ruby infrared lamp with a wavelength to save energy by about 25% compared with the yellow quartz tube; and the front and rear adjustment can be performed according to the structure of the preform;
    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine
    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine

    Drying tunnel temperature adjustment control table
    A temperature control meter for a lamp, precise temperature control and convenient adjustment
    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine

    PLC and touch screen adopt Taiwan Delta, relays, circuit breakers, switch buttons, etc. all adopt Schneider; the distribution of electrical components is concentrated, the lines are orderly and the corresponding names are attached to each accessory, which greatly saves maintenance and overhaul time;
    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine

    Bottle-out adopts manipulator, and the air delivery/conveyor belt can be directly connected;
    The embryo holder is more convenient to use for loading and unloading;
    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine

    The equipment equips with a wearing parts storage cabinet, easy to find and more tidy
    The external air source interface adopts 304 stainless steel joints, which are more durable against rust and corrosion; and each interface has the corresponding mark
    3000BPH - 4000BPH Automatic Blow Molding Machine 4 Cavity Servo Pet Bottle Making Machine



    Configurations


    Electrical components PLC Taiwan Delta Cylinders clamping cylinder Japan SMC
    touch screen Taiwan Delta preform-feeding flipping cylinder Japan SMC
    relay France Schneider bottle-takeout flipping cylinder Japan SMC
    circuit breaker France Schneider slide cylinder Japan SMC
    air switch France Schneider heating cylinder Japan SMC
    start button France Schneider preform-separating cylinder Japan SMC
    two-position switch France Schneider manipulator cylinder Japan SMC
    scram button France Schneider bottle die cylinder Japan SMC
    power supply France Schneider
    proximity switch France Schneider Valves high pressure blowing valve USA PARKER
    photoelectric switch France Schneider high pressure exhaust valve USA PARKER
    Air Filtration low pressure oil-water separator Germany FESTO

    3 In 1
    high pressure one-way valve Germany FESTO
    low pressure press-regulating valve low pressure muffler Japan SMC
    low pressure lubricator high pressure muffler USA ALWITCO
    Servo system Servo motor Taiwan Delta low pressure operating valve Germany FESTO


    Specifications


    Output up to bottle shape 3000-4000bph Power power voltage 3Phase
    380V /50HZ
    Finished Bottle bottle body diameter 30mm-110mm installed power / actual power 48kw/10kw
    bottle height 50mm-320mm Air Source high pressure air compressor 4.8m3/min 3.0MPa
    bottle neck diameter 18mm-48mm high pressure air tank 1.0m3/3.0MPa
    Mold cavity 4cavity Cooling Water Cooling temperature 10-20℃
    mold thickness 180±5mm Blower Dimension length*width*height/ weight 2950*2150*2100
    mm/3500kg
    Max. stretching distance 600*380mm Preform- loader Dimension length*width*height/ weight

    2000*1350*2650
    mm/600kg
