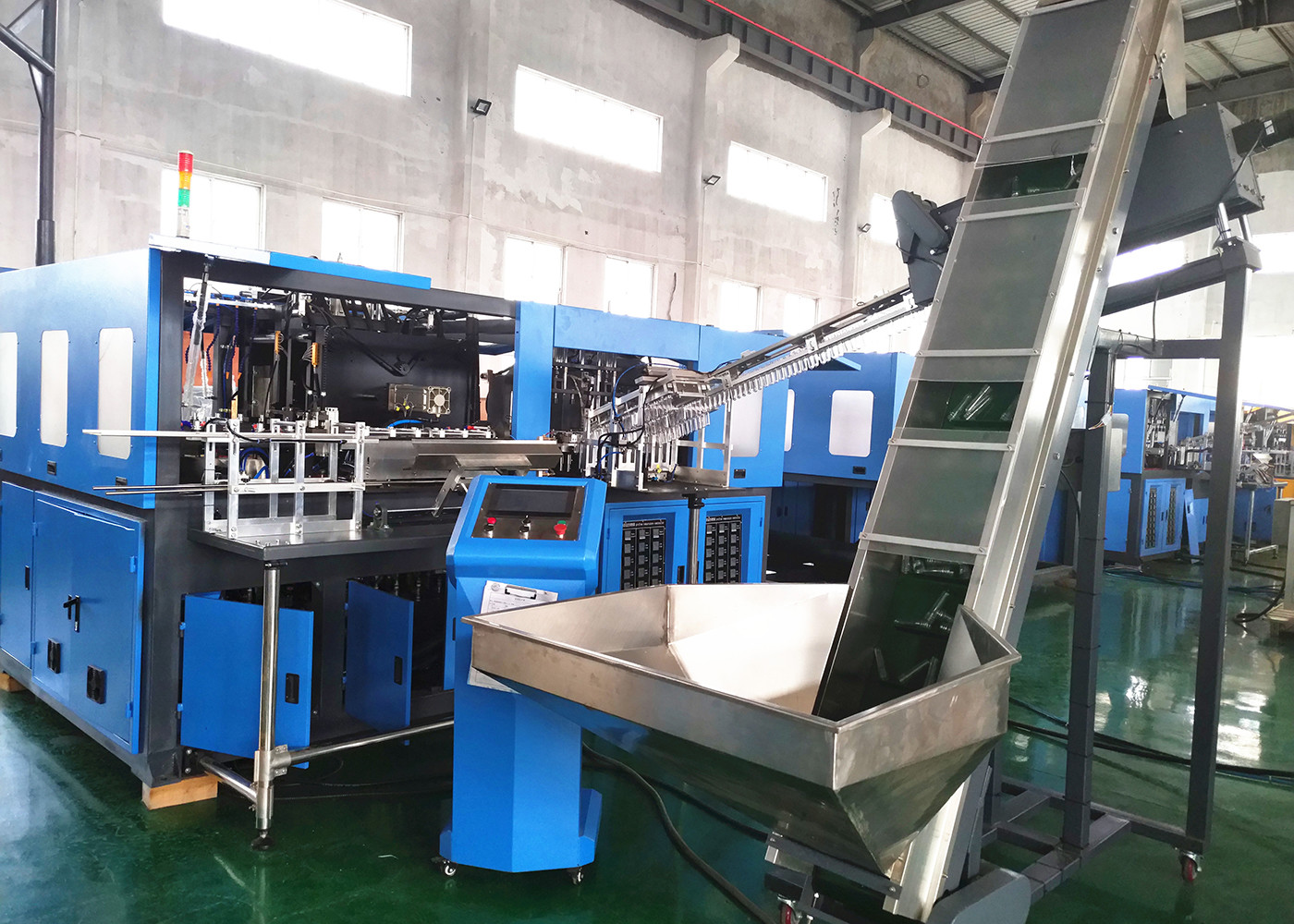

Full Automatic Pet Bottle Blowing Machine Capacity 4800BPH - 5500BPH Low Noise

Full Automatic Pet Bottle Blowing Machine Capacity 4800BPH - 5500BPH Low Noise

Full Automatic Pet Bottle Blowing Machine Capacity 4800BPH - 5500BPH Low Noise

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Sunswell
Certification: CE SGS
Model Number: SSW-6000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 60 days after receiving down payment
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Product Name: Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,Automatic Blowing Molding Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
Warranty: 1 Year Plastic Processed: PET
Blow Moulding Type: Stretch Blow Moulding Use: Making PET Bottle
Machine Type: Full Automatic Blowing Machine Key Words: Blow Molding Machine,PET Stretch Bottle Blowing Molding Machine
Automatic: Yes Voltage: Customized



Full Automatic Plastic Bottle 6 Cavity Blowing Machine with Capacity 4800BPH-5500BPH



Introduction



This model of fully automatic rotary blow molding machinery is specially designed for high speed based on absorbing all international latest technology, it is mainly used in producing pure water bottle and carbonated soft drink bottle. With reasonable construct, less area taking, less utility consumption, stable capacity, it meets national food safety requirements.



Configurations



Electrical components

PLC

Taiwan Delta

Cylinders

clamping cylinder

Japan SMC

touch screen

Taiwan Delta

preform-feeding flipping cylinder

Japan SMC

relay

France Schneider

bottle-takeout flipping cylinder

Japan SMC

circuit breaker

France Schneider

slide cylinder

Japan SMC

air switch

France Schneider

heating cylinder

Japan SMC

start button

France Schneider

preform-separating cylinder

Japan SMC

two-position switch

France Schneider

manipulator cylinder

Japan SMC

scram button

France Schneider

bottle die cylinder

Japan SMC

power supply

France Schneider



proximity switch

France Schneider

Valves

high pressure blowing valve

USA PARKER

photoelectric switch

France Schneider

high pressure exhaust valve

USA PARKER

Air Filtration

low pressure oil-water separator

Germany FESTO



3 In 1

high pressure one-way valve

Germany FESTO

low pressure press-regulating valve

low pressure muffler

Japan SMC

low pressure lubricator

high pressure muffler

USA ALWITCO



low pressure operating valve

Japan SMC



Specifications



Output

up to bottle shape

4800-5500bph

Power

power voltage

3Phase

380v/50HZ

Finished Bottle

bottle body diameter

30mm-110mm

installed power / actual power

72kw/22kw

bottle height

50mm-320mm

Air Source

high pressure air compressor

6.4m3/min 3.0MPa

bottle neck diameter

18mm-38mm

Low pressure air compressor

3.0m3/min 1.0MPa

Mold

cavity 6cavity

Cooling Water

water yield

15L/min

mold thickness

180mm

Blower Dimension

length*width*height/ weight

3700*2150*2200mm/5700kg

Max. stretching distance

800*350mm

preform loader dimension

length*width*height/ weight

2350*1350*2650mm/550kg
