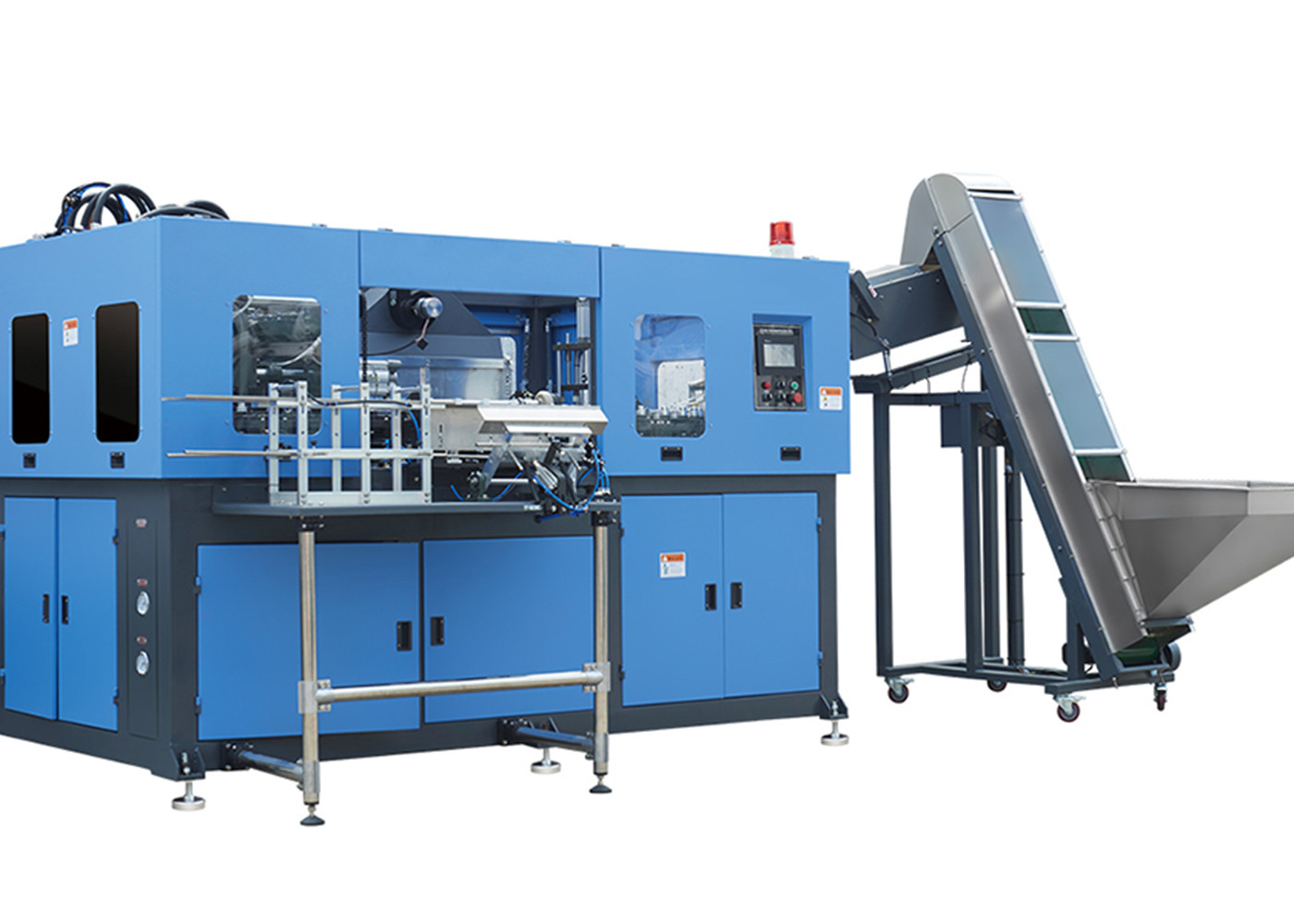

Plastic Bottle 6 Cavity Servo Automatic Blow Molding Machine For 6000BPH - 6800BPH

Plastic Bottle 6 Cavity Servo Automatic Blow Molding Machine For 6000BPH - 6800BPH

Plastic Bottle 6 Cavity Servo Automatic Blow Molding Machine For 6000BPH - 6800BPH

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Sunswell
Certification: CE SGS
Model Number: SSW-6000SF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 60 days after receiving down payment
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Product Name: Automatic PET Bottle Blowing / Plastic Stretch Blow Molding Machine,Automatic Blowing Molding Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,commissioning And Training
Blow Moulding Type: Stretch Blow Moulding Use: Making PET Bottle
Machine Type: Full Automatic Blowing Machine Key Words: Blow Molding Machine,PET Stretch Bottle Blowing Molding Machine
Automatic: Yes Voltage: Customized



6000BPH-6800BPH Full Automatic Plastic Bottle 6 Cavity Servo Blow Molding Machine

Main Features:

1. Stable performance with advanced PLC.
2. Conveying preforms automatically with conveyor.
3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared pre heater.
4. High adjustability to enable the pre heater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the pre heater with an automatic thermostatic apparatus.
5. High safeties with security automatic-locking apparatus in each mechanical action , which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
6. No contamination and low noise with the air cylinder to drive the action in stead of the oil pump.
7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the full automatic blowing machine.
8. Strong clamping force with high pressure and double crank links to lock the mold.
9. Two ways of operating: automatic and manual.
10.Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
11. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
12. Contamination is avoided for the bottle body.
13. Ideal effect of the chilling with the chilling system.
14. Easy installation and starting full automatic blowing machine
15. Low rejection rate: less than 0.2 percent.


Configurations:


Electrical components

PLC

Taiwan Delta

Cylinders

clamping cylinder

Japan SMC

touch screen

Taiwan Delta

preform-feeding flipping cylinder

Japan SMC

relay

France Schneider

bottle-takeout flipping cylinder

Japan SMC

circuit breaker

France Schneider

slide cylinder

Japan SMC

air switch

France Schneider

heating cylinder

Japan SMC

start button

France Schneider

preform-separating cylinder

Japan SMC

two-position switch

France Schneider

manipulator cylinder

Japan SMC

scram button

France Schneider

bottle die cylinder

Japan SMC

power supply

France Schneider

Valves

high pressure blowing valve

USA PARKER

proximity switch

France Schneider

high pressure exhaust valve

USA PARKER

photoelectric switch

France Schneider

high pressure one-way valve

Germany FESTO

Air Filtration

low pressure oil-water separator

Germany FESTO

3 In 1

low pressure muffler

Japan SMC

low pressure press-regulating valve

high pressure muffler

USA ALWITCO

low pressure lubricator

low pressure operating valve

Germany FESTO

Servo system

Slide Servo

Taiwan Delta

Servo system

stretching servo

Taiwan Delta


Remarks:Due to the upgrading of models, the actual configuration may be inconsistent with above form. Some parts may be replaced by other brand parts which in equivalent price and grade.
Specifications:


Output

up to bottle shape

6000-6800BPH

Power

power voltage

3Phase
380v/50HZ

Finished Bottle

bottle body diameter

30mm-110mm

installed power / actual power

78kw/22kw

bottle height

50mm-320mm

Air Source

high pressure air compressor

6.4m3/min 3.0MPa

bottle neck diameter

18mm-38mm

Low pressure air compressor

3.0m3/min 1.0MPa

Mold

cavity6cavity

Cooling Water

water yield

15L/min

mold thickness

180mm

Blower Dimension

length*width*height/ weight

3700*2150*2200mm/5700kg

Max. stretching distance

800*350mm

preform loader dimension

length*width*height/ weight

2350*1350*2650mm/550kg
