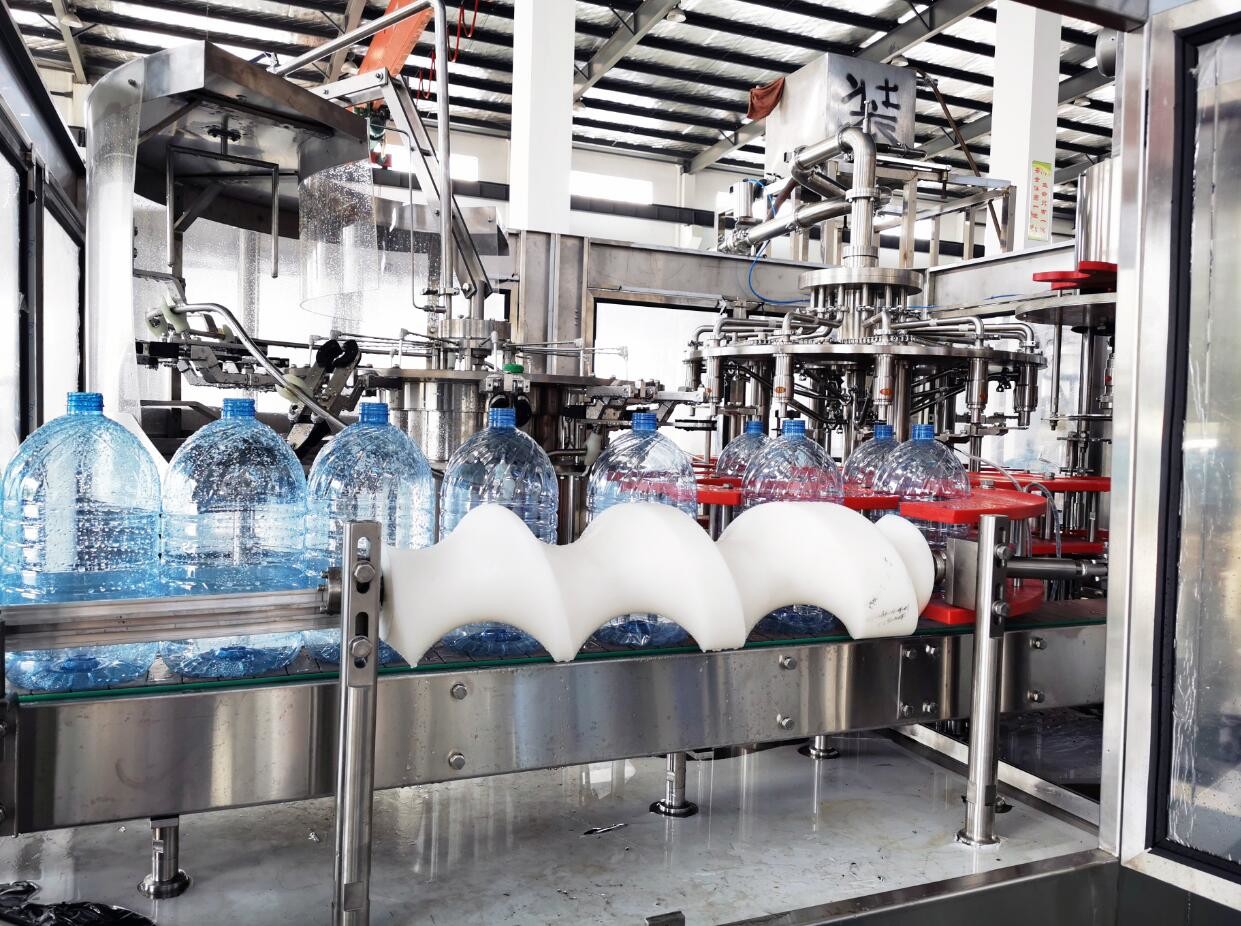

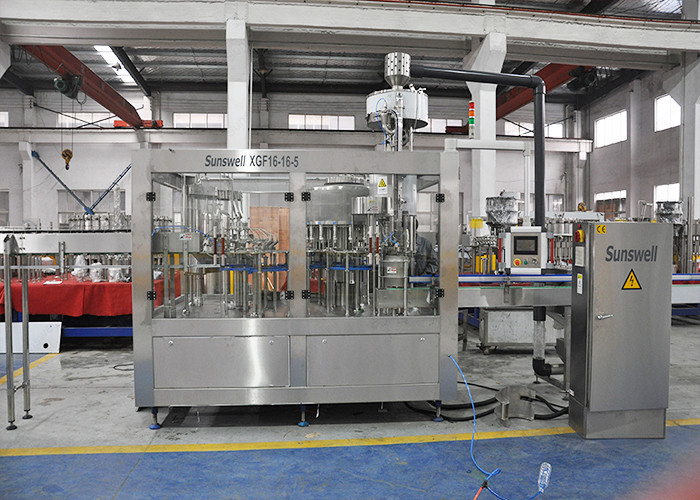

3L-15L Automatic Water Filling Machine With Rinsing Filling Capping Monoblock Machinery
Flow Chart:
A.Bottle production line PET Resin-Injection moulding machine-Bottle blowing machine-PET bottle.
B.Water treatment system Raw water-Pump-Silica sand filter-Carbon filter-Water softer-Reverse Osmosis-UV sterilizer-Ozone generator-Finished water tank.
C.Filling&Packing part Bottle unscrambler-Air conveyor-Washing,filling,capping 3 in 1 machine-Light checker-Blow dryer-Dater printer-Labeling machine-Packing machine-Stock.
General Description:
CGF series 3in1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Technical Parameters:
Model | CGF4-4-1 | CGF6-6-1 | CGF8-8-4 | CGF10-10-5 | CGF16-16-4 | CGF25-25-5 | CGF32-32-6 |
Capacity (bph/5L) |
500 | 750 | 1000 | 1200 | 2000 | 3000 | 4000 |
Main features
1. Bottle infeed
2. Rinser
The rotary wheel is a fully SUS304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
3. Filler
Rotary wheel fully made of stainless steel SUS 304.
Gravity filling method.
Filling valves are made of SUS304.
Filling valves are reasonably structured with accurate filling.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Level of cylinder is controlled with float-ball.
Filler is driven through gears inside the machine frame.
Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
4. Capper
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
5.Main configuration
Touch screen: Mitsubishi, Thinget or Weinview
PLC program controller: Mitsubishi or Omron
Inverter: Mitsubishi or Omron
Photoelectrical controller: AUTONICS
Other electrical components: Schneider
Pneumatic component: Airtac
Pump: Nanfang
