ISO Water Filling Machines With Rinsing Capping , Water Bottling Equipment

ISO Water Filling Machines With Rinsing Capping , Water Bottling Equipment

    • ISO Water Filling Machines With Rinsing Capping , Water Bottling Equipment
    • ISO Water Filling Machines With Rinsing Capping , Water Bottling Equipment
  • ISO Water Filling Machines With Rinsing Capping , Water Bottling Equipment

    Product Details:

    Place of Origin: China
    Brand Name: Sunwell
    Certification: CE,SGS,ISO
    Model Number: SUNSWELL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: nogotiable
    Packaging Details: Standard export wooden case
    Delivery Time: 45days
    Payment Terms: L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Automatic Grade: Automatic Driven Type: Electric,Mechanical,Pneumatic
    Processing Types: Gravity Pressure Filling,Mineral Water Or Pure Water,Automatic Bottle Filling Sealing Machine,Spring Water Filling Material: Mineral Water,pure Water,Pure/Mineral Water
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts Warranty: 12 Months

    Bottle water filling machine sellers in sri lanka with rinsing capping


    General Description:

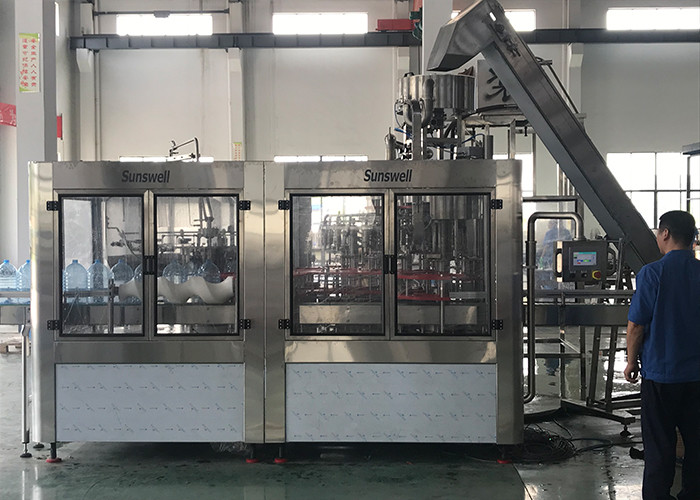

    CGF series 3in1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.



    Technical Parameters:

    Model CGF4-4-1 CGF6-6-1 CGF8-8-4 CGF10-10-5 CGF16-16-4 CGF25-25-5 CGF32-32-6

    Capacity

    (bph/5L)

    500 750 1000 1200 2000 3000 4000


    Main features
     1. Bottle infeed
    ISO Water Filling Machines With Rinsing Capping , Water Bottling Equipment
    2. Rinser
    ISO Water Filling Machines With Rinsing Capping , Water Bottling Equipment
    The rotary wheel is a fully SUS304 stainless steel welded structure.
    The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
    The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
    All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
    The rinser is driven by driving system positioned inside machine frame via gear transmission.

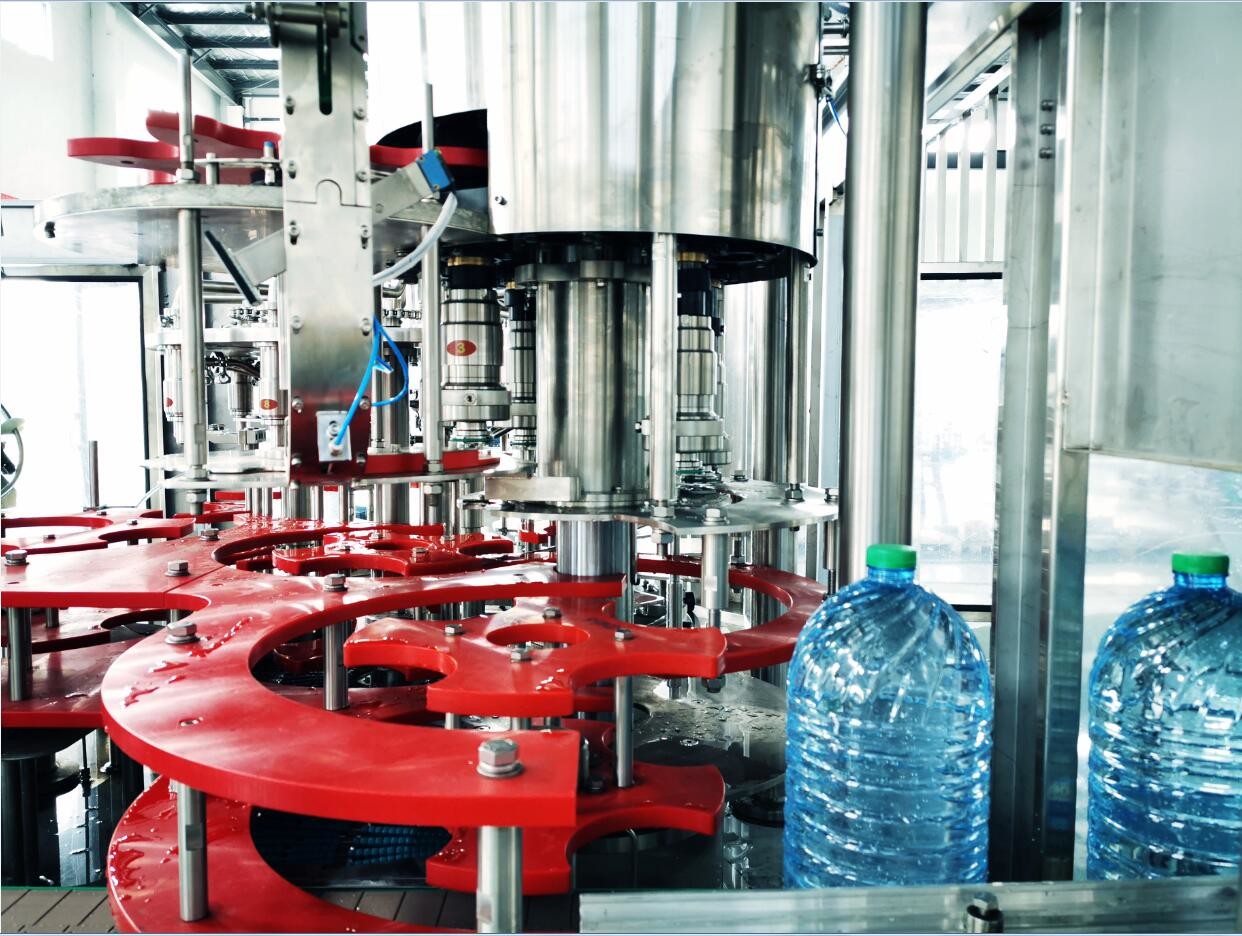

    3. Filler
    ISO Water Filling Machines With Rinsing Capping , Water Bottling Equipment

    Rotary wheel fully made of stainless steel SUS 304.

    Gravity filling method.

    Filling valves are made of SUS304.

    Filling valves are reasonably structured with accurate filling.

    Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

    Level of cylinder is controlled with float-ball.

    Filler is driven through gears inside the machine frame.

    Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.





    4. Capper

    ISO Water Filling Machines With Rinsing Capping , Water Bottling Equipment

    Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.

    The capper is equipped with inlet bottle detection switch.



    Centrifugal way of cap arranging is adopted to reduce damage of caps.



    5.Main configuration



    Touch screen: Mitsubishi, Thinget or Weinview
    PLC program controller: Mitsubishi or Omron
    Inverter: Mitsubishi or Omron
    Photoelectrical controller: AUTONICS
    Other electrical components: Schneider
    Pneumatic component: Airtac
    Pump: Nanfang



    ISO Water Filling Machines With Rinsing Capping , Water Bottling Equipment
