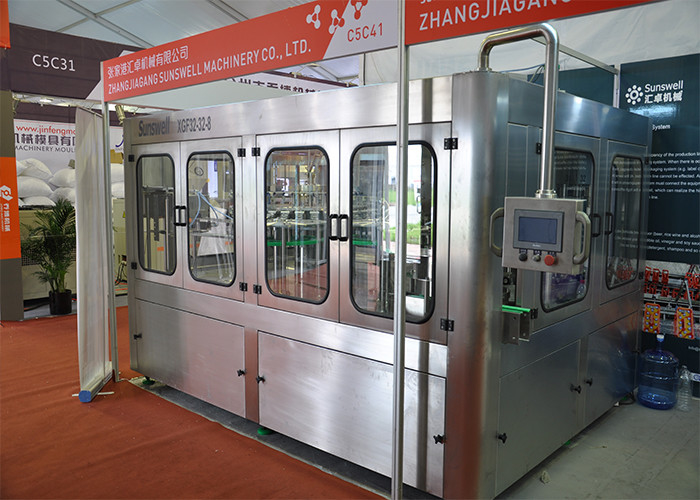

CE SGS ISO Mineral Water Filling Machines Pure Water Bottling Machine

CE SGS ISO Mineral Water Filling Machines Pure Water Bottling Machine

    • CE SGS ISO Mineral Water Filling Machines Pure Water Bottling Machine
    • CE SGS ISO Mineral Water Filling Machines Pure Water Bottling Machine
  • CE SGS ISO Mineral Water Filling Machines Pure Water Bottling Machine

    Product Details:

    Place of Origin: China
    Brand Name: Sunwell
    Certification: CE,SGS,ISO
    Model Number: SUNSWELL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: Standard export wooden case
    Delivery Time: 45days
    Payment Terms: L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Name: CE SGS ISO Mineral Water Filling Machine Pure Water Bottling Machine Automatic Grade: Automatic
    Driven Type: Electric,Mechanical,Pneumatic Voltage: Can Be Designed
    Processing Types: Gravity Pressure Filling,Mineral Water Or Pure Water,Automatic Bottle Filling Sealing Machine,Spring Water Filling Material: Mineral Water,pure Water,Pure/Mineral Water
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts Warranty: 12 Months
    High Light:

    water filling equipment

    ,

    pet bottle filling machine



    CE SGS ISO mineral water filling machine pure water bottling machine


    General Description:

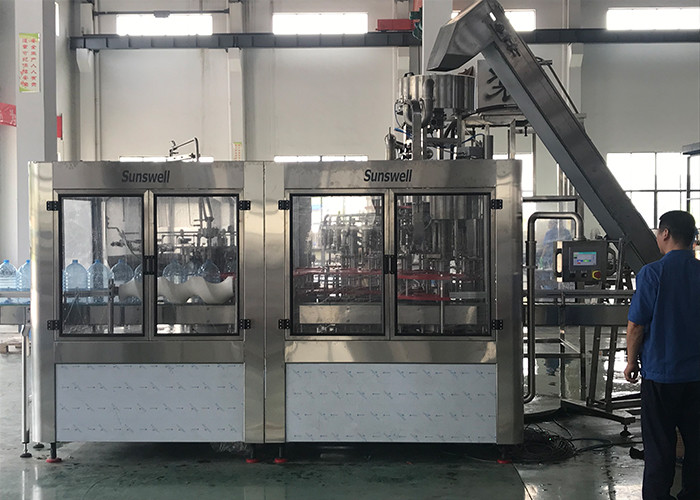

    This Automatic Monobloc Mineral Water Bottling Plant/Production Line adopts bottle neck holding transmission technology to realize fully automatic rinsing,filling and capping.Most elements of the electrical system employ famous brand advanced products.Each machine element that contacts with the liquid is made of high quality stainless steel.They obtain the advantages of good abrasive resistance,high stability,low failure rate,etc The quality of the equipment reaches the international advanced level



    Characteristics :
    1.Using the wind sent access and move wheel in the bottle directly connected technology;Canceled screw and conveyor chains,this enable the change the bottle-shaped become easier.
    2.Bottles transmission adopt clip bottleneck technology,bottle-shaped transform not need to adjust the equipment level,only change relater the curved plate,wheel and nylon parts is enough.
    3.The specially designed stainless steel bottle washing machine clip is solid and durable,no touch with the screw location of bottle mouth to avoid secondary pollution.
    4.High-speed large gravity flow valve filling valve,filling fast,filling accurate and no liquid lose.
    5.Spiraling decline when output bottle,transform bottle shape shape no need to adjust the height of conveyor chains.
    6.Host adopt advanced PLC automatic control technology,the key electrical components from famous company such as Japan,France Schneider





    Technical Parameters:

    Model CGF4-4-1 CGF6-6-1 CGF8-8-4 CGF10-10-5 CGF16-16-4 CGF25-25-5 CGF32-32-6

    Capacity

    (bph/5L)

    500 750 1000 1200 2000 3000 4000


    Main features:
     1. Bottle infeed
    CE SGS ISO Mineral Water Filling Machines Pure Water Bottling Machine 0
    2. Rinser
    CE SGS ISO Mineral Water Filling Machines Pure Water Bottling Machine 1
    The rotary wheel is a fully SUS304 stainless steel welded structure.
    The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
    The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
    All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
    The rinser is driven by driving system positioned inside machine frame via gear transmission.



    3. Filler
    CE SGS ISO Mineral Water Filling Machines Pure Water Bottling Machine 2

    Rotary wheel fully made of stainless steel SUS 304.

    Gravity filling method.

    Filling valves are made of SUS304.

    Filling valves are reasonably structured with accurate filling.

    Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

    Level of cylinder is controlled with float-ball.

    Filler is driven through gears inside the machine frame.

    Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.





    4. Capper

    CE SGS ISO Mineral Water Filling Machines Pure Water Bottling Machine 3

    Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.

    The capper is equipped with inlet bottle detection switch.



    Centrifugal way of cap arranging is adopted to reduce damage of caps.



    5.Main configuration



    Touch screen: Mitsubishi, Thinget or Weinview
    PLC program controller: Mitsubishi or Omron
    Inverter: Mitsubishi or Omron
    Photoelectrical controller: AUTONICS
    Other electrical components: Schneider
    Pneumatic component: Airtac
    Pump: Nanfang



    CE SGS ISO Mineral Water Filling Machines Pure Water Bottling Machine 4
