Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunwell |
| Certification: | CE,SGS,ISO |
| Model Number: | SUNSWELL |
| Minimum Order Quantity: | 1 set |
| Price: | nogotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets per year |
| Condition: | New | Type: | Filling Machine |
|---|---|---|---|
| Driven Type: | Electric,Mechanical,Pneumatic | Voltage: | Can Be Designed |
| Processing Types: | Gravity Pressure Filling,Mineral Water Or Pure Water,Automatic Bottle Filling Sealing Machine,Spring Water | Filling Material: | Mineral Water,pure Water,Pure/Mineral Water |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts | Warranty: | 12 Months |
| Highlight: | water filling equipment,pet bottle filling machine |
||

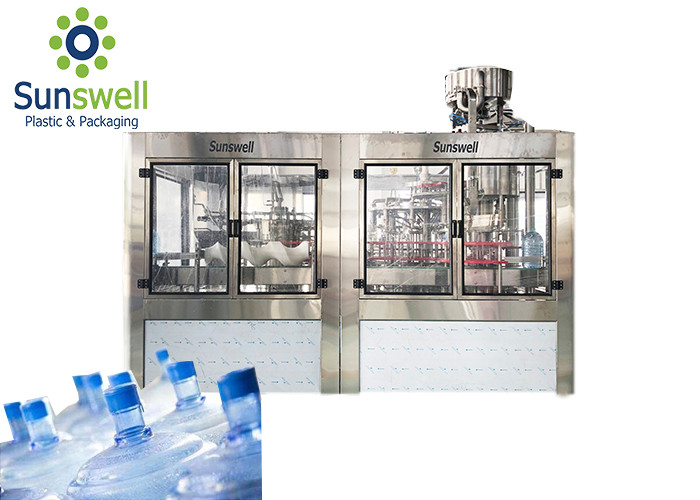

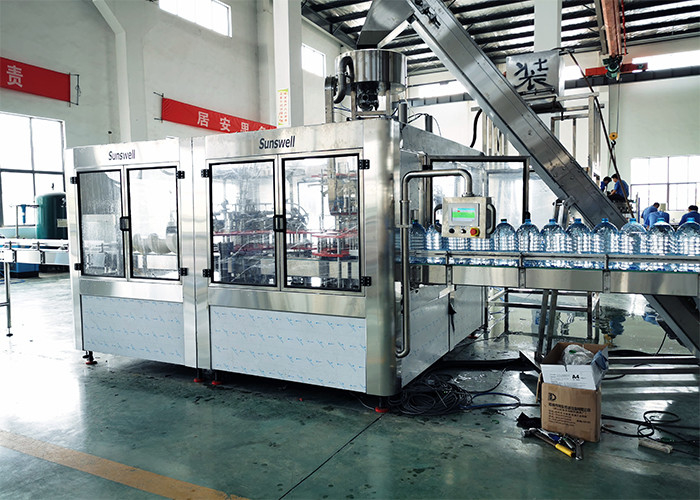

Full Automatic Rotary Pet Bottle Mineral Water Rinsing Washing Filling and Capping Machine
General Description:
CGF series 3in1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Characteristic of 5 gallon water bottling line:
1. With 3pcs 304stainless tanks inside the machine, the washing water is circular using.
2. Material of machine frame and body: All 304 Stainless Steel
3. PLC controlling system, all full-automatic working
4. With AirTAE brand air cylinder, F. R. L. Combination and Electromagnetism valve for air cylinder.
5. Washing Water pump: 4pcs, Filling Water Pump 1pc, Nan fang brand with CE, 304stainless steel pump.
6. With 2 insert type filling nozzle, with caps arranger system
7. All the pipeline is Food Grade 304stainless steel pipeline, fine polish
8. The machine have auto bottles loading system and share one inlet conveyer belt with the Brush washing internal bottles machine, Brush washing external bottles machine.
9. No bottle no filling, no bottle no capping, bottle jam automatic stop, filling volume adjustable
Technical Parameters:
| Model | CGF4-4-1 | CGF6-6-1 | CGF8-8-4 | CGF10-10-5 | CGF16-16-4 | CGF25-25-5 | CGF32-32-6 |
|
Capacity (bph/5L) |
500 | 750 | 1000 | 1200 | 2000 | 3000 | 4000 |
Main features
1. Bottle infeed
2. Rinser
The rotary wheel is a fully SUS304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
3. Filler
Rotary wheel fully made of stainless steel SUS 304.
Gravity filling method.
Filling valves are made of SUS304.
Filling valves are reasonably structured with accurate filling.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Level of cylinder is controlled with float-ball.
Filler is driven through gears inside the machine frame.
Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
4. Capper
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
5.Main configuration
Touch screen: Mitsubishi, Thinget or Weinview
PLC program controller: Mitsubishi or Omron
Inverter: Mitsubishi or Omron
Photoelectrical controller: AUTONICS
Other electrical components: Schneider
Pneumatic component: Airtac
Pump: Nanfang
