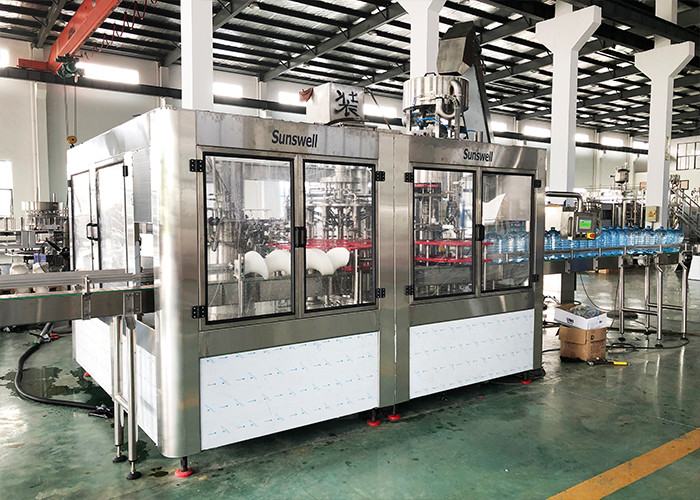

Cgf Model Full Automatic Mineral Pure Water Filling Plant Rinsing Capping Machine

Cgf Model Full Automatic Mineral Pure Water Filling Plant Rinsing Capping Machine

    • Cgf Model Full Automatic Mineral Pure Water Filling Plant Rinsing Capping Machine
    • Cgf Model Full Automatic Mineral Pure Water Filling Plant Rinsing Capping Machine
  • Cgf Model Full Automatic Mineral Pure Water Filling Plant Rinsing Capping Machine

    Product Details:

    Place of Origin: China
    Brand Name: Sunwell
    Certification: CE,SGS,ISO
    Model Number: SUNSWELL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: nogotiable
    Packaging Details: Standard export wooden case
    Delivery Time: 45days
    Payment Terms: L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Filling Material: Mineral Water,pure Water,Pure/Mineral Water Processing Types: Gravity Pressure Filling,Mineral Water Or Pure Water,Automatic Bottle Filling Sealing Machine,Spring Water
    Voltage: 220V/380V,50Hz-60Hz Packaging Type: Bottles,Barrel
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts Warranty: 12 Months
    High Light:

    water filling equipment

    ,

    pet bottle filling machine



    Cgf Model Full Automatic Mineral Pure Water Rinsing Filling Capping Machine

    Specifications:
    Material: SUS304 or SUS316
    Control: PLC+Touch screen
    Bottle volume: 3-5L
    Advantages: automaitc control, high speed, easy operation

    Features:
    i. This machine has speed regulating motor so that the production capacity can be adjusted according to customer requirement easily.
    ii. Fixed structure, impeccable controlling system and easily for operating and maintain.
    iii. All our filling accessory have been well polished, and have nice appearance , fast filling speed, without any leakage;
    iv. When change the bottles, only need to change the starwheel and guide plate, no other machine accessory need to change.

    Function:

    (1) The water bottling machine has three functions for bottle rinsing, filling and capping, which are composed in one body of the machine . The whole process is full automatic.
    (2) This machine is used in filling mineral water, drinking water, flavor water, etc. in bottles made of polyester and plastics .
    (3) The filling packaging operation is faster and more stable because the micro pressure filling operation of the new type is adopted . There the output and benefit of the machine is higher than the machinery of the same specifications .

    Technical Parameters:

    Model CGF4-4-1 CGF6-6-1 CGF8-8-4 CGF10-10-5 CGF16-16-4 CGF25-25-5 CGF32-32-6

    Capacity

    (bph/5L)

    500 750 1000 1200 2000 3000 4000


    Main features
     1. Bottle infeed
    Cgf Model Full Automatic Mineral Pure Water Filling Plant Rinsing Capping Machine 0
    2. Rinser
    Cgf Model Full Automatic Mineral Pure Water Filling Plant Rinsing Capping Machine 1
    The rotary wheel is a fully SUS304 stainless steel welded structure.
    The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
    The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
    All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
    The rinser is driven by driving system positioned inside machine frame via gear transmission.



    3. Filler
    Cgf Model Full Automatic Mineral Pure Water Filling Plant Rinsing Capping Machine 2

    Rotary wheel fully made of stainless steel SUS 304.

    Gravity filling method.

    Filling valves are made of SUS304.

    Filling valves are reasonably structured with accurate filling.

    Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

    Level of cylinder is controlled with float-ball.

    Filler is driven through gears inside the machine frame.

    Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.





    4. Capper

    Cgf Model Full Automatic Mineral Pure Water Filling Plant Rinsing Capping Machine 3

    Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.

    The capper is equipped with inlet bottle detection switch.



    Centrifugal way of cap arranging is adopted to reduce damage of caps.



    5.Main configuration



    Touch screen: Mitsubishi, Thinget or Weinview
    PLC program controller: Mitsubishi or Omron
    Inverter: Mitsubishi or Omron
    Photoelectrical controller: AUTONICS
    Other electrical components: Schneider
    Pneumatic component: Airtac
    Pump: Nanfang



    Cgf Model Full Automatic Mineral Pure Water Filling Plant Rinsing Capping Machine 4
