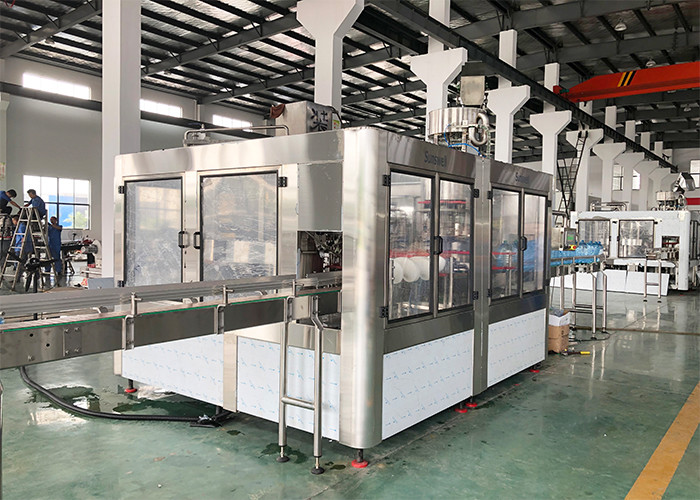

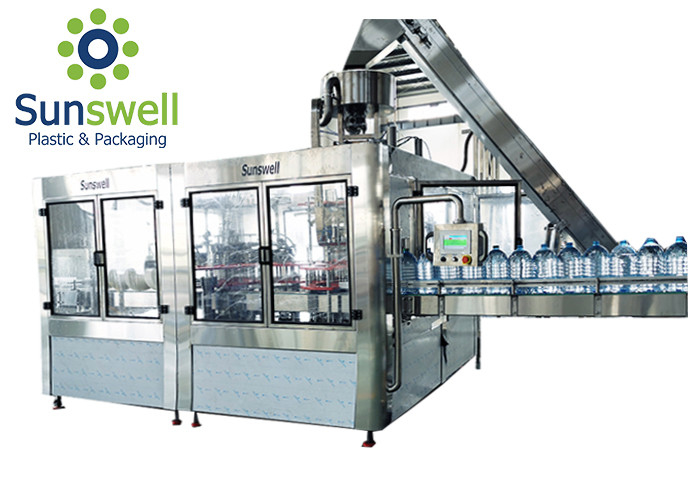

3 In 1 Monoblock Liquid Drinking Water Filling Machine For Pet Bottle

3 In 1 Monoblock Liquid Drinking Water Filling Machine For Pet Bottle

    • 3 In 1 Monoblock Liquid Drinking Water Filling Machine For Pet Bottle
    • 3 In 1 Monoblock Liquid Drinking Water Filling Machine For Pet Bottle
  • 3 In 1 Monoblock Liquid Drinking Water Filling Machine For Pet Bottle

    Product Details:

    Place of Origin: China
    Brand Name: Sunwell
    Certification: CE,SGS,ISO
    Model Number: SUNSWELL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: nogotiable
    Packaging Details: Standard export wooden case
    Delivery Time: 45days
    Payment Terms: L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Name: Automatic Liquid Filling Machine Filling Material: Mineral Water,pure Water,Pure/Mineral Water
    Automatic Grade: Automatic Voltage: 220V/380V,50Hz-60Hz
    Packaging Type: Bottles,Barrel Processing Types: Gravity Pressure Filling,Mineral Water Or Pure Water,Automatic Bottle Filling Sealing Machine,Spring Water
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts Warranty: 12 Months

    3 in 1 Monoblock Liquid Pet Bottle Mineral Pure Drinking Water Washing Rinsing Bottling Filling Capping Plant


    General Description:


    This Water Filling Machine is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit: Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficienc



    Flow chart: (Pure water filling machine):
    A)Bottle production line PET Resin --Injection moulding machine -Botlte blowing machine --PET bottle
    B)Water treatment system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank
    C)Filling&Packing part Bottle unscrambler--Air conveyor--Washing,filling,capping 3in1 machine--Light checker--Blow dryer--Dater printer--Lableing machine --Packing machine -Stock



    Technical Parameters:

    Model CGF4-4-1 CGF6-6-1 CGF8-8-4 CGF10-10-5 CGF16-16-4 CGF25-25-5 CGF32-32-6

    Capacity

    (bph/5L)

    500 750 1000 1200 2000 3000 4000


    Main features
     1. Bottle infeed
    3 In 1 Monoblock Liquid Drinking Water Filling Machine For Pet Bottle
    2. Rinser
    3 In 1 Monoblock Liquid Drinking Water Filling Machine For Pet Bottle
    The rotary wheel is a fully SUS304 stainless steel welded structure.
    The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
    The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
    All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
    The rinser is driven by driving system positioned inside machine frame via gear transmission.



    3. Filler
    3 In 1 Monoblock Liquid Drinking Water Filling Machine For Pet Bottle

    Rotary wheel fully made of stainless steel SUS 304.

    Gravity filling method.

    Filling valves are made of SUS304.

    Filling valves are reasonably structured with accurate filling.

    Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

    Level of cylinder is controlled with float-ball.

    Filler is driven through gears inside the machine frame.

    Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.





    4. Capper

    3 In 1 Monoblock Liquid Drinking Water Filling Machine For Pet Bottle

    Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.

    The capper is equipped with inlet bottle detection switch.



    Centrifugal way of cap arranging is adopted to reduce damage of caps.



    5.Main configuration



    Touch screen: Mitsubishi, Thinget or Weinview
    PLC program controller: Mitsubishi or Omron
    Inverter: Mitsubishi or Omron
    Photoelectrical controller: AUTONICS
    Other electrical components: Schneider
    Pneumatic component: Airtac
    Pump: Nanfang



    3 In 1 Monoblock Liquid Drinking Water Filling Machine For Pet Bottle
