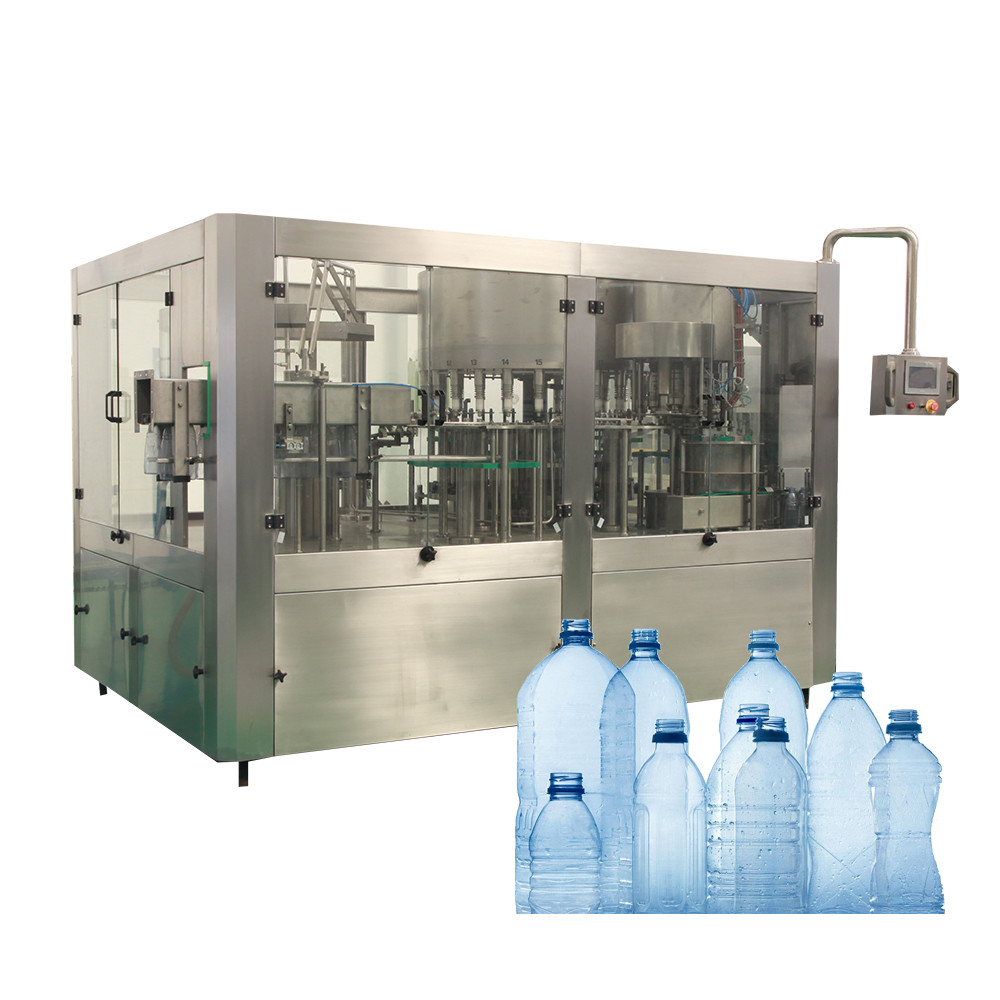

Auto Spring Water Filling Machines Bottling Rinsing Filler Capping And Packing

Auto Spring Water Filling Machines Bottling Rinsing Filler Capping And Packing

    • Auto Spring Water Filling Machines Bottling Rinsing Filler Capping And Packing
    • Auto Spring Water Filling Machines Bottling Rinsing Filler Capping And Packing
  • Auto Spring Water Filling Machines Bottling Rinsing Filler Capping And Packing

    Product Details:

    Place of Origin: China
    Brand Name: Sunwell
    Certification: CE,SGS,ISO
    Model Number: SUNSWELL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: nogotiable
    Packaging Details: Standard export wooden case
    Delivery Time: 45days
    Payment Terms: L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Packaging Type: Bottles,Barrel Voltage: 220V/380V,50Hz-60Hz
    Processing Types: Gravity Pressure Filling,Mineral Water Or Pure Water,Automatic Bottle Filling Sealing Machine,Spring Water Filling Material: Mineral Water,pure Water,Pure/Mineral Water
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts Warranty: 12 Months



    Automatic Spring Water Bottling Rinsing Filler Capping and Packing Manufacturing Machine Cost


    General Description:

    CGF series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water.  Every machine is consisted of rinser, filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The whole production line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output.



    Technical Parameters:

    Model CGF4-4-1 CGF6-6-1 CGF8-8-4 CGF10-10-5 CGF16-16-4 CGF25-25-5 CGF32-32-6

    Capacity

    (bph/5L)

    500 750 1000 1200 2000 3000 4000



    Mostly electric components are adopt Siemens, OMRON etc famous company. Electric component adopt import Air TAC famous brand product. The machine is advanced in construction, occupying small area, steady in performance, high in produce efficiency, high in automatization degree. Easy in operation, which integrates machinery, electricity and pneumatics technologies together into one unit full automatic barreling machine.


    Main features
     1. Bottle infeed
    Auto Spring Water Filling Machines Bottling Rinsing Filler Capping And Packing
    2. Rinser
    Auto Spring Water Filling Machines Bottling Rinsing Filler Capping And Packing
    The rotary wheel is a fully SUS304 stainless steel welded structure.
    The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
    The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
    All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
    The rinser is driven by driving system positioned inside machine frame via gear transmission.

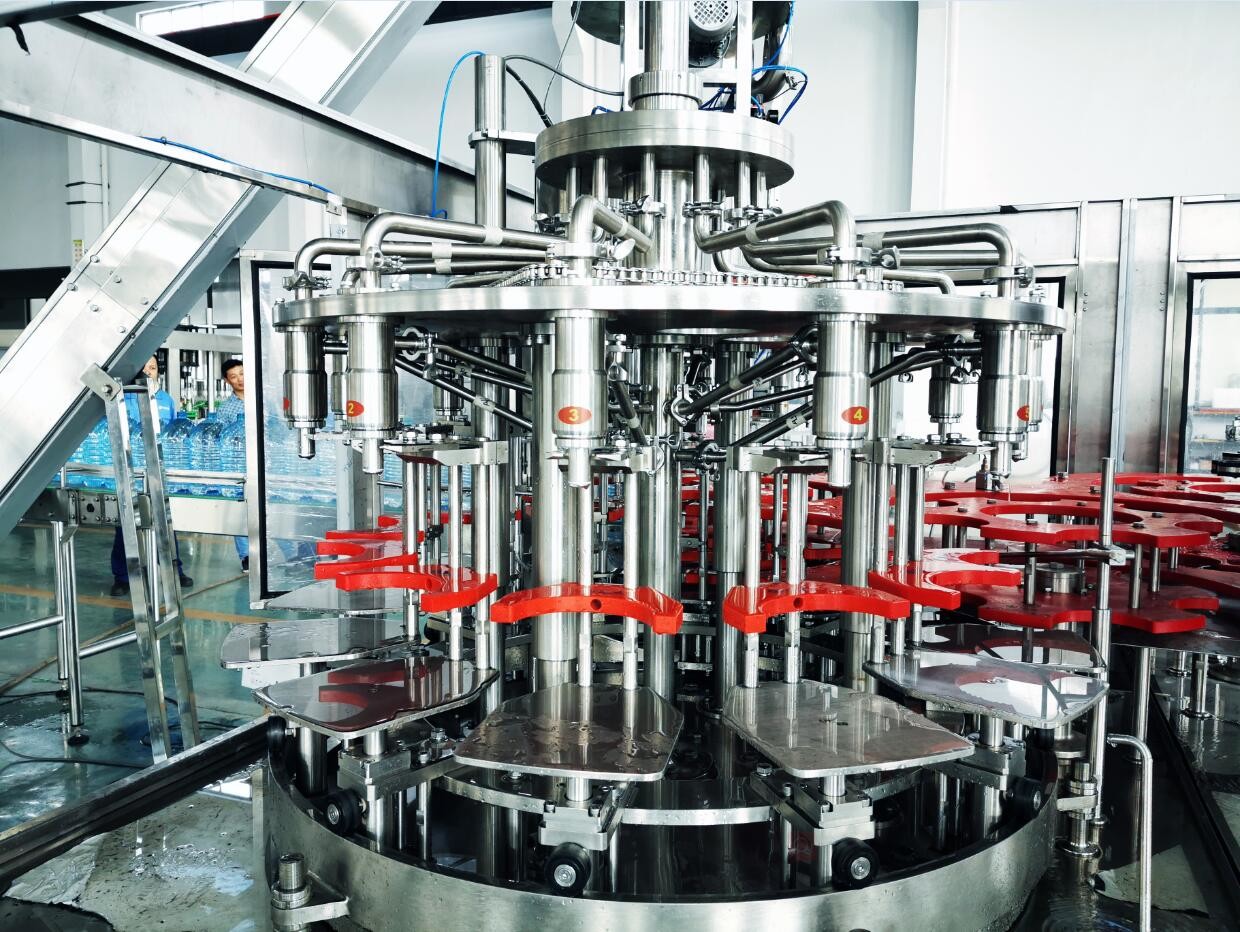

    3. Filler
    Auto Spring Water Filling Machines Bottling Rinsing Filler Capping And Packing

    Rotary wheel fully made of stainless steel SUS 304.

    Gravity filling method.

    Filling valves are made of SUS304.

    Filling valves are reasonably structured with accurate filling.

    Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

    Level of cylinder is controlled with float-ball.

    Filler is driven through gears inside the machine frame.

    Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.





    4. Capper

    Auto Spring Water Filling Machines Bottling Rinsing Filler Capping And Packing

    Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.

    The capper is equipped with inlet bottle detection switch.



    Centrifugal way of cap arranging is adopted to reduce damage of caps.



    5.Main configuration



    Touch screen: Mitsubishi, Thinget or Weinview
    PLC program controller: Mitsubishi or Omron
    Inverter: Mitsubishi or Omron
    Photoelectrical controller: AUTONICS
    Other electrical components: Schneider
    Pneumatic component: Airtac
    Pump: Nanfang



    Auto Spring Water Filling Machines Bottling Rinsing Filler Capping And Packing
