|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard export wooden case|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100sets per year|
|Automatic Grade:||Automatic||Driven Type:||Electric,Mechanical,Pneumatic|
|Voltage:||220V/380V,50Hz-60Hz||Processing Types:||Gravity Pressure Filling,Mineral Water Or Pure Water,Automatic Bottle Filling Sealing Machine,Spring Water|
|Filling Material:||Mineral Water,pure Water,Pure/Mineral Water||After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts|

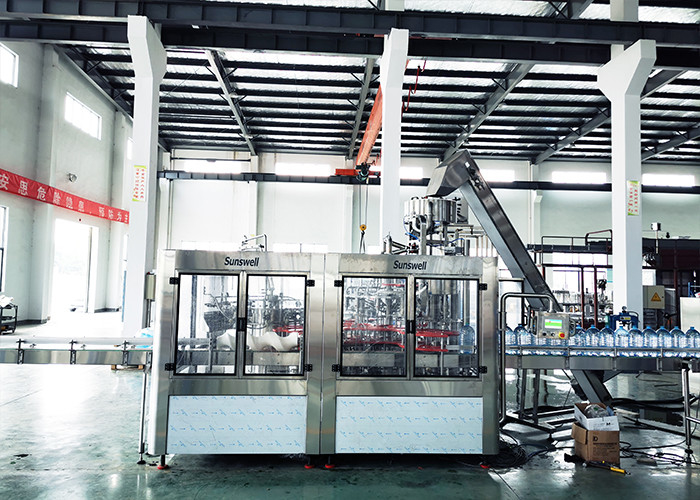

Automatic Glass Bottle Rinsing Filler Capping and Packing Machine Cost
Material: SUS304 or SUS316
Control: PLC+Touch screen
Capacity: 500-1000 BPH
Bottle volume: 3-18L
Advantages: automaitc control, high speed, easy operation
i. This machine has speed regulating motor so that the production capacity can be adjusted according to customer requirement easily.
ii. Fixed structure, impeccable controlling system and easily for operating and maintain.
iii. All our filling accessory have been well polished, and have nice appearance , fast filling speed, without any leakage;
iv. When change the bottles, only need to change the starwheel and guide plate, no other machine accessory need to change.
We can totally produce according to your requirement!

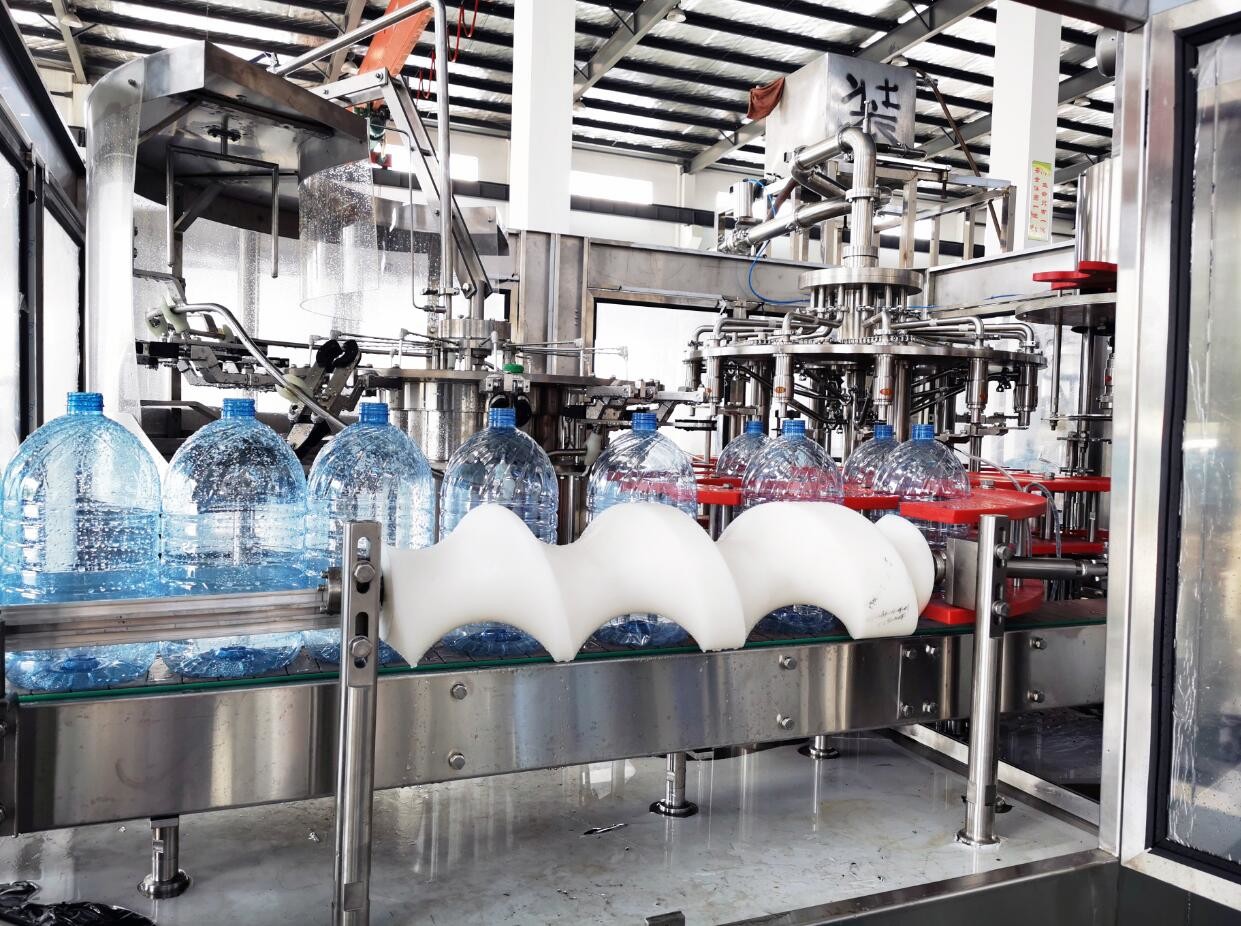

1. Bottle infeed
The rotary wheel is a fully SUS304 stainless steel welded structure.

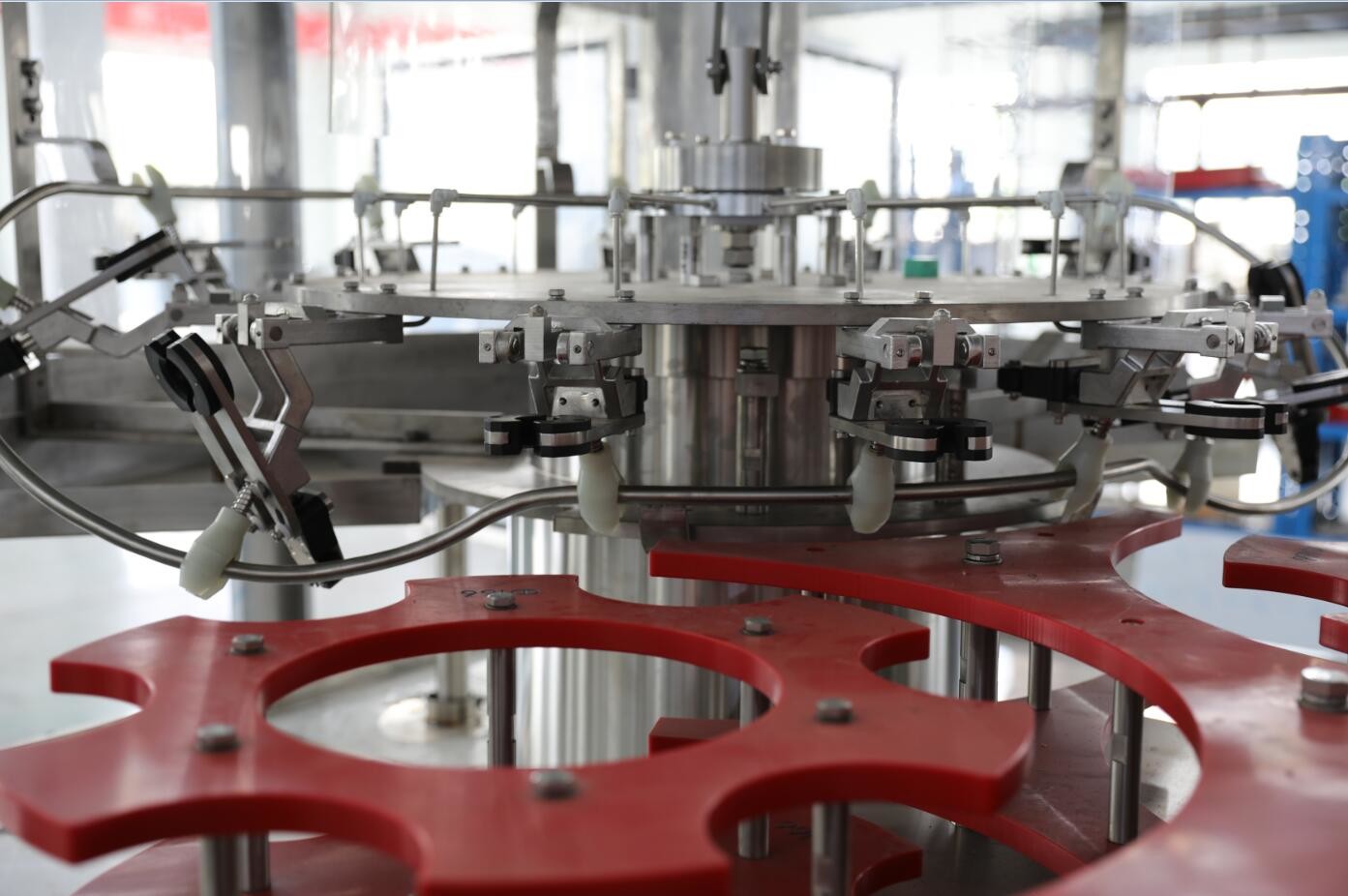

The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Rotary wheel fully made of stainless steel SUS 304.
Gravity filling method.
Filling valves are made of SUS304.
Filling valves are reasonably structured with accurate filling.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Level of cylinder is controlled with float-ball.
Filler is driven through gears inside the machine frame.

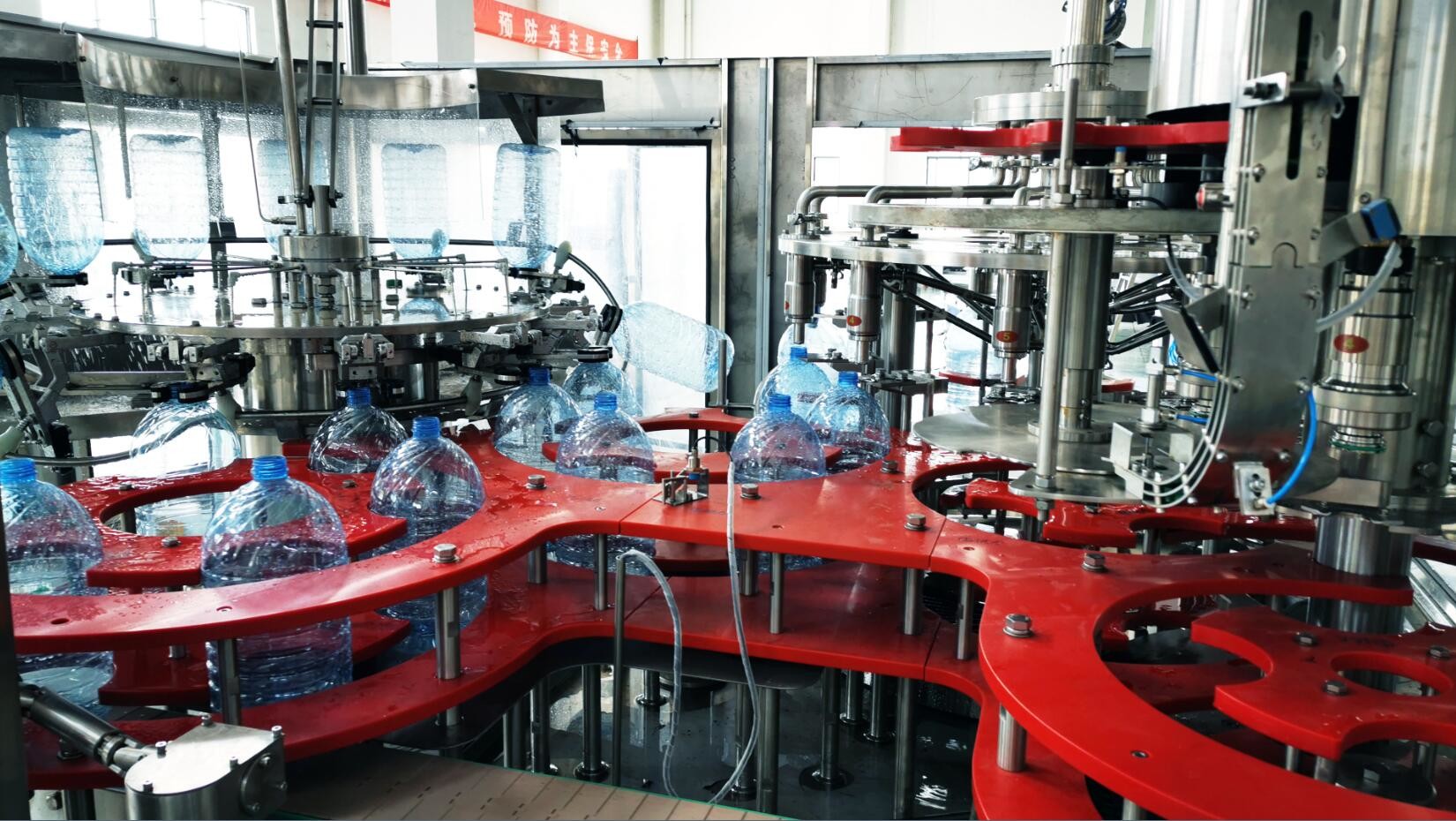

Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
Touch screen: Mitsubishi, Thinget or Weinview
PLC program controller: Mitsubishi or Omron
Inverter: Mitsubishi or Omron
Photoelectrical controller: AUTONICS
Other electrical components: Schneider
Pneumatic component: Airtac
Contact Person: Sam Sun
