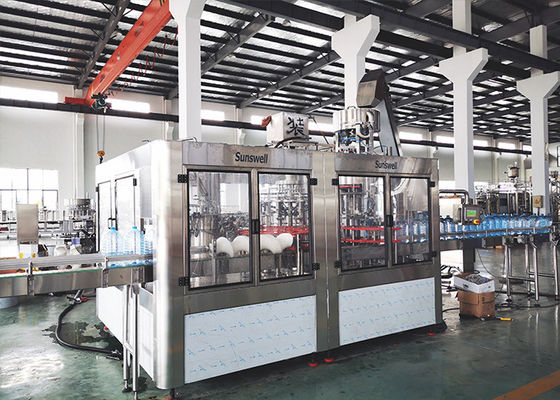

Full Automatic Water Bottle Filling Machine Mineral Water Filling Equipment For 19L

Full Automatic Water Bottle Filling Machine Mineral Water Filling Equipment For 19L

    • Full Automatic Water Bottle Filling Machine Mineral Water Filling Equipment For 19L
    • Full Automatic Water Bottle Filling Machine Mineral Water Filling Equipment For 19L
  • Full Automatic Water Bottle Filling Machine Mineral Water Filling Equipment For 19L

    Product Details:

    Place of Origin: China
    Brand Name: Sunwell
    Certification: CE,SGS,ISO
    Model Number: SUNSWELL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: nogotiable
    Packaging Details: Standard export wooden case
    Delivery Time: 45days
    Payment Terms: L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Driven Type: Electric,Mechanical,Pneumatic Voltage: 220V/380V,50Hz-60Hz
    Processing Types: Gravity Pressure Filling,Mineral Water Or Pure Water,Automatic Bottle Filling Sealing Machine,Spring Water Filling Material: Mineral Water,pure Water,Pure/Mineral Water
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts Warranty: 12 Months
    High Light:

    water filling equipment

    ,

    pet bottle filling machine

    Bottled Full Automatic Mineral Water Filling Equipment for 19L From China


    General Description:

    Flow chart :
    Automatic De-capping machine --> Automatic outside brushing machine-->Light checker-->Automatic up-loader--Automatic Bottle Washing Machine-->Barrel Filling Capping Machine-->Conveyor system-->Steam shrinking machine-->Palletizing machine

    Project Name: Complete Barrel Water Filling Machine

    Water Bottle Information
    Suitable Bottle Material
    PET / Plastic
    Suitable Bottle Shape
    Round & Square / Others
    Suitable Bottle Volume
    5l to 20l
    Water Source Information
    Suitable Raw Water Resource
    City Water
    Lake &
    River,
    Mountain Water & Underground Water,
    Suitable Final Drinking Water Type
    Mineral water
    Pure Water
    Other Function Water

    (Like Weak alkaline water)
    Packing Information
    Producing Speed Selection

    (Based on 500ml)
    150BPH, 300BPH, 600BPH, 900BPH,

    1,200BPH,1,800BPH...,2,400BPH
    Machines Material
    All material (which touch water) adopts SUS304&SUS316
    Labels Selection
    PVC & OPP & Adhesive Label …
    Date Printer Type Selection
    Ink & Laser
    Packing Type Selection
    Carton
    Film Wrap
    Carton Tray Film Wrap
    Packing Quantity
    2*3; 3*4; 4*5; 4*4; 4*6; 5*6; 6*8...
    Warranty
    12 Months After Installation
    Customer's Factory Information
    Room Temperature
    10-40 degree
    Room Humidity:
    No Dew
    Voltage Supplier
    380V, 220V, Special voltage please inform

    Main features
     1. Bottle infeed
    Full Automatic Water Bottle Filling Machine Mineral Water Filling Equipment For 19L 0
    2. Rinser
    Full Automatic Water Bottle Filling Machine Mineral Water Filling Equipment For 19L 1
    The rotary wheel is a fully SUS304 stainless steel welded structure.
    The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
    The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
    All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
    The rinser is driven by driving system positioned inside machine frame via gear transmission.



    3. Filler
    Full Automatic Water Bottle Filling Machine Mineral Water Filling Equipment For 19L 2

    Rotary wheel fully made of stainless steel SUS 304.

    Gravity filling method.

    Filling valves are made of SUS304.

    Filling valves are reasonably structured with accurate filling.

    Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

    Level of cylinder is controlled with float-ball.

    Filler is driven through gears inside the machine frame.

    Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.





    4. Capper

    Full Automatic Water Bottle Filling Machine Mineral Water Filling Equipment For 19L 3

    Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.

    The capper is equipped with inlet bottle detection switch.



    Centrifugal way of cap arranging is adopted to reduce damage of caps.



    5.Main configuration



    Touch screen: Mitsubishi, Thinget or Weinview
    PLC program controller: Mitsubishi or Omron
    Inverter: Mitsubishi or Omron
    Photoelectrical controller: AUTONICS
    Other electrical components: Schneider
    Pneumatic component: Airtac
    Pump: Nanfang



    Full Automatic Water Bottle Filling Machine Mineral Water Filling Equipment For 19L 4
