Rotary Type 3 In 1 Big Bottle Filling Machine For Non Gas Liquid With Automatic Control

Rotary Type 3 In 1 Big Bottle Filling Machine For Non Gas Liquid With Automatic Control

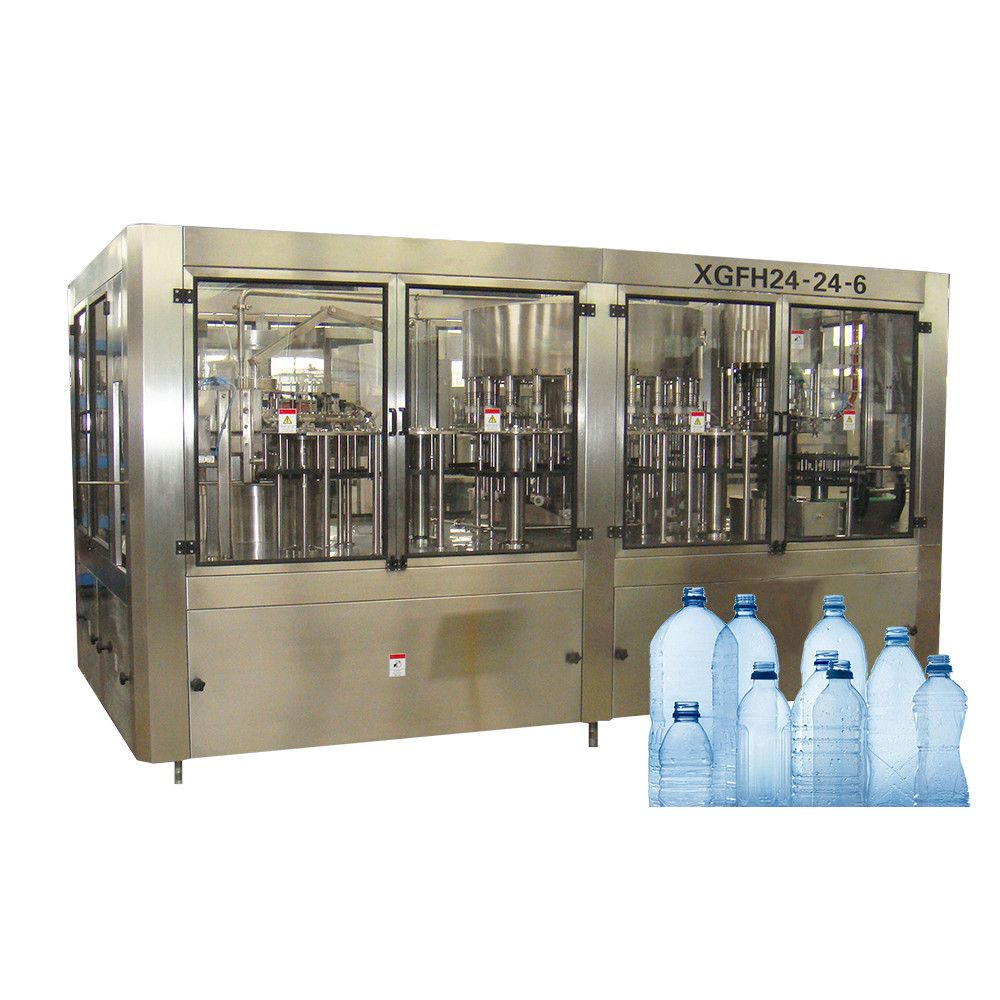

    • Rotary Type 3 In 1 Big Bottle Filling Machine For Non Gas Liquid With Automatic Control

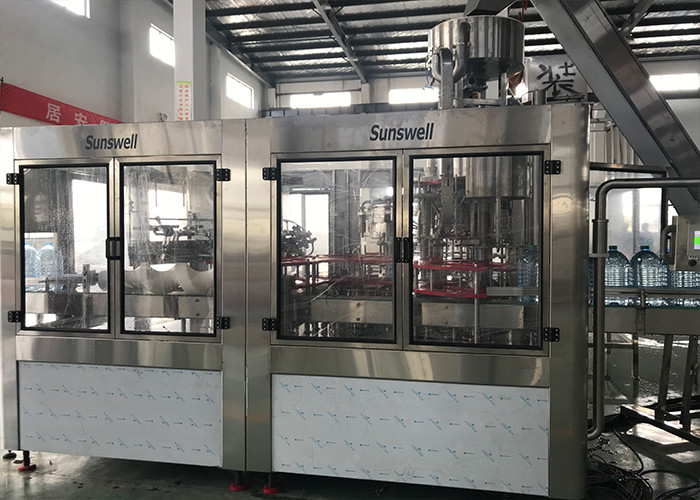

    • Rotary Type 3 In 1 Big Bottle Filling Machine For Non Gas Liquid With Automatic Control

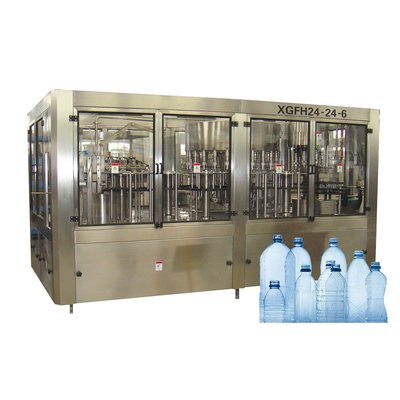

  • Rotary Type 3 In 1 Big Bottle Filling Machine For Non Gas Liquid With Automatic Control

    Product Details:

    Place of Origin: China
    Brand Name: Sunwell
    Certification: CE,SGS,ISO
    Model Number: SUNSWELL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: nogotiable
    Packaging Details: Standard export wooden case
    Delivery Time: 45days
    Payment Terms: L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Driven Type: Electric,Mechanical,Pneumatic Voltage: 220V/380V,50Hz-60Hz
    Processing Types: Gravity Pressure Filling,Mineral Water Or Pure Water,Automatic Bottle Filling Sealing Machine,Spring Water Filling Material: Mineral Water,pure Water,Pure/Mineral Water
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts Warranty: 12 Months
    High Light:

    water filling equipment

    ,

    pet bottle filling machine



    Rotary Type 3 in 1 Big Bottle Filling Machine for Non Gas Liquid With Automatic Control


    General Description:

    QGF series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water. There are 8 kinds of machines which can produce 60, 100, 150, 300, 450, 900, 1200 and 2000 5 gallon barrel drinking water per hour. Every machine is consisted of rinser, filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The whole production line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output.

    QGF barrel production line is specially used for 5 Gallon barrel drinking water. This machine integrates washing/filling/capping into one unit. It is the good ideal for produce the mineral water/distilled water/pure water equipments. Whole machine are adopt the high quality stainless steel, It's erosion proof ability is strong, easy to washing.

    TYPE QGF-100 QGF-240 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200
    Filling heads 1 2 3 4 6 8
    Barrel size(mm) Φ276x490
    Capacity(b/h) 60-100 100-240 250-300 400 600 900 1200
    Gas pressure(MPa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.6 0.6 0.6
    Gas consumption(m3/min) 0.37 0.37 0.6 0.8 1 1.5 1.8
    Motor power kw 1.38 1.75 3.8 3.8 7.5 9.75 13.5
    Rated voltage 380V/50HZ
    Weight(kg) 680 800 1500 2100 3000 3500 4500

    Main features
     1. Bottle infeed
    Rotary Type 3 In 1 Big Bottle Filling Machine For Non Gas Liquid With Automatic Control 0
    2. Rinser
    Rotary Type 3 In 1 Big Bottle Filling Machine For Non Gas Liquid With Automatic Control 1
    The rotary wheel is a fully SUS304 stainless steel welded structure.
    The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
    The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
    All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
    The rinser is driven by driving system positioned inside machine frame via gear transmission.



    3. Filler
    Rotary Type 3 In 1 Big Bottle Filling Machine For Non Gas Liquid With Automatic Control 2

    Rotary wheel fully made of stainless steel SUS 304.

    Gravity filling method.

    Filling valves are made of SUS304.

    Filling valves are reasonably structured with accurate filling.

    Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

    Level of cylinder is controlled with float-ball.

    Filler is driven through gears inside the machine frame.

    Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.





    4. Capper

    Rotary Type 3 In 1 Big Bottle Filling Machine For Non Gas Liquid With Automatic Control 3

    Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism which have a photocell switch to stop the capper when there is no cap inside the chute.

    The capper is equipped with inlet bottle detection switch.



    Centrifugal way of cap arranging is adopted to reduce damage of caps.



    5.Main configuration



    Touch screen: Mitsubishi, Thinget or Weinview
    PLC program controller: Mitsubishi or Omron
    Inverter: Mitsubishi or Omron
    Photoelectrical controller: AUTONICS
    Other electrical components: Schneider
    Pneumatic component: Airtac
    Pump: Nanfang



    Rotary Type 3 In 1 Big Bottle Filling Machine For Non Gas Liquid With Automatic Control 4



    Contact Details
    Zhangjiagang Sunswell Machinery Co., Ltd.

    Contact Person: Sam Sun

    Tel: +8613812845656

    Send your inquiry directly to us
