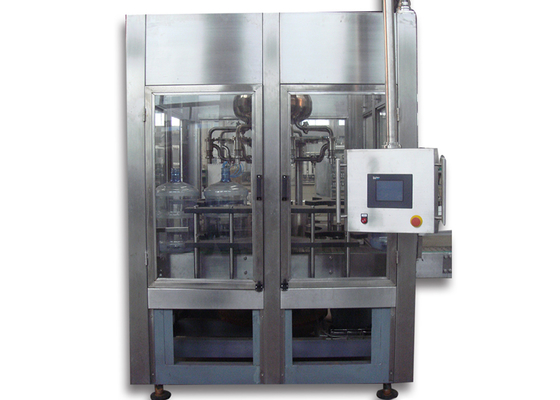

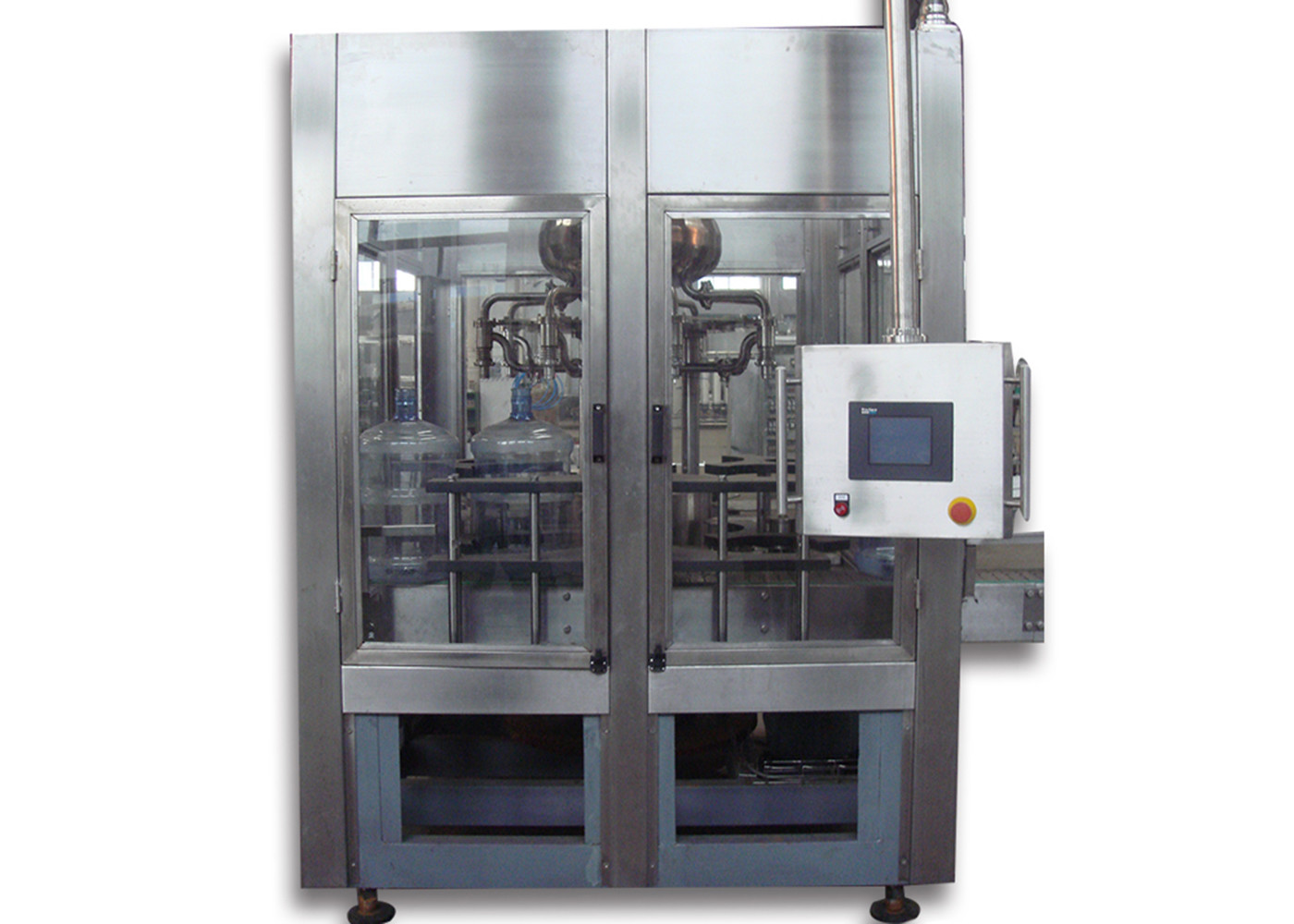

Low Noise Full Automatic 5 Gallon Water Filling Machine Barrel Water Filling Equipment

Low Noise Full Automatic 5 Gallon Water Filling Machine Barrel Water Filling Equipment

Low Noise Full Automatic 5 Gallon Water Filling Machine Barrel Water Filling Equipment

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Sunswell
Certification: CE SGS
Model Number: QGF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $20,000/set
Packaging Details: Wooden case
Delivery Time: 90 days after receiving down payment
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Voltage: 220V/380V,380V 50HZ 3P Or Customized,380V/50HZ
Driven Type: Electric Type: Filling Machine
Material: SUS304 Capacity: 300BPH For 5 Gallon Bottle
Function: Washing Filling Capping Bottle Type: 5 Gallon Barrel Or 3 Gallon Barrel
Name: 5 Gallon Filling Machine Warranty: One Year
Product Name: Automatic 5 Gallon Bottle Water Filling Machine Processing Types: Gravity Pressure Filling

Full Automatic 5 Gallon 18.9L 20L Barrel Water Filling Equipment



Technical instructions:
1) Machine make of stainless steel. The stainless steel used is S.S304
2) Functions: 1_Auto decapper, 2_Bottle outer washing, 3_Auto bottle loading 4_Auto washing filling capping, 5_Lamp check & Label Sealing, 6_Bagging machine,7_Hacking machine
3) Whole machine working controlled by PLC (programmable logical controller) of Panasonic brand, which is made in China with CE marks, the machine works steadily, easily handle and maintained.. PLC controlling all the steps working automatic as a brain of the machine.
4) Ground line could bear 1300V
5) General voltage range: 15-40KW
6) All the electric wire connected as standard of CE, no wire bare, all the wire in wire groove protected. All the connection of wire are protected well by soft plastic pipe.
7) The control panel is hermetical, no dust or water will goes into it, no leak at any connection.
8) Control panel is on up side of out-let, electric wire and air line installed separately.
9) All the board could be taken down, easy and convenient for maintains.
10) While there is no water or lack water in the pure water tank, the filling machine stops automatically.
11) All the connection of weld is plat with nice looking and no burr remained. Avoid any hurting while operation
12) All the electric parts connect to public point in control panel with main power wire then connect with the ground. Make sure all the part of the machine are well protected while the power is not that steady, protect your workers well.
13) Cylinders working by pneumatic, save energy and working steadily.



  Item Type Remark
Washing part Number of bottle carrier / nozzles 2 bottle carrier,12 sets spraying nozzles homemade special  rotary spray system
Number of rows for washing 6 rows (each row 2 bottle carrier)
Number of rinsing pump 6 sets of Lingxiao pump BLC series disinfectant and tap water washing pump:370KW,  pure water washing pump:550KW
Filling part Number of filling pump 2 set of Lingxiao BLC755
Filling nozzle system 2 sets of SS304 type
Pressure valves 4V210-08(AC 220V) Airtac
Filters rugulators lubricators AFC-2000 Airtac
Pressure sensitive switch YSNS-C110 Airtac
Capping part Automatic caps tank/caps chute 100pcs caps tank (manual caps dosing)
Numbers of the capping chuck 2 sets of sticking type
Cylinder system SC 50*50 x 2 sets, SC 50*525 x 1 set Taiwan Airtac
cap-ahigning  motor 90YCJG60    1:30
Controlling unit PLC system K7M-DR20UE korea LG
proximity switch Ni10-Q25-AN6x TURKER
AC contactor GMC-9 AC 220V korea LG
signal relay MY2NJ-AC 220V Omron
air-leakage switch C65N-16 4P/2P MGE
Electromagnetic valves pure water washing:ZCS-15L filling:ZCS-20L
control panel 1020-40-50
Speed gear motor 2 sets of 0.75Kw pearl river motor
station assign adopt double row six stations wash the bottle,two are filling ,two  are capping - the first,sencond and thrid station: dinsinfectant washing, the fourth station:drain, the fifth station:tap water washing, the sixth station: pure water washing
input voltage   AC 220/380 V     50HZ



Low Noise Full Automatic 5 Gallon Water Filling Machine Barrel Water Filling Equipment
