Automatic 5 Gallon Water Filling Machine For Bucket Bottled Pure Mineral Water

Automatic 5 Gallon Water Filling Machine For Bucket Bottled Pure Mineral Water

Automatic 5 Gallon Water Filling Machine For Bucket Bottled Pure Mineral Water

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Sunswell
Certification: CE SGS
Model Number: QGF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $20,000/set
Packaging Details: Wooden case
Delivery Time: 90 days after receiving down payment
Payment Terms: L/C, T/T
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Product Name: Automatic 5 Gallon Bottle Water Filling Machine Type: Filling Machine
Driven Type: Electric Material: SUS304
After-sales Service Provided: Commissioning And Training Capacity: 100/200/300/450/600/900/1200
Function: 5 Gallon Bottle Water Washing Filling Capping Process Bottle Type: Gallon Barrel
Name: 5 Gallon Mineral Water Bottling Machine/ 18.9L Pure Water Filling Line Processing Types: Automatic Bottle Filling Sealing Machine
Condition: New Warranty: One Year



Factory Price Automatic 5 Gallon Bucket 18.9L 20L Bottled Liquid Pure Mineral Water Barrel Washing Filling Capping Bottling Packing Machine



Features

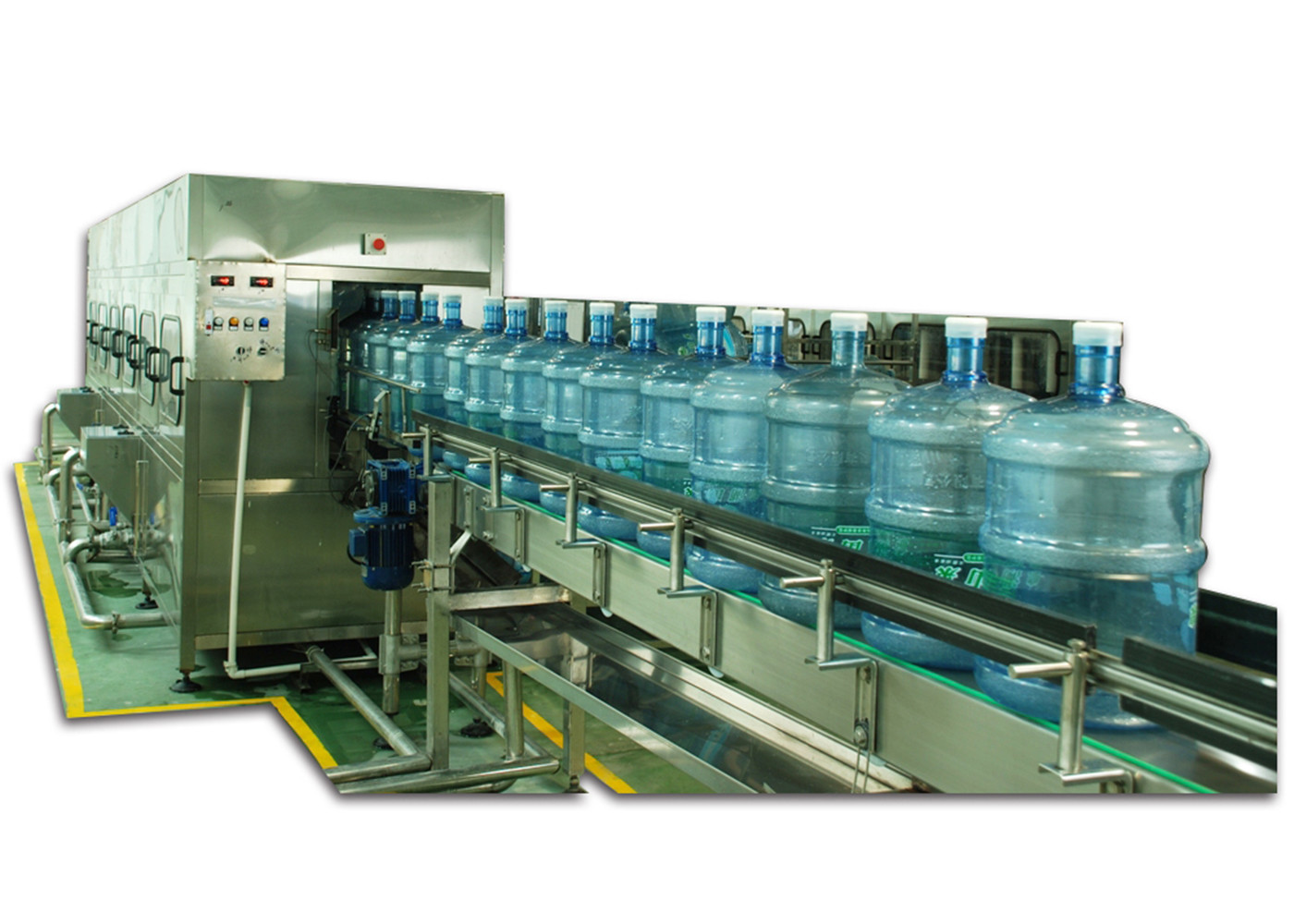

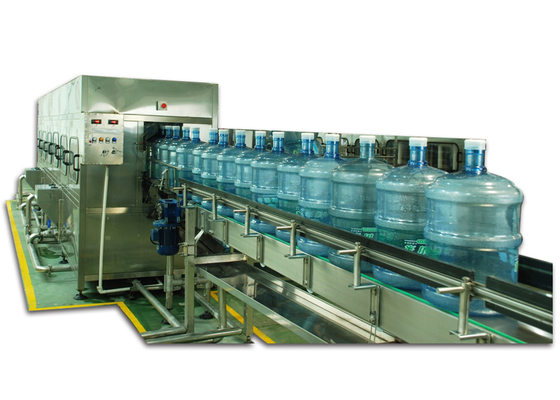

The principle trait: This barrel filling line specially produces 3-5 gallons barreled drinking water. It integrates bottle washing, filling and capping into one unit. In order to achieve the purpose of washing and sterilizing the capping machine can cap barrel caps automatically. This line equips with water spraying device in order to ensure those caps sterile and clean. It also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging, with complete function, modern design and high degree of automation. It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

Specification



No. Machine Name Origin
1 Rinsing pump CNP
2 Filling pump CNP
3 Cylinder Taiwan AIRTAC
4 Pipe Stainless Steel
5 PLC Japan Mitsubishi



Technical parameters



Model TXGF120
Product capacity 120 barrel/hour
Filling head 1
Equipment size 2800×660×1580mm
Power supply Main machine (KW) 1.4
Compressed air Air pressure 0.5Mpa
Gas consumption 1.5m3/min
Washing working position circulating water (2 positions)
pure water (2 positions)
Drip working position: 1 pc
consumption 500-800l/hr



Automatic 5 Gallon Water Filling Machine For Bucket Bottled Pure Mineral Water
