Auto 5 Gallon Filling Machine 18.9L 20L Barrel Pure Spring Water Washing Capping Sealing Line

Auto 5 Gallon Filling Machine 18.9L 20L Barrel Pure Spring Water Washing Capping Sealing Line

    • Auto 5 Gallon Filling Machine 18.9L 20L Barrel Pure Spring Water Washing Capping Sealing Line
  • Auto 5 Gallon Filling Machine 18.9L 20L Barrel Pure Spring Water Washing Capping Sealing Line

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: QGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $20,000/set
    Packaging Details: Wooden case
    Delivery Time: 90 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Automatic 5 Gallon Bottle Water Filling Machine Driven Type: Electric
    Material: SUS304 After-sales Service Provided: Commissioning And Training
    Capacity: 100/200/300/450/600/900/1200 Function: 5 Gallon Bottle Water Washing Filling Capping Process
    Bottle Type: Gallon Barrel Name: 5 Gallon Mineral Water Bottling Machine/ 18.9L Pure Water Filling Line
    Processing Types: Automatic Bottle Filling Sealing Machine Warranty: One Year
    High Light:

    bottled water filling machine

    ,

    automated filling machine



    Auto 5 Gallon 18.9L 20L Barrel Pure Spring Water Washing Filling Capping Sealing Line Machine



    Introduction:



    Washing procedure: total 12 steps:

    No.1 pre-wash; No.2 and 3: lye washing; No.4: dripping; No.5 and 6: recycled water washing; No.7, 8 and 9: disinfectant washing; No. 10 and 11: product water washing; No.12: dripping. Rinsing heads are hoisting type.
    Cycle disinfectant, recycled on side, convenient for sampling and inspection. Each tank has low level alarming device. Chain moving for cleaning. Double-layer board avoids water mixing. High speed filling valves have sensitive water level detection to avoid bottle outfeed without full filling. Adopt chain type pressing caps.
    Air source:pressure 0.5~0.6Mp,consumption 350L/M
    Structure: transmission controlled by PLC.
    Configuration (lye tank leaves steam joint)
    PLC: MITSUBISHI
    Pump: CNP
    Pneumatic components: AirTAC
    AC contactor: Schneider
    Main motor: Shanghai Bolong
    Equip automatic cap sorting and loading system
    Equipment automatic malfunction protection device

    Specification



    No. Machine Name Origin
    1 Rinsing pump CNP
    2 Filling pump CNP
    3 Cylinder Taiwan AIRTAC
    4 Pipe Stainless Steel
    5 PLC Japan Mitsubishi



    Technical parameters



    Main technical data
    Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200 QGF-2000
    Number of filling heads 1 2 3 4 8 12 16
    Filling capacity 18.9 18.9 18.9 18.9 18.9 18.9 18.9
    Barrel size (mm) φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490
    Production capacity (b/n) 100-120 200-240 300-400 600 900 1200 2000
    Gas pressure (Mpa) 0.4-0.6 0.4-0.6 0.6 0.6 0.6 0.6 0.6
    Gas consumption (m3/min) 0.37 0.6 0.6 1.2 2.2 3 4.5
    Motor power(kw) 1.75 3.22 4.8 8.5 8.5 8.5 8.5
    Rated voltage (V) 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
    Overall dimension (mm) 3790×650
    ×1550
    3550×800
    ×1800
    2800×1100
    ×1800
    3550×1200
    ×1800
    3800×1100
    ×1800
    3650×1500
    ×1800
    3800×1100
    ×1800
    2200×1860
    ×2700
    not include cleaning
    2560×2350
    ×2750
    not include cleaning
    3100×2800
    ×2750
    not include cleaning

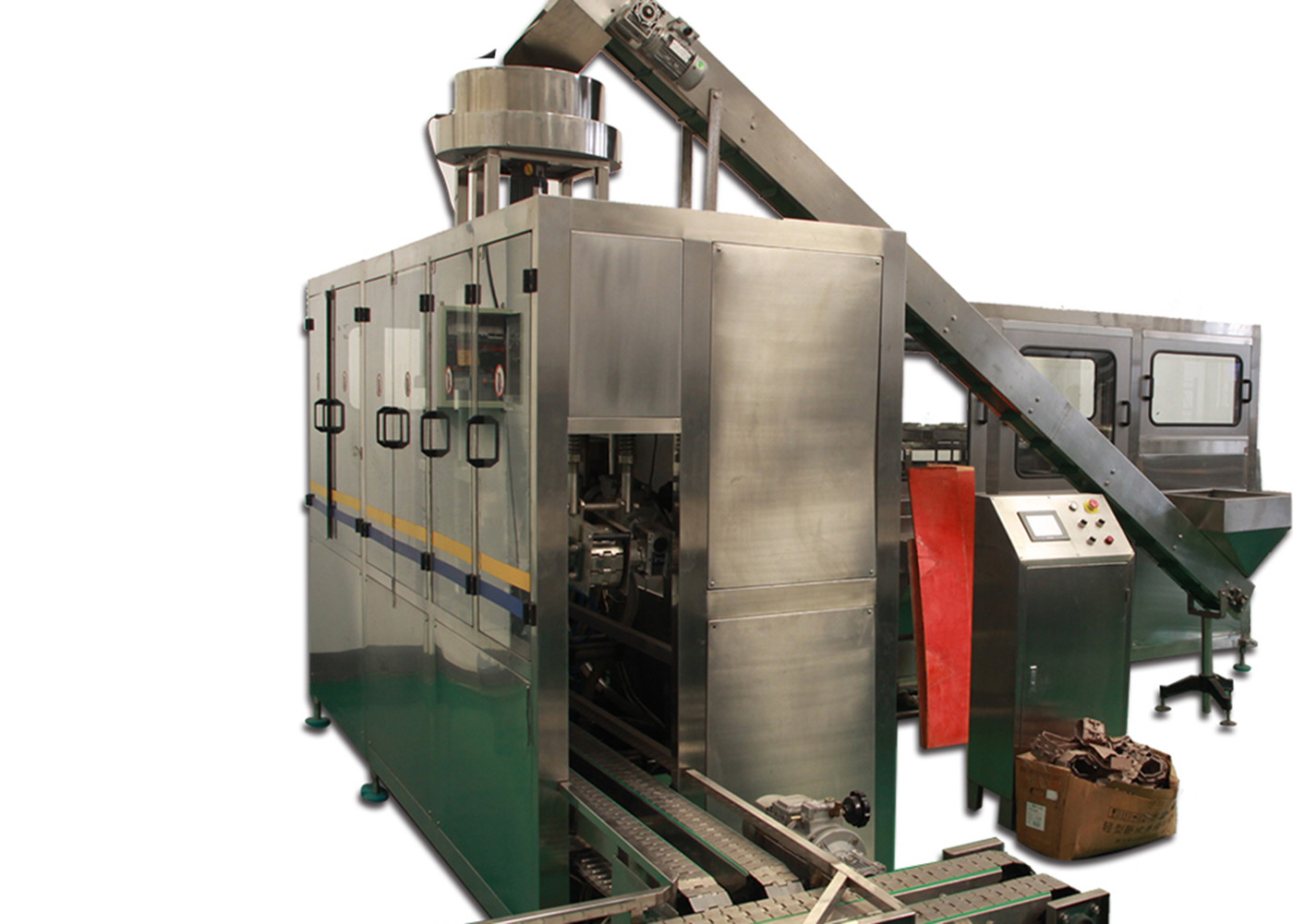

    Auto 5 Gallon Filling Machine 18.9L 20L Barrel Pure Spring Water Washing Capping Sealing Line 0
