Place of Origin: | Jiangsu, China |
---|---|
Brand Name: | Sunswell |
Certification: | CE SGS |
Model Number: | RO |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Wooden case |
Delivery Time: | 60 days after receiving down payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets/month |
Product Name: | Water Treatment System Processing Reverse Osmosis Plant | Material: | SS304 |
---|---|---|---|
Application: | Filtration | Type: | RO Water Treatment Equipment |
Usage: | Liquid Filter | Warranty: | 12 Months |
After-sales Service Provided: | Commissioning And Training | Function: | Beverage Or Food Company |
High Light: | water treatment machine,Water Treatment Equipment |

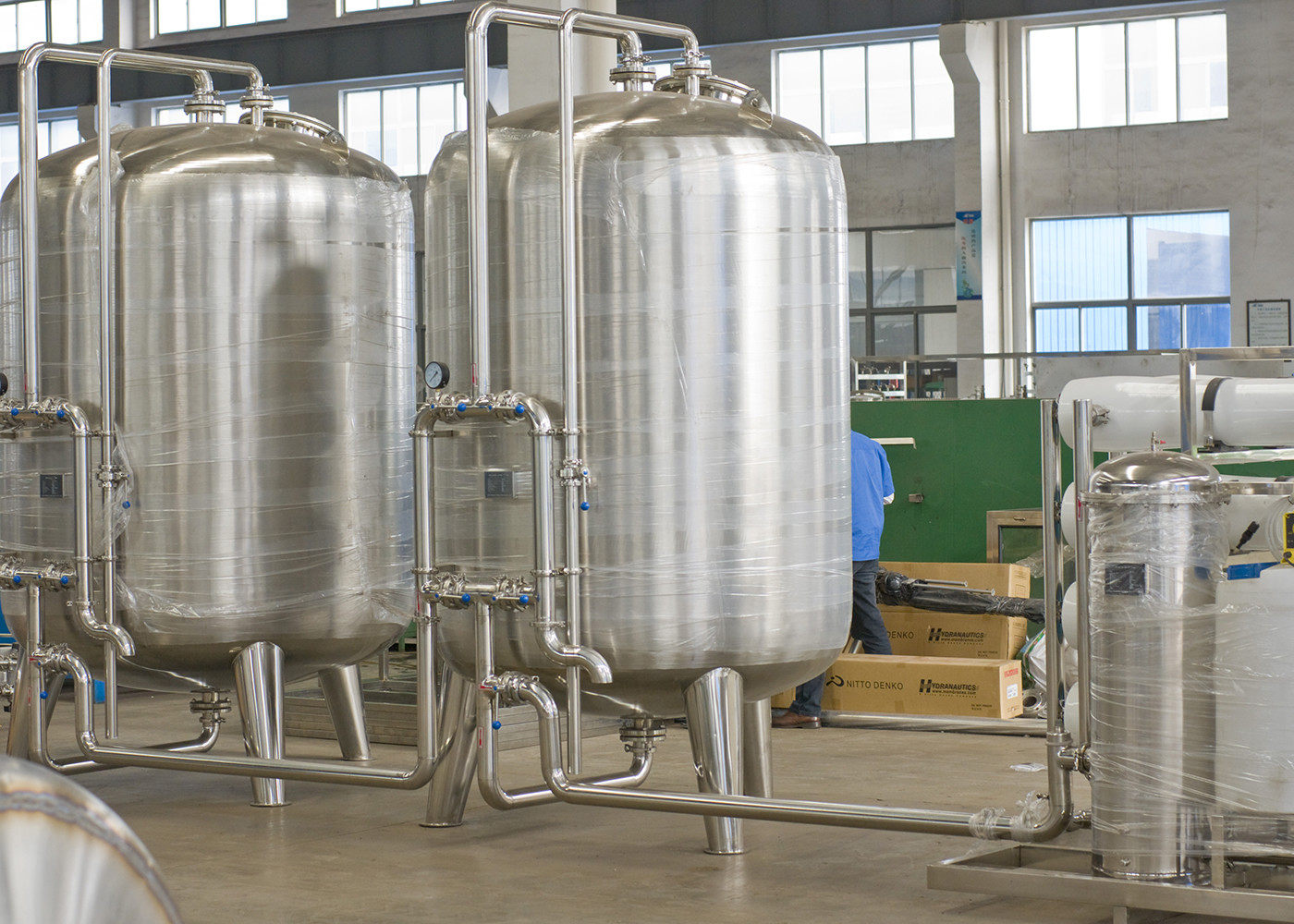

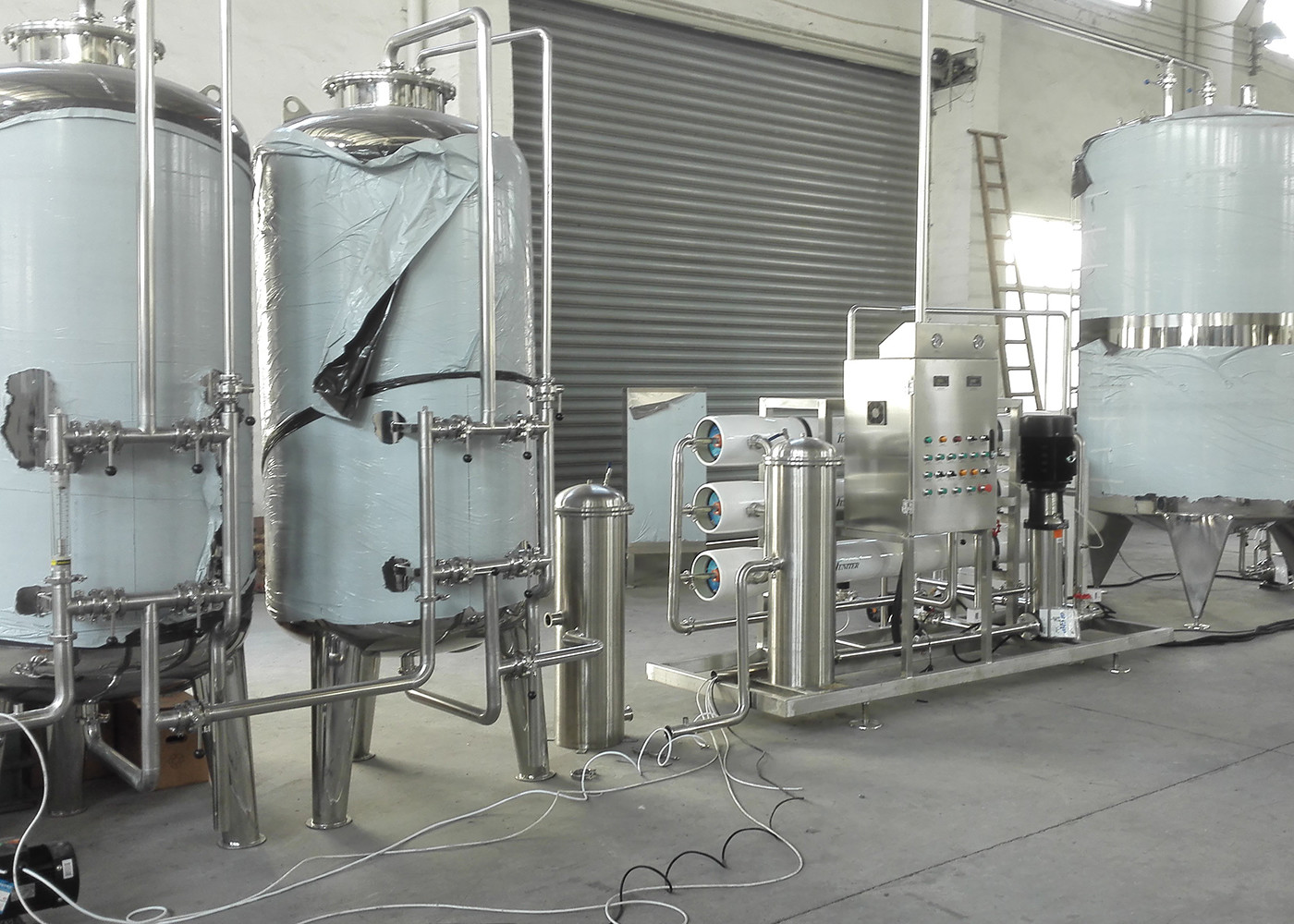

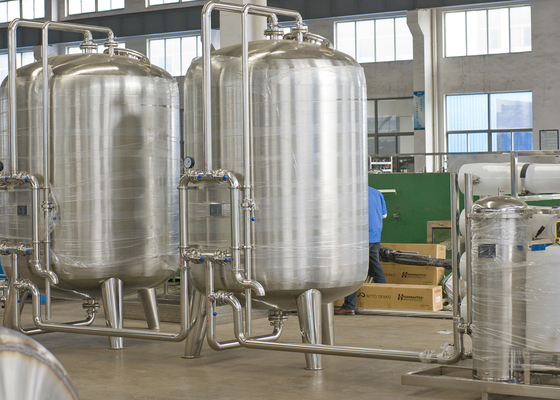

Beverage/Drinking Water Purification Plant/RO Reverse Osmosis Pure Water Treatment System
Reverse Osmosis
The Reverse Osmosis device is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Difference materials have different osmotic pressures.
The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance.
Main Equipments Description:
Raw Water Pump 1 set Model: 4-50 Brand: Nanfang Pump |
Quartz sand filter 1 set Material: SUS304 Overall dimensions: D450×H2000 (mm) |
Active carbon filter 1 set Material: SUS304 Overall dimensions: D450×H2000 (mm) |
Sodium ion exchanger 1 set Material: SUS304 Overall dimensions: D450×H2000 (mm) |
Precision filter 1 set The filter medium of the precise filter is made of micro-hole film, it is the modern advanced equipment for the filter and widely used in medicine, electrical, food industries. Working pressure: ≤0.3Mpa Production capacity: 4T/h Overall dimensions: D400×H1000 (mm) Material: SUS304 |
Reverse osmosis 1 set Capacity: 2T/H, 8 sets 4040 (Hydranautics) One stage reverse osmosis Pump: CDLF4-16 (Nanfang) |
Ultraviolet radiation sterilizer 1 set Working pressure≤0.2 Mpa Treatment Capacity 2T/H Overall dimensions: 116×75×65mm |
Ozone generator 1 set Capacity: 7g Overall dimensions: 400×320×600mm Material: Carbon Steel |
Gas-liquid mixing pump 1 set Model: 25QY-2 Brand: Nanfang Pump |
Pure water tank Raw Water Tank Material: SUS304 Volume: 2m3 |
