ISO Semi Automatic Blow Molding Machine For 300ML 500ML 1L 1.5L PET Bottle

Basic Information

Place of Origin:	China
Brand Name:	SUNSWELL
Certification:	CE,ISO,SGS
Model Number:	SW-1200

Minimum Order Quantity:	1 Set
Price:	Negotiate
Packaging Details:	Standard Export Wooden Case
Delivery Time:	30 Days
Payment Terms:	L/C, T/T
Supply Ability:	100 Sets Per Year

Get Best Price Contact Now

Voltage:	Customized	Use:	Making PET Bottle,water Bottle
Blow Moulding Type:	Stretch Blow Moulding	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training
Warranty:	12months	Key Words:	PET Stretch Bottle Blowing Molding Machine
Highlight:	blow mould machine , blow molding machinery

Semi Automatic 300ML 500ML 1L 1.5L PET Bottle Plastic Bottle Blow Molding Machinery

General Description:

1). The machine adopts revolving infrared pre-heat system, it ensures pet performs

be heated evenly.

2). The machine uses mechanical-double-arm mould clamping system which ensures the mould

be closed tightly even under high pressure and high temperature.

3).The air system has been divided into two parts: Pneumatic action part and bottle

blow part to meet the different pressure requirements for the action and blow, it

can provide sufficient and steady high pressure for blowing large irregular shaped

bottles

4).Wide -mouth and hot-filling bottles can also be made.

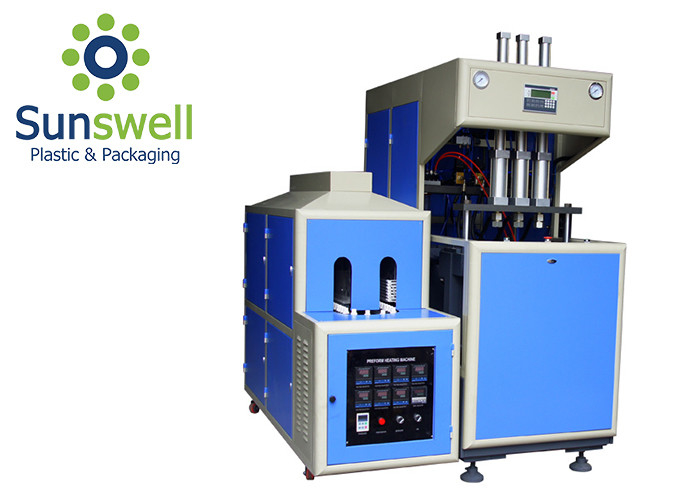

ISO Semi Automatic Blow Molding Machine For 300ML 500ML 1L 1.5L PET Bottle 0
Specifications:

Output	up to bottle shape	2000~2500bph	Power	power voltage	3Phase 380V /50HZ
Finished Bottle	bottle body diameter	30mm-110mm	Power	installed power / actual power	18kw/10kw
	bottle height	50mm-350mm	Air Source	high pressure air compressor	1.6m3/min 3.0MPa
	bottle neck diameter	15mm-48mm	Air Source	air dryer	2.0m3/min 3.0MPa
Mold	cavity	4 cavity	Cooling Water	water yield	15L/min
	mold thickness	100~250mm	Blower Dimension	lengthwidthheight/ weight	16508001850mm/650kg
	Max. stretching distance	600*380mm	Heater Dimension	lengthwidthheight/ weight	21506701700mm/350kg

Main parts:

	Ltem	Specification	QTY	Power/Remarks
Blowing machine	Semi-Automatic blowing machine	DY-1200B	2	42KW
	Perform heater	DY-1200B	1	42KW
	Blowing mold	500ml.2cavity	2	45# Street
	Blowing mold	1500ml.2cavity	2	45# Street
Auxiliary Equipment	High pressure air compressor	1.6m3/3.0mpa	1	18.5KW
	High pressure air tank	0.6m3/3.0mpa	1
	High pressure air dryer	2.5m3/3.0mpa	1	4kw
	High pressure air filter	2.5m3/3.0mpa	2
	Connecting pipe	2.0m3/3.0mpa	1
	Mold chiller	3HP air-cooling	1	4kw
