|Place of Origin:||China|
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 pcs per year|
|Product Name:||Water Treatment System Processing Reverse Osmosis Plant||Capacity:||Customized|
|Operation:||Automatic / Manual||Voltage:||220v/380v|
|Power:||As Per Plant Module||Application:||Filtration,drinking Water,underground Water Treatment To Drinking Water Etc|
|Function:||Water Purification Plant,micron Membrane Filter,beverage Or Food Company,Remove Impurities||Desalination Rate:||More Than 98%|
|Warranty:||12 Months||After-sales Service:||Engineer Oversea Working Available|

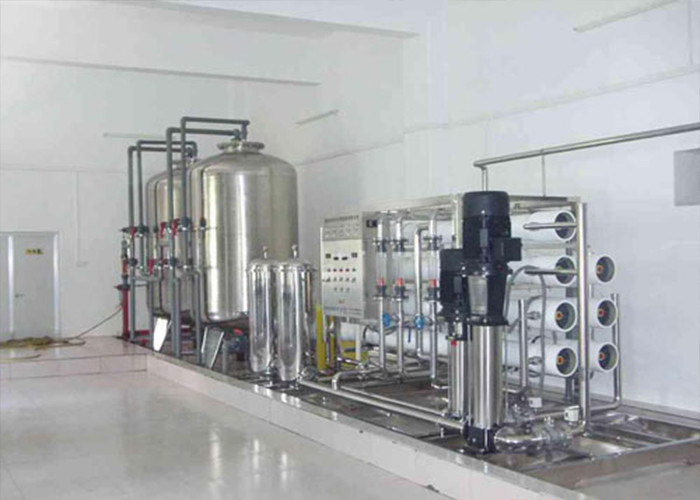

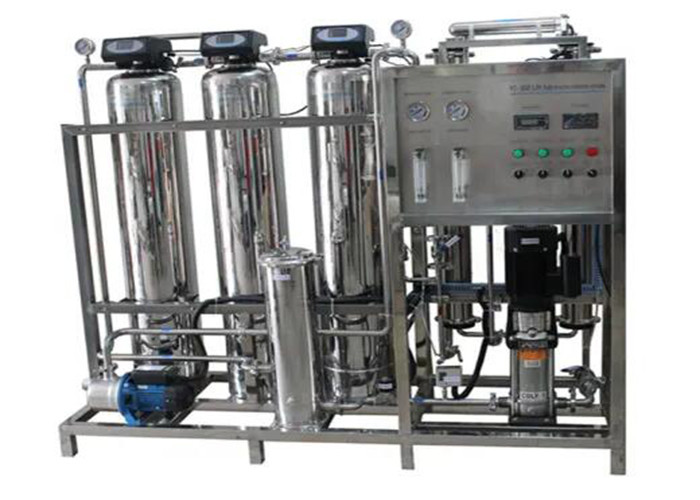

RO UF Mineral Drinking Water Treatment Purifier Filter Machine Manufacturer
Reverse Osmosis is an equipment to purify the saltine water with the action of pressure difference of semi-permeable membrane.It is effective with asbestos,taste,colour and odour producting chemicals,particulates,total dissolved solids,turbidity and radium.RO system is widely used in water supply treatment,purification of tap water,brackish water,pure water and ultrapure drinking water production,
power stations,electronic industries,and medical treatment.It is capable of removing more than 97% of total dissolved solids(TDS),about 99% of organic and bacteria in the feed water.
Rwa water→Raw water tank→Pump→Filter(Quartz SandActive CarbonPrecisionSecurity)→Pump→One-stage Reverse Osmosis→Middle tank→Pume→Two-stage Reverse→Pure water tank→Pump→Ozone sterilization→Pump→Titanium filter
3,Main Compoents And Function Description
Raw water tank:To solve the problem of unstable water pressure and reduce the mechanical failure caused by the frequent startup and unstable water pressure during the pump working.
Quartz sand filter:It is used as the pretreatment of RO equipment and ultrafiltration equipment, mainly for the interception and adsorption of sediment, colloid, metal ions and organic matter.
Active carbon filter:The internal structure is the same as quartz sand filter.After activate carbon filtration, residual chlorine in water can be reduced to 0.1mg/L.
Precision (Safety)Filtration:Use 5us melt jet filter element,it can remove fine particles to create conditions for RO water inflow.
Pump:Provide the power for reverse osmosis operation.
RO Systerm:It is the core components of RO equipment, Membrane separation technology is applied to effectively remove charged ions, inorganic substances, colloidal particles, bacteria and organic substances in water.It is the best equipment in preparation of high pure water, desalination of brackish water and wastewater treatment.Widely used in electronics, medicine, food, textile, chemical, power generation and other fields.
Pure Water Tank:For storage of pure water
Reverse Osmosis Diagram
1).System can produce water continuously, PLC program controlled, Simple in installation and operation
2). RO system be chosen the import USA DOW membrane
3). Tank level control, automatic stop when the raw water tank without water or pure water tank is full
4). RO system flushes RO membranes when it starts to work so that membrane fouling is reduced.
5).CNP high pressure pumps or Denmark Grundofos high pressure pumps are adopted.
6). Product water quality is continuously monitored by conductivity meter.
1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2). Food and beverage industry: filter for mineral water, wines and fruit juice, bottled drinking water
3). Medicine industry: filter for drug liquid
4). Chemical industry: filter for organic solvent
5). Petroleum industry: filter for oil-field flooding
|A. After-sale service||I. Sunswell offers you high quality machines with 1 year guarantee and supply life-long technical support|
|II. Sunswell provides recommended spare parts.|
|III. Sunswell provides the instruation book for the machines operation and maintenace troubleshooting. And normally, the language of instruction book is Engligh.|
|B. Installation||I. Before machines are delivered into your factory, your esteemed company need to prepare the water, electricity, etc...When machines reached at your factory, engineers from Sunswell will go to your factory within two week, to finish the machines installation and train your staffs.|
|C. Sample service||I. For the machines operation & maintenace troubleshooting, you completely don't worry about that. When all machines have been manufacturered, Sunswell will take the video about machines operating, then show that to you.|
|II. You are welcome to come to visit Sunswell factory, and see the machine running.|
|III. If we get the permission of the customers who have bought the machines from us, we can provide you their contact information and you can go and visit.|
|D. Payment term||30% T/T in advance as deposit, and the balance be cleared before shipment|
