|Place of Origin:||Jiangsu, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||80 days after receiving down payment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||10 sets/month|
|Automatic Grade:||Automatic||Driven Type:||Electric|
|Application:||Beverage||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
|Packaging Type:||Bottles||Warranty:||1 Year|
|Name:||CE SGS ISO Mineral Water Filling Machine Pure Water Bottling Machine||Product Name:||Mineral Water Filling Machine|

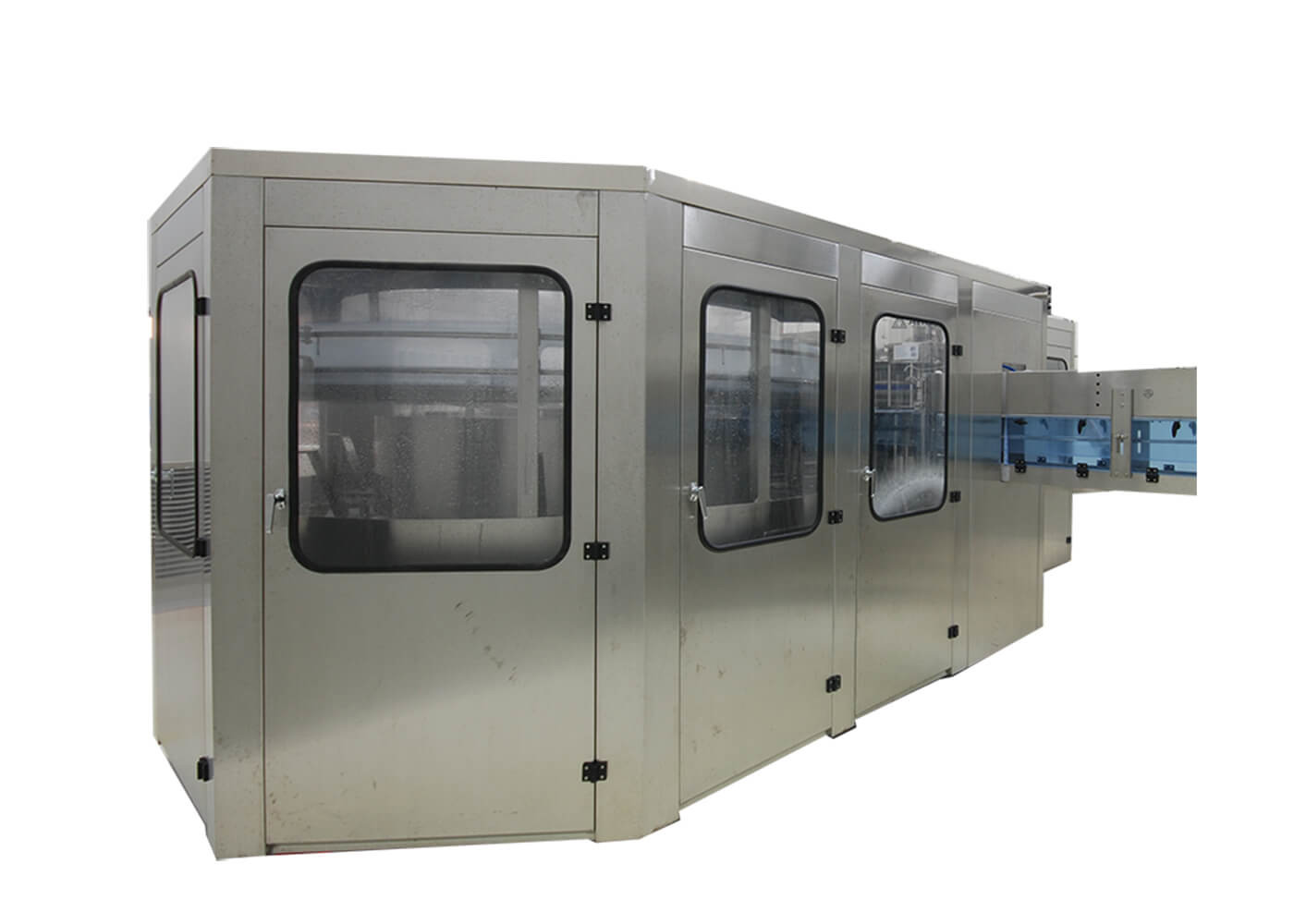

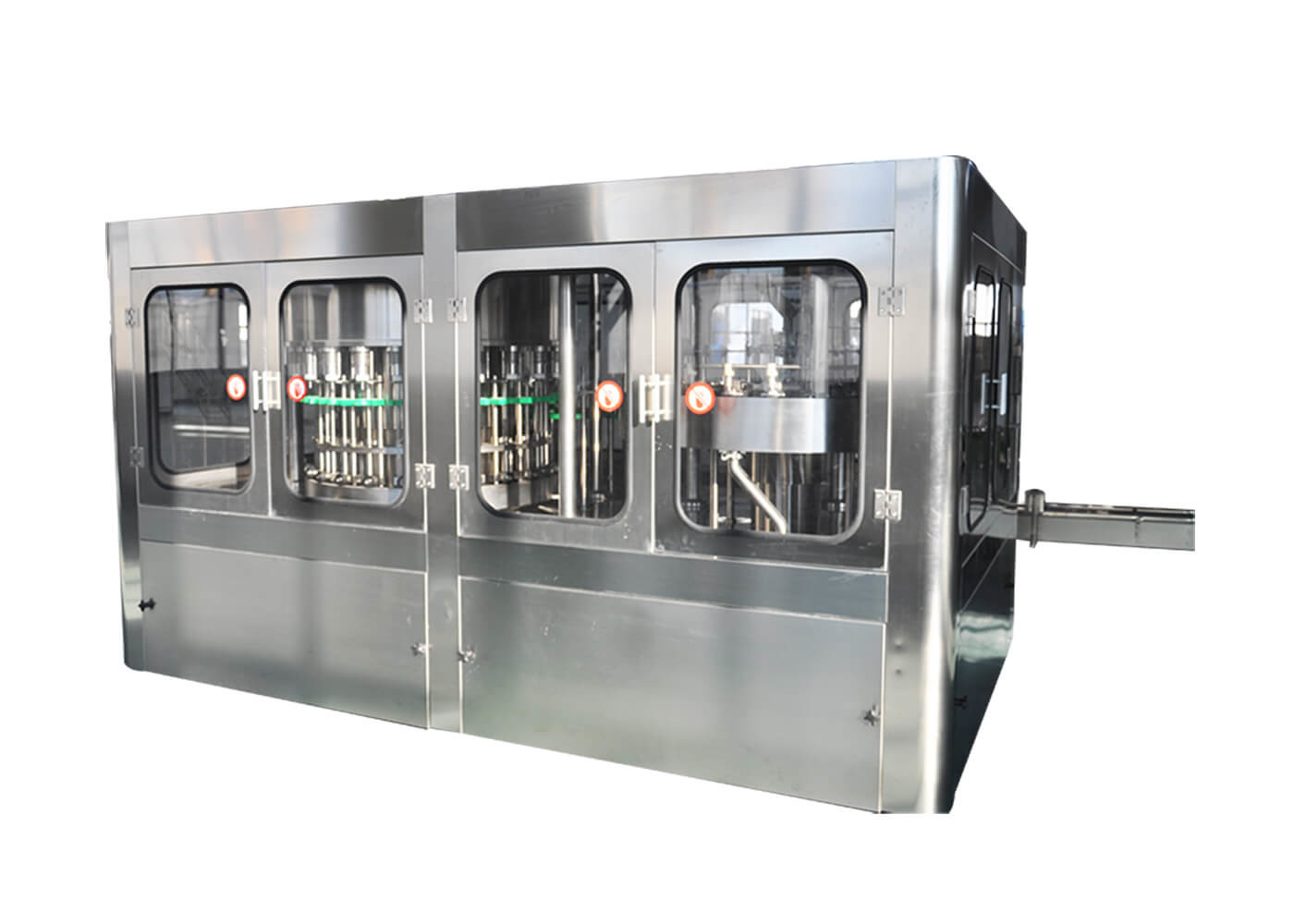

Rinsing Filling Capping 3-in-1 Pet Bottling Machinery for Factory Water Drinking
The rotary wheel is a fully sus304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.Made of sus304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use igus (germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
Rotary wheel fully made of stainless steel sus 304.
Gravity filling method.
Filling valves are made of sus316l.
Filling valves are reasonably structured with accurate filling.
Filling flow can reach 200ml per second.
Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
Level of cylinder is controlled with float-ball.
Filler is driven through gears inside the machine frame.
Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck
Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock.Our capper features as follows:
Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
The capper is equipped with inlet bottle detection switch.
Centrifugal way of cap arranging is adopted to reduce damage of caps.
A cap inspecting system is applied to control on-off of elevator.
The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated.The machine frame is wrapped with stainless steel sheet (ansi304).
Driving system of the 3-in-1 unit is positioned under the machine table.One main motor provides driving power via gear transmission.
The gear transmission system is an interleaved arrangement of steel gears and nylon gears.
The output shaft of the main motor is equipped overload protection to secure machine safety.
The electrical cabinet is made of coated carbon steel.From bottle infeed to bottle discharge, a plc controls the fully automatic operation of the 3-in-1 unit.
|Number of filling valves||12, 16, 24, 32, 40, 50, 60, 72,|
|Filling speed:||5, 000-30, 000bph (500ml)|
|Type of bottles||Pet bottles of various shapes|
|Filling temperature||Ambient temperature|
|Filling principle||Gravity filling|
|Filling product||Mineral water, purified water, drinking water, flavor water and low alcoholic drinks.|
