Complete Bottled Drinking Water Production Plant For Mineral Water Plant Project

Complete Bottled Drinking Water Production Plant For Mineral Water Plant Project

    • Complete Bottled Drinking Water Production Plant For Mineral Water Plant Project
    • Complete Bottled Drinking Water Production Plant For Mineral Water Plant Project
  • Complete Bottled Drinking Water Production Plant For Mineral Water Plant Project

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: XGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 80 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Automatic Grade: Automatic Driven Type: Electric
    Type: Filling Machine Application: Beverage
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Name: CE SGS ISO Mineral Water Filling Machine Pure Water Bottling Machine



    Mineral Water Plant Project Complete Bottled Drinking Water Production Plant



    General Description:

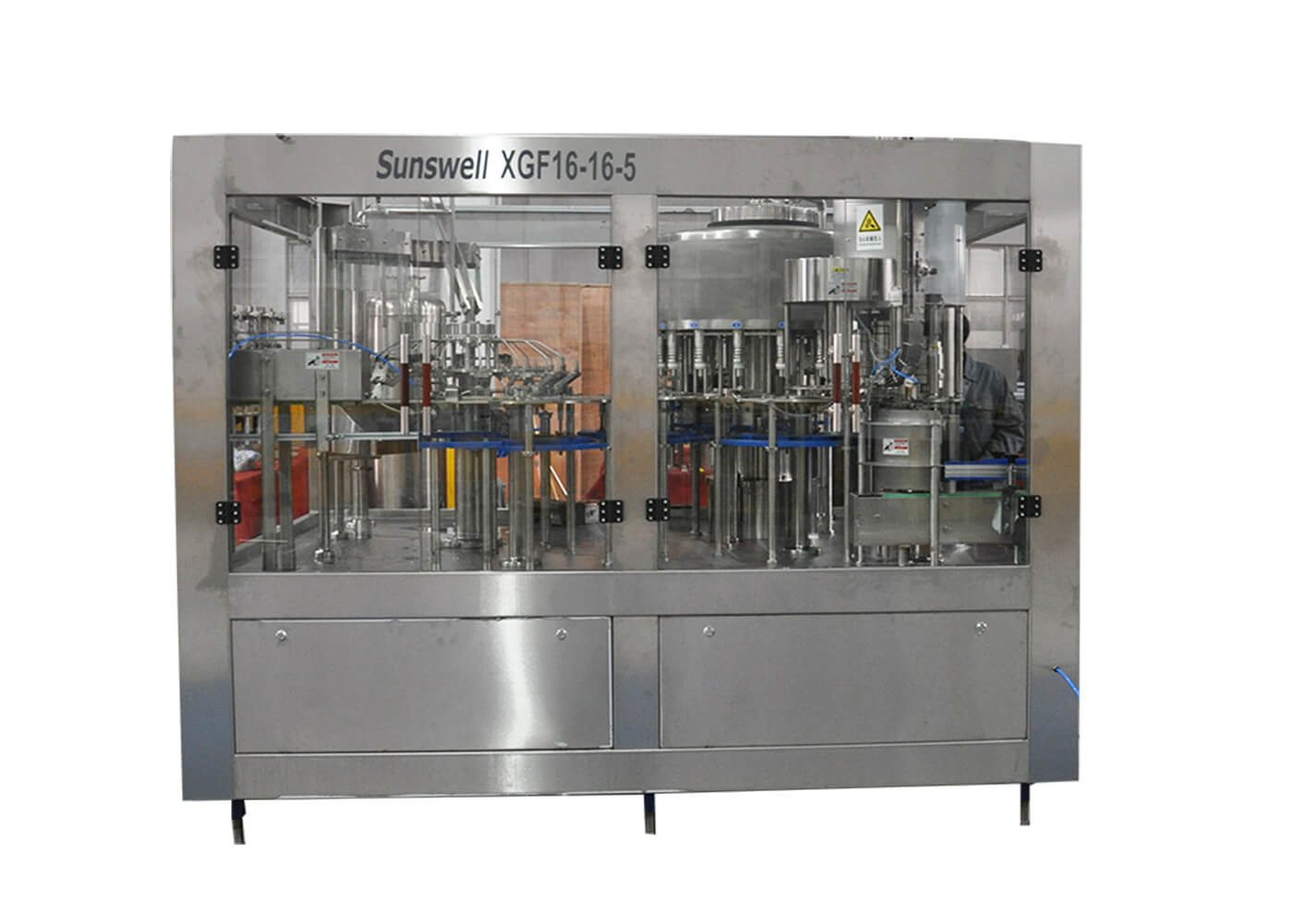

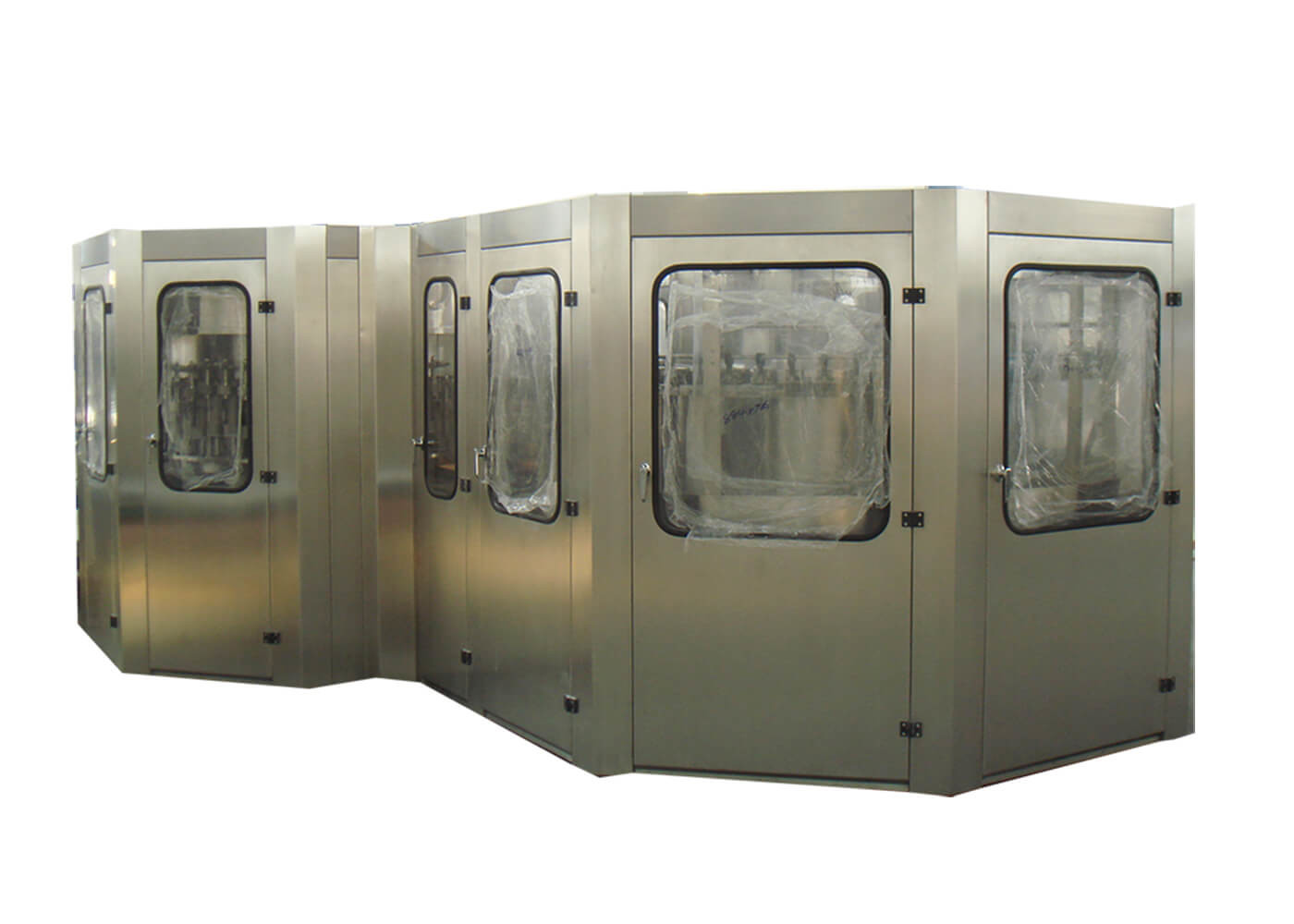

    XGF is special for drinking water filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of water filling technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.



    Features:



    1. Compact structured, good-looking, easy to operate and highly automated.
    2. Air conveyor is directly linked with feed-in star wheels, making it easier to change bottles without screws and conveyor chains.
    3. Bottles are transferred in the manner of hanging neck. Bottles can be changed through some replacement and adjustment of steel star wheels, which instead of adjusting the height of machine.
    4. Rinsing-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.
    5. Highly effective spraying nozzles equipped on the rinsing-clamp can rinse every side of inner bottle and save water.
    6. Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.
    7. Bottling volume can be controlled by membrane adjusting valves to ensure accurate filling.
    8. Valve on-off system is driven by neck supporting plates of bottle carrying mechanism.
    9. High-speed and highly accurate bottling valves ensure no loss of liquid at high speed.
    10. The arrangement of steel gear and nylon gear is chiastic to reduce noise.
    11. The bottom plate which fixed in the feed-out star wheel goes down in the manner of screw. Bottles can be changed without adjustment of height of conveyor chain.
    12. Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
    13. Highly effective cap sorting and feed in system is protective for feed in and cap absence.
    14. Equipped with overload system to safeguard machine and operators.
    15. Touch screen operated.
    16. Main electronic components (touch screen, PLC and frequency inverter) are imported products.



    Technical Model:



    Model Stable capacity for 500ml (bottle/hour) Remark
    XGF14-12-5 5000BPH
    XGF16-16-5 7000BPH
    XGF24-24-6 10000BPH
    XGF32-32-8 15000BPH
    XGF40-40-10 18000BPH
    XGF50-50-12 20000BPH Recommend our combiblock
    XGF60-60-15 24000BPH Recommend our combiblock
    XGF72-72-18 30000BPH Recommend our combiblock
    XGF80-60-20 36000BPH Recommend our combiblock
