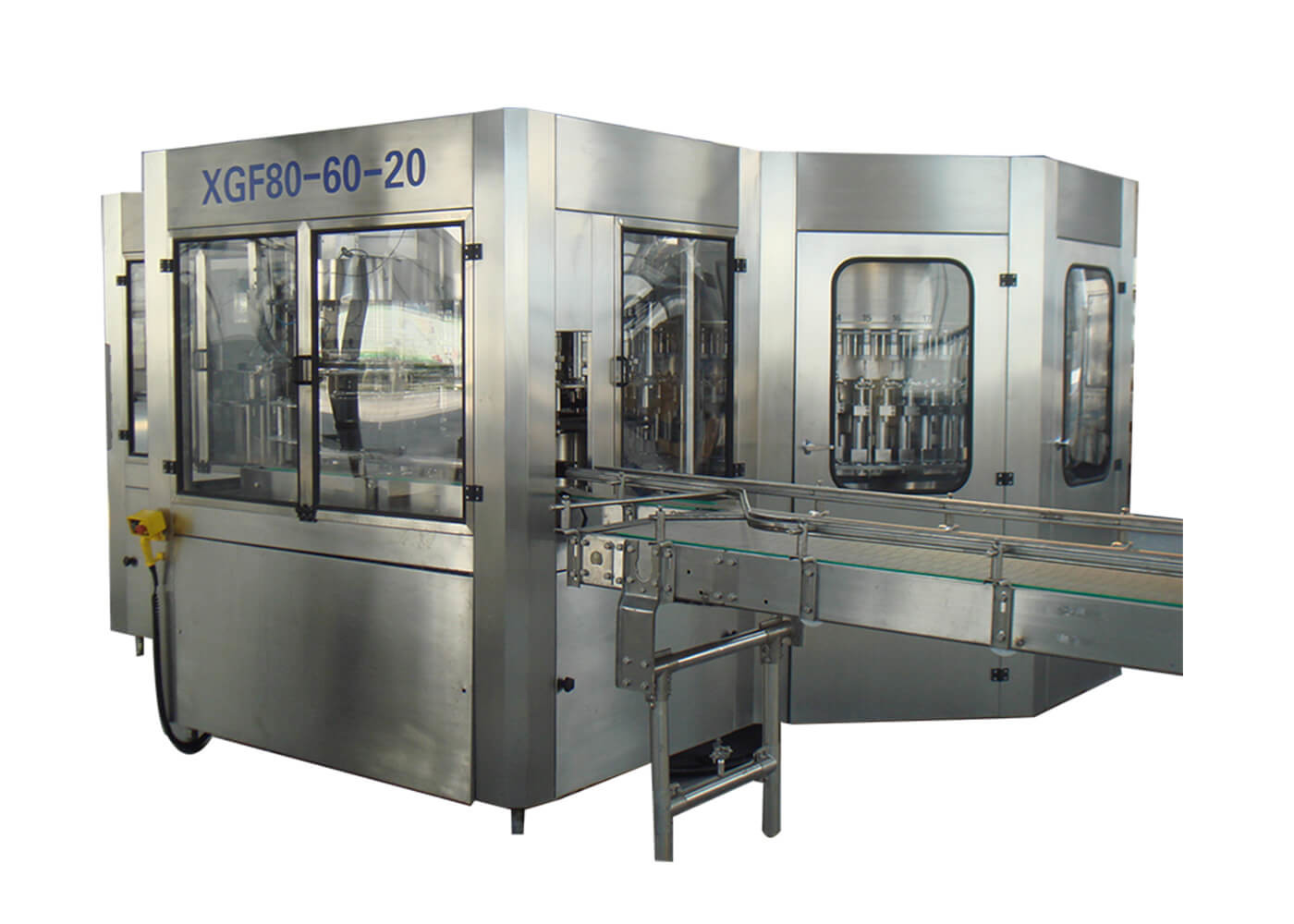

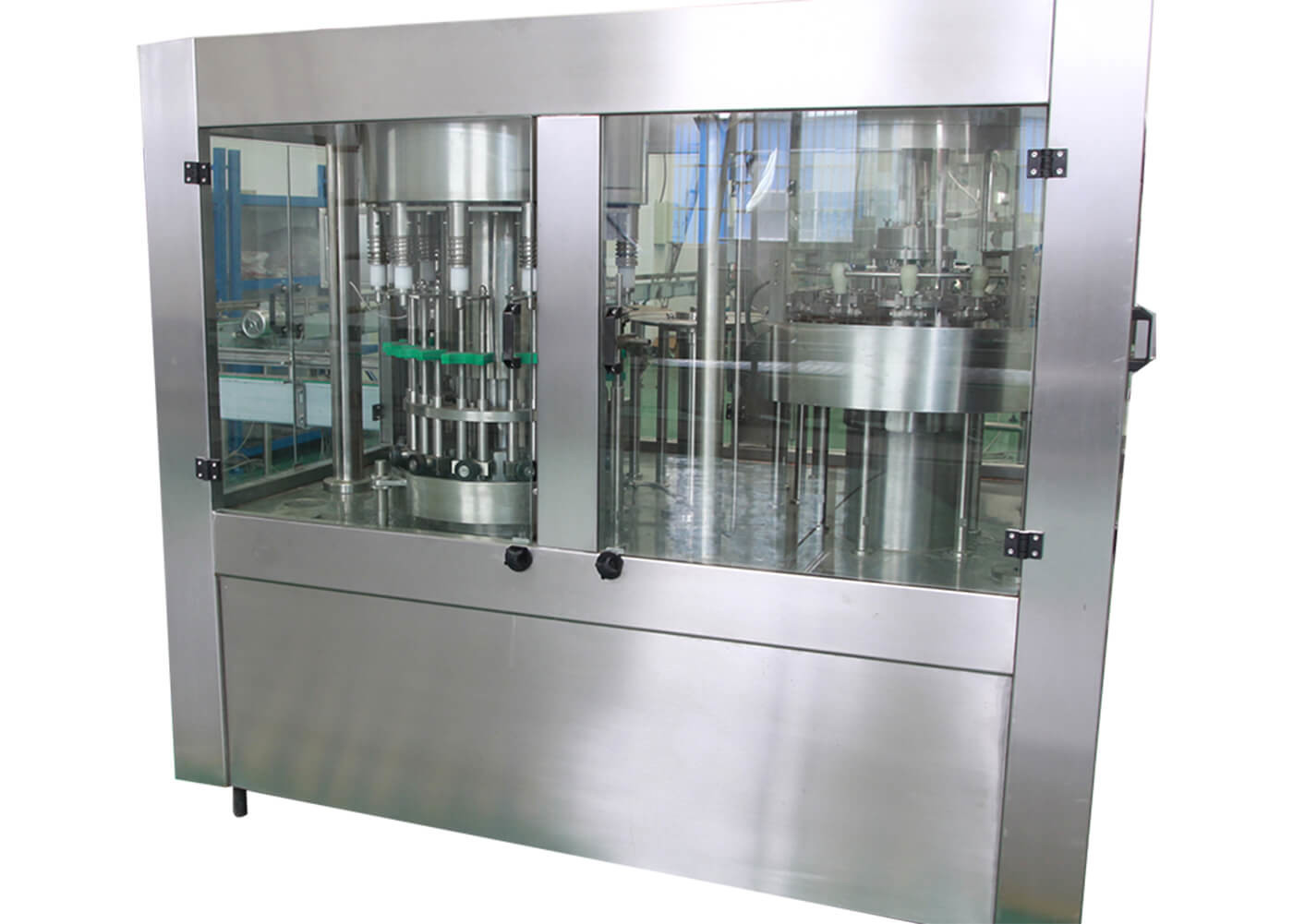

Mineral Water Filling Machines , Water Bottling Machine For Complete Production Line

Mineral Water Filling Machines , Water Bottling Machine For Complete Production Line

    • Mineral Water Filling Machines , Water Bottling Machine For Complete Production Line
    • Mineral Water Filling Machines , Water Bottling Machine For Complete Production Line
  • Mineral Water Filling Machines , Water Bottling Machine For Complete Production Line

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: XGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 80 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Automatic Grade: Automatic Driven Type: Electric
    Type: Filling Machine Application: Beverage
    Name: CE SGS ISO Mineral Water Filling Machine Pure Water Bottling Machine Voltage: Can Be Designed
    Packaging Type: Bottles After-sales Service Provided: Online Support



    Automatic Mineral Water Rinsing Filling Capping 3-in-1 Bottling Machine for Complete Production Line



    Application:
    Pure water, mineral water, drinking water, soda water, flavered water, natural water, spring water, potable water



    Bottle volume:
    0.2L-2L (Big than 2L bottle volume,we have other machinery can meet your 2L -20L bottle volume requirement).

    The water machinery combiblock is composed by: RINSER-FILLER-CAPPER 3 in 1 monoblock



    Equipment structure:
    1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
    2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
    3. Capping system: Combined with capper, cap sorter and cap falling track.
    4. Driving system: Combined with main motor and gears.
    5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
    6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.



    Main configuration:
    1. Material of filling valve: Stainless steel 316L available
    2. Material of rotary tray and machine platform of rinser and filler: Stainless steel 304.
    3. Main motor: ABB/SEW (Germany)
    4. Sliding bearing: Igus (Germany)
    5. Frequency inverter: MITSUBISHI (Japan)
    6. Touch screen: DIGITAL (Japan).
    7. PLC: MITSUBISH (Japan)
    8. Pneumatic components: FESTO (Germany)
    9. Seals: Busak+Shamban (USA)
    10. Photocell switch: BANER (USA).
    11. Proximity switch: TURCK (Germany).



    Technical Model:



    Model Stable capacity for 500ml (bottle/hour) Remark
    XGF14-12-5 5000BPH
    XGF16-16-5 7000BPH
    XGF24-24-6 10000BPH
    XGF32-32-8 15000BPH
    XGF40-40-10 18000BPH
    XGF50-50-12 20000BPH Recommend our combiblock
    XGF60-60-15 24000BPH Recommend our combiblock
    XGF72-72-18 30000BPH Recommend our combiblock
    XGF80-60-20 36000BPH Recommend our combiblock




    Mineral Water Filling Machines , Water Bottling Machine For Complete Production Line

    We can also provide turnkey/complete bottling water production line :
    1.Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
    2.Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
    3. Air conveyor for empty bottle loading
    4. Rinser-filler-capper 3 in 1 monoblock
    5. Cap loader load caps
    6. Code printer (Ink-jet printer/ laser-jet printer)
    7. Labeling machine ( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adheisive labeling machine )
    8. End packaging ( PE shrink wrapping machine / Carton packing machine )



    Please feel free to contact us if you are interested in our machines.
