SUS Bottling Packaging Water Filling Machines / Equipment For Beverage

SUS Bottling Packaging Water Filling Machines / Equipment For Beverage

    • SUS Bottling Packaging Water Filling Machines / Equipment For Beverage
    • SUS Bottling Packaging Water Filling Machines / Equipment For Beverage
  • SUS Bottling Packaging Water Filling Machines / Equipment For Beverage

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: XGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 80 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Automatic Grade: Automatic Type: Filling Machine
    Application: Beverage Voltage: Can Be Designed
    After-sales Service Provided: Online Support Name: Automatic Liquid Filling Machine
    Material: SUS304/316 Warranty: 1 Year

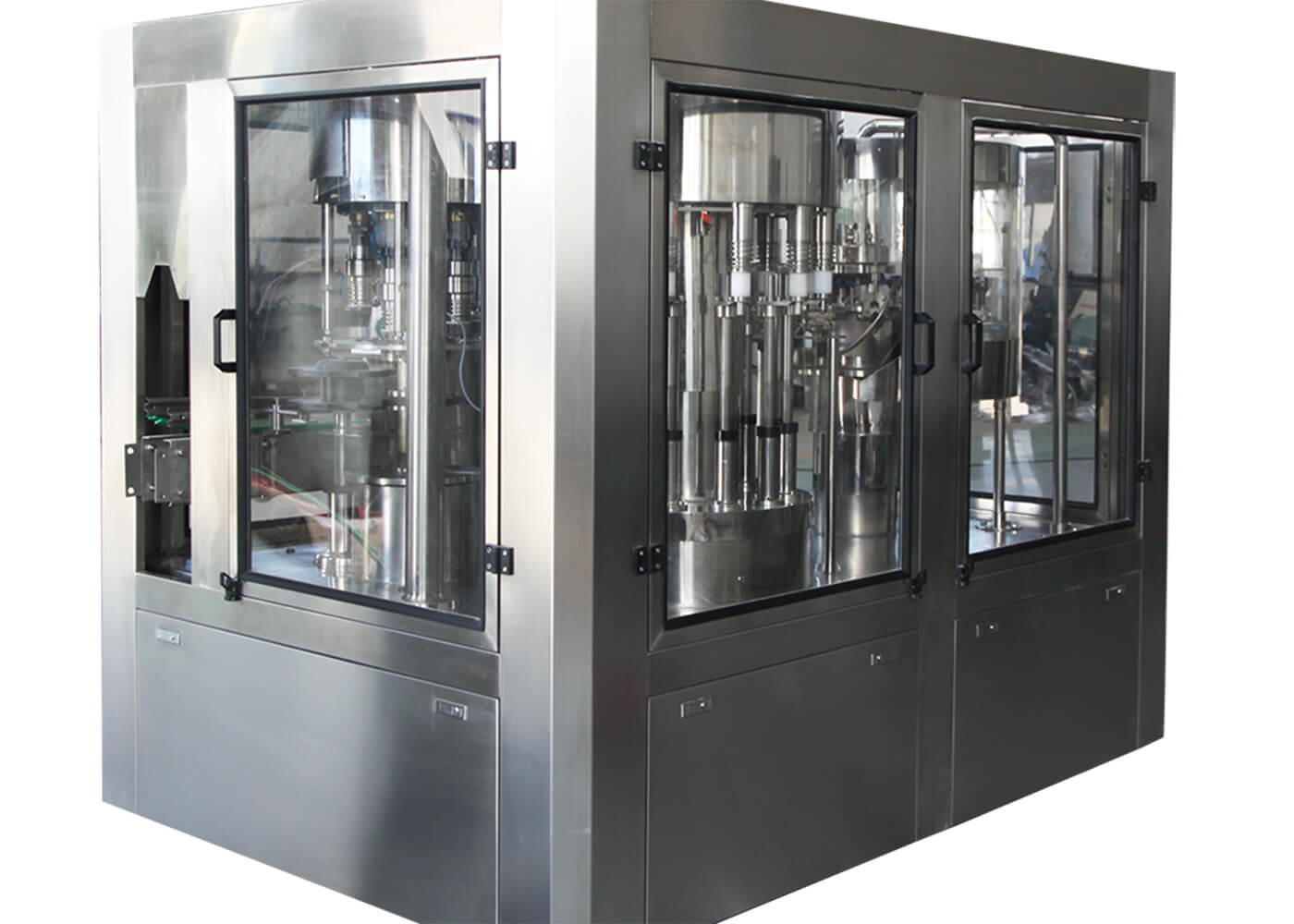

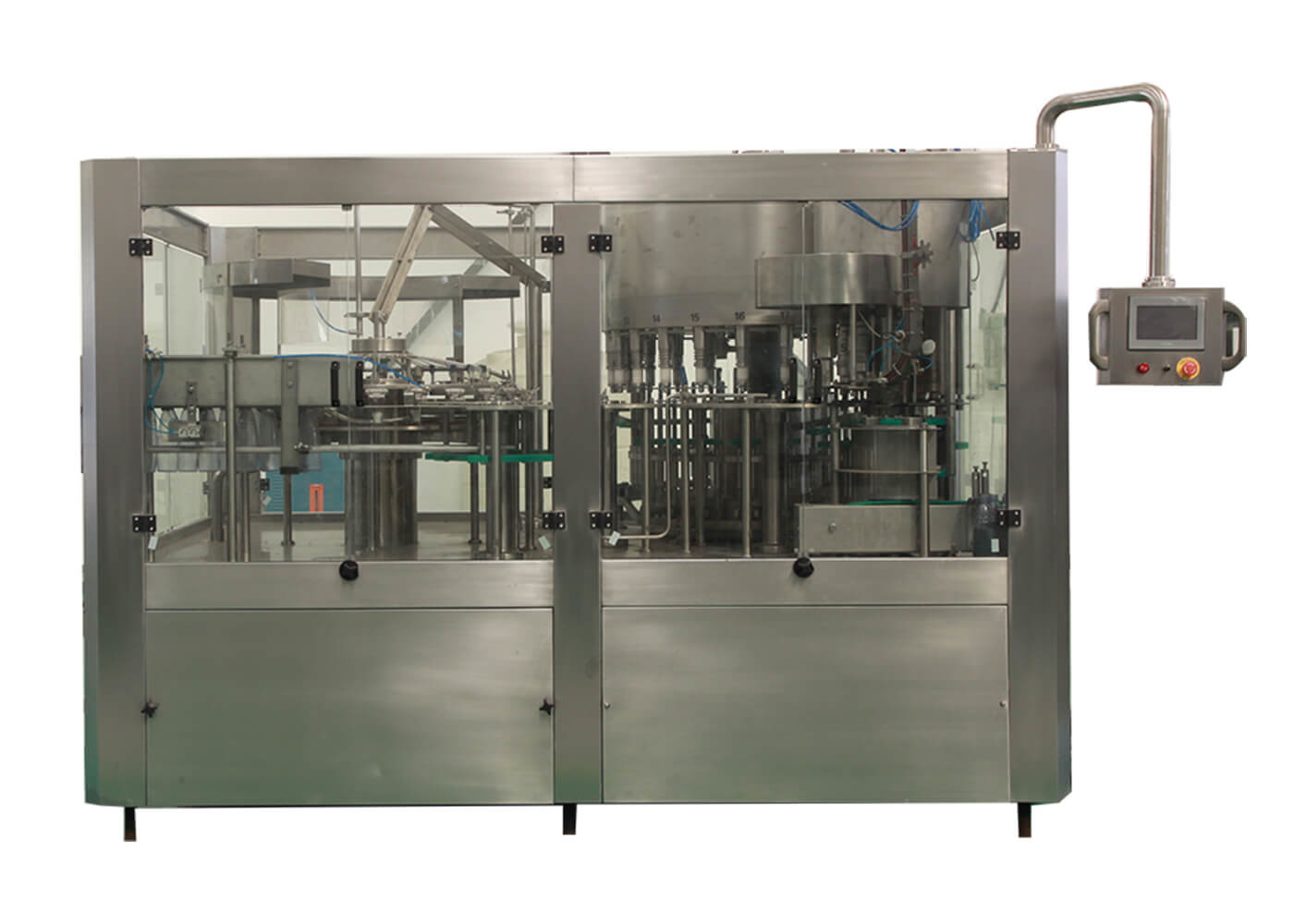

    Automatic Rinsing-Filling-Capping 3-in-1 Water Bottling Packaging Equipment



    General description



    3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.



    Main Configuration

    • Main motor: ABB
    • Sliding bearing: Igus
    • Frequency inverter: Mitsubishi
    • Touch screen: Pro-face or Mitsubishi
    • PLC: Mitsubishi
    • Pneumatic components: Airtac
    • Photocell switch: Leuze
    • Proximity switch: Leuze

    Technical Parameters



    Model: XGF14-12-5

    • Capacity: 5,000BPH (500ml)
    • Number of working stations: rinser 14, filler 12, capper 5
    • Filling method: Gravity filling
    • Applicable bottle: diameter 50-90mm, height 165-290mm
    • Air supply pressure: 0.7 MPa
    • Air consumption: 0.8M3/min
    • Rinsing water pressure: 0.2-0.25 MPa
    • Rinsing water consumption: 1 ton/hour
    • Rated voltage: 380V
    • Main motor power: 2.2Kw
    • Installed power: 3.5Kw
    • Dimensions: 2200×1550×2650mm (L×W×H)
    • Machine weight: 3000Kg

    Technical Model:



    Model Stable capacity for 500ml (bottle/hour) Remark
    XGF14-12-5 5000BPH
    XGF16-16-5 7000BPH
    XGF24-24-6 10000BPH
    XGF32-32-8 15000BPH
    XGF40-40-10 18000BPH
    XGF50-50-12 20000BPH Recommend our combiblock
    XGF60-60-15 24000BPH Recommend our combiblock
    XGF72-72-18 30000BPH Recommend our combiblock
    XGF80-60-20 36000BPH Recommend our combiblock



    SUS Bottling Packaging Water Filling Machines / Equipment For Beverage

    We can also provide turnkey/complete bottling water production line :
    1.Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
    2.Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
    3. Air conveyor for empty bottle loading
    4. Rinser-filler-capper 3 in 1 monoblock
    5. Cap loader load caps
    6. Code printer (Ink-jet printer/ laser-jet printer)
    7. Labeling machine ( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adheisive labeling machine )
    8. End packaging ( PE shrink wrapping machine / Carton packing machine )



    Please feel free to contact us if you are interested in our machines.
