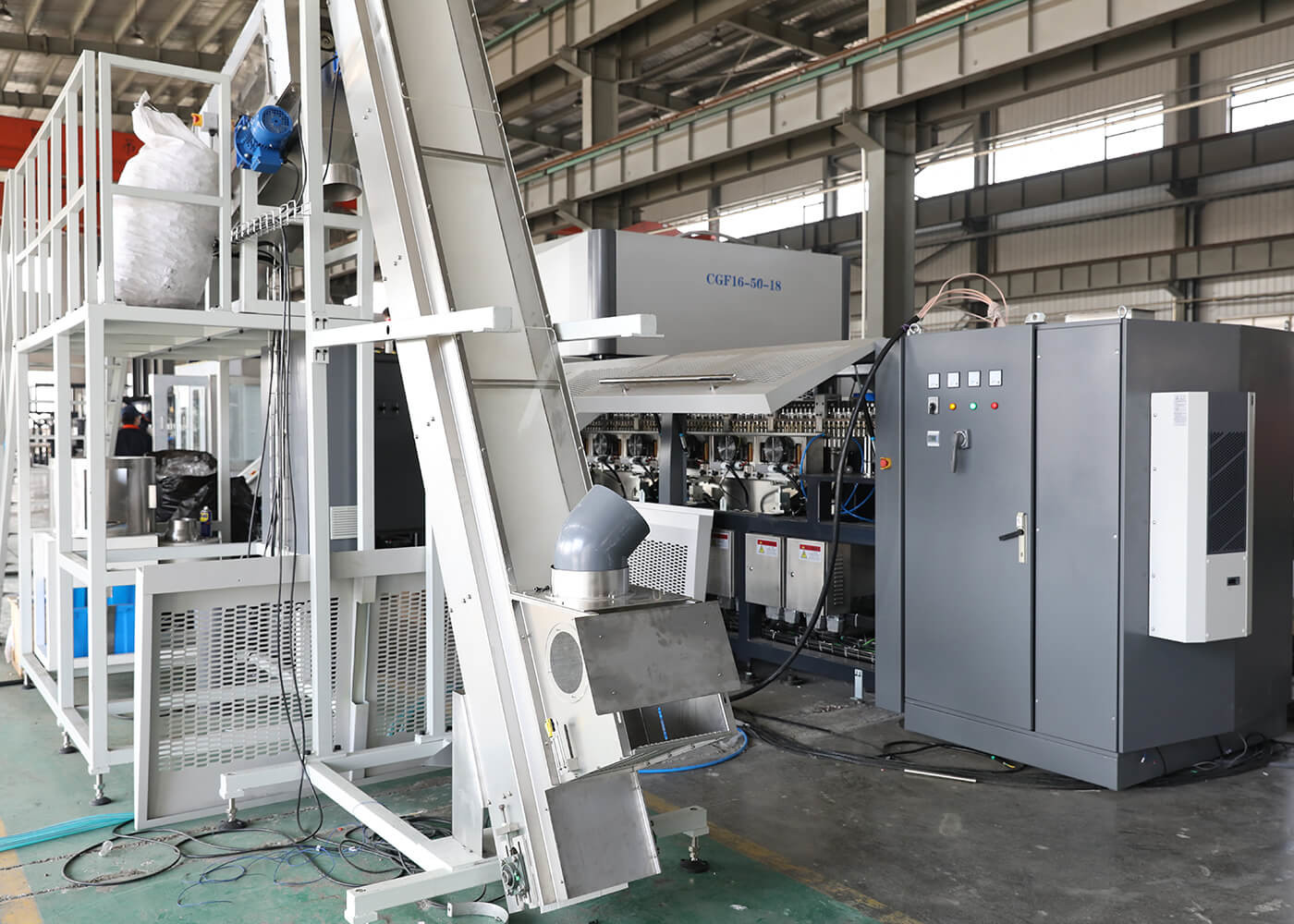

Carbonated Drinks Blowing Filling Capping Combiblock 3 In 1 Machine For PET Bottles

Carbonated Drinks Blowing Filling Capping Combiblock 3 In 1 Machine For PET Bottles

    • Carbonated Drinks Blowing Filling Capping Combiblock 3 In 1 Machine For PET Bottles
    • Carbonated Drinks Blowing Filling Capping Combiblock 3 In 1 Machine For PET Bottles
  • Carbonated Drinks Blowing Filling Capping Combiblock 3 In 1 Machine For PET Bottles

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: BFC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 90 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/year
    Contact Now
    Detailed Product Description
    Type: Filling Machine Voltage: 220V/110V/380V/440V
    Application: Beverage Driven Type: Electric
    Automatic Grade: Automatic After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Packaging Material: Wood Function: Blowing Filling Capping
    Bottle Type: PET Plastic Bottle Processing Types: Automatic Bottle Filling Line



    PET Bottles Carbonated Drinks Beverage 3-in-1 Blowing-Filling-Capping Packing Machine



    PET bottled water- blowing -filling-capping combiblock working process:


    PET preform -- Automatic preform loader -- Ion air to -- Blow the perform dust -- Oven heating preform -- Preform transfer arm -- Blower molds -- Sealing, stretching and blowing -- Bottle transfer arm -- Filler -- Downstream line



    Blowing Configuration:


    1. The machine is made of aluminium alloy, mild steel, stainless steel, alloy steel.
    2. Bearing is equipped with superior brands, imported bearing (Japan and Germany); Self lubrication bearing IGUS is used.
    3. High pressure valve is procured from NORGREN, EUGEN SEITZ (Swiss), FESTO(Germany) etc.
    4. High presser muffler is procured from the USA and NORGREN (Germany).
    5. The pneumatic system is procured from FESTO (Germany), SMC (Japan), NORGREN etc.
    6. Touch screen and the operation system is from Schneider and SIEMENS (Germany).
    7. Electric control system (PLC) is procured fromSIEMENS (Germany, Schneider etc.
    8. Photoelectric sensor is procured from TURCK (Germany), B & R (Austria), and BANNER (USA) etc.
    9. Transducer is procured from TURCK (Germany), SICK, B&R (Austria), OMRON (Japan) and BANNER (USA) etc.
    10. Contactor is procured from SIEMENS (Germany), Schneider etc.
    11. Amphenol connector is procured from PHOENIX (USA) and ABB etc.
    12. Stainless steel wire trunking (open installation) is adopted, which is convenient for wire arrangement, cleaning and inspecting.

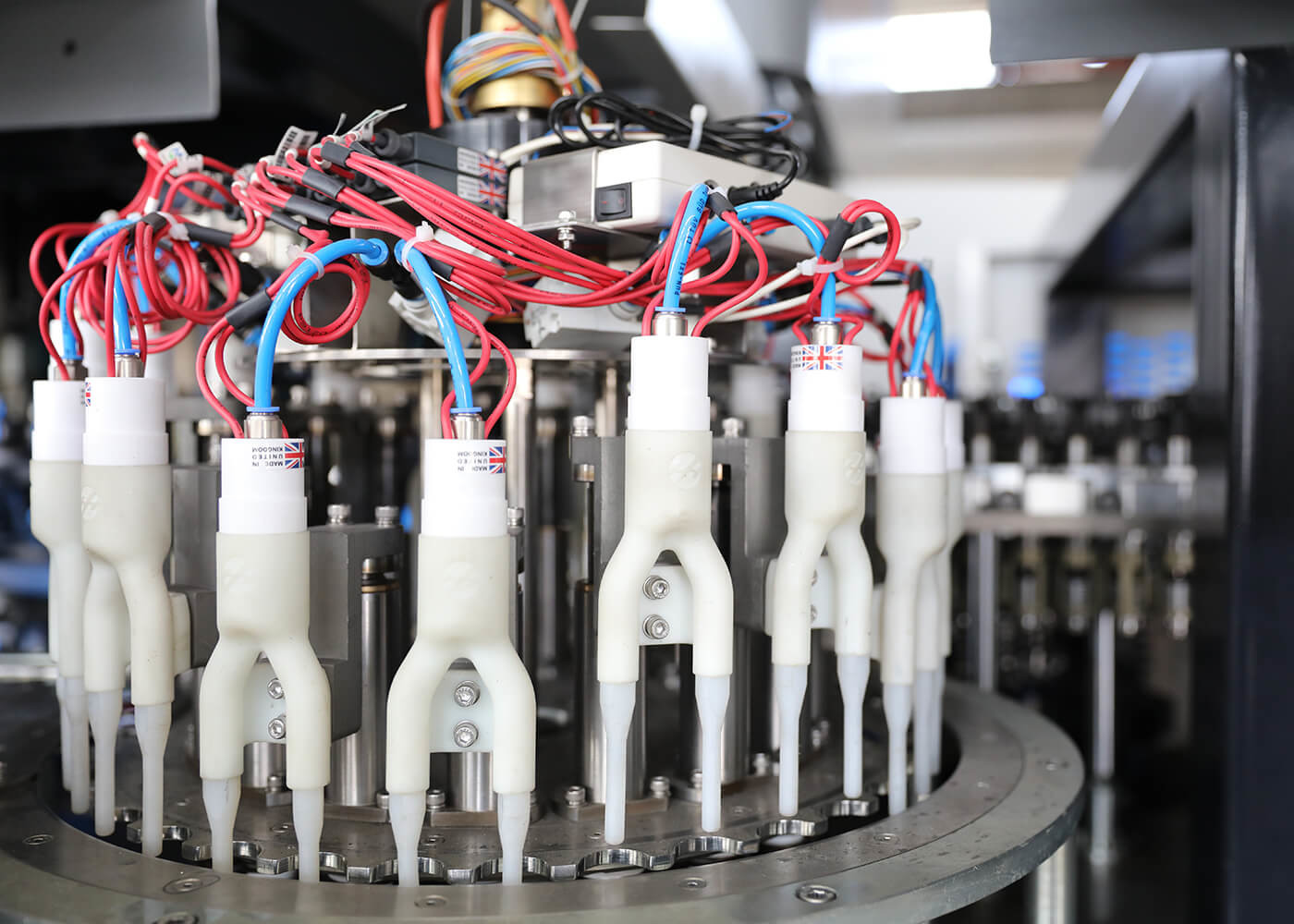

    Filling Configuration:


    1. The frame of the machine is made of superior mild steel, with rustproof coating treatment on the surface of the machine. Stainless steel (ANSI304) is covered on the frame.
    2. Stainless steel table with anti – pull technology is exclusively used, together with “O” type sealing ring. Leaking of bearing pedestal and supporting shaft can be minimized with this construction.
    3. The transmission system is right under the machine frame, drove by a main motor and transmitted by gear.
    4. Transmission gear arrangement is crossed with steel gear and nylon gear.
    5. Overloading protection device is equipped on the output shaft of the main motor.
    6. Control System
    7. The whole process from bottle – in to bottle – out of the 2 in 1 filling machine is controlled by PLC system.
    8. The operation can be done on the touch screen, capacity, count, incident type and spot can all be displayed on the screen. Incidence time and type etc. can be recorded automatically.
    9. All parts of pneumatic system are procured from FESTO (Germany).


    Model For water combiblock bottling line:



    NO. Model Capacity Remark
    1 8-24-8 12000bph
    2 12-32-10 18000bph
    3 16-40-15 24000bph
    4 20-60-18 36000bph



    Carbonated Drinks Blowing Filling Capping Combiblock 3 In 1 Machine For PET Bottles
