Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line

Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line
Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line
Basic Information
Place of Origin: China
Brand Name: Sunswell
Certification: CE.ISO,SGS
Model Number: Sunswell
Minimum Order Quantity: 1
Price: Negothiate
Packaging Details: Standard export wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per year
Get Best Price Contact Now
Condition: New Automatic Grade: Automatic
Bottle Type: 5 Gallon Barrel Or 3 Gallon Barrel Voltage: 380V 50HZ 3P Or Customized
Driven Type: Electric,Pneumatic Type: Filling Machine
Material: 304 Stainless Steel Warranty: 12 Months
Highlight:

bottled water filling machine

,

automated filling machine

Fully Automatic 3 Gallon 5Gallon Mineral Water Pure Water Production Line

List of Equipment

No

System

Item
  1.
 Bottle Loading Loading Conveyor
  1.
 Decapper Automatic Decapper
  1.
 Washer Automatic Outer Brusher
  1.
 Bottling Auto Loader
  1.
 Rinsing-filling-capping Monoblock
  1.
 Downstream Unloading Conveyor
  1.
 Light Inspection
  1.

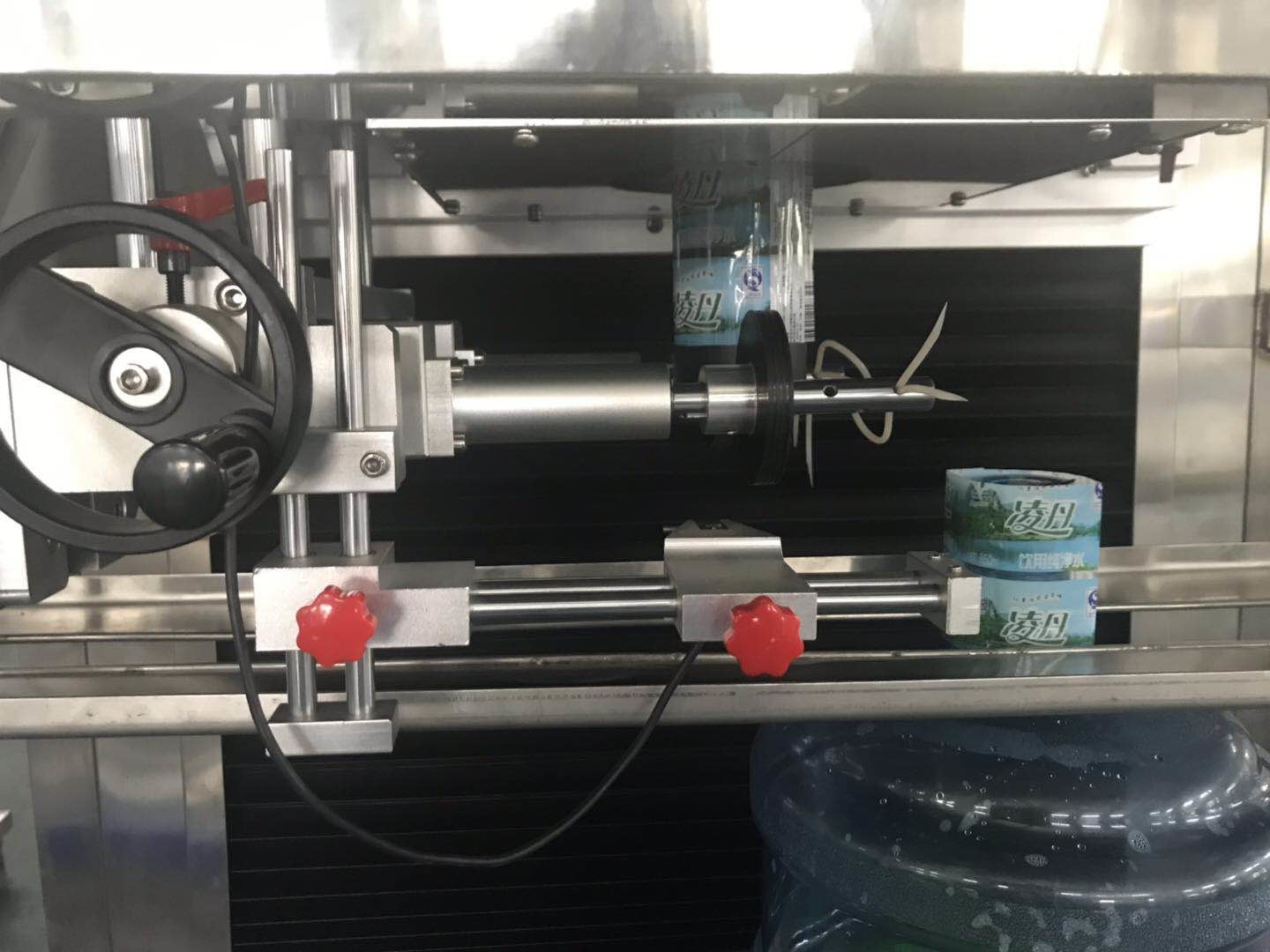

 Seal Shrinker
  1.
 Others Bridges, cable, wire tank
Pipelines, valves & fittings
Packaging & loading to Shanghai Port
Technical documents
Training
Auxiliary spare parts


Descriptions and Main Specifications of Equipments

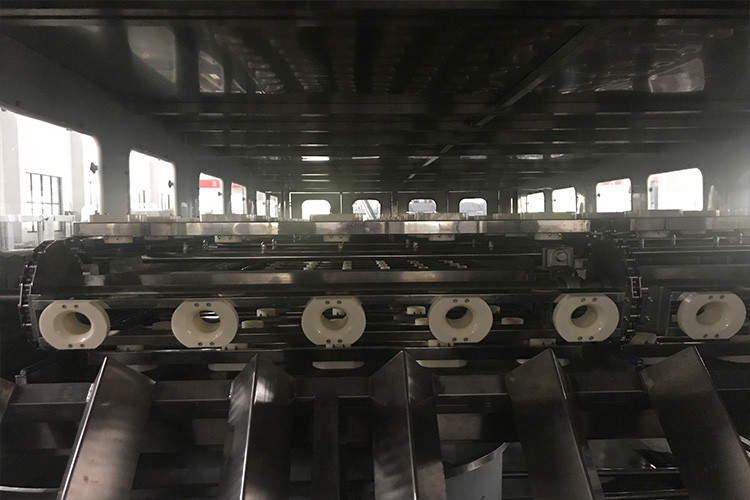

Brush External Bottle Washer

Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line 0

General description

Automatic external brusher is corollary equipment of 5 gallon barrel line which produces mineral water and pure water. Bottom and outside surface will be cleaned completely. Machine is made of stainless steel which anti-corrosion and easy cleanable. Adopt bottle-jamming inspection device to decrease damage rate. It is well designed with reasonable structure and high efficiency, operating stably with highly automation.



Main parameters

  1. Pneumatic components: AirTAC
  2. AC contactor: Schneider/SIEMENS
  3. Adopt stainless steel conveyor
  4. Material: S.S. 304
  5. Bearing has good waterproof structure.
  6. Starwheel motor:Shanghai 0.75kw
  7. Washing pump: CNP 0.37kw
  8. Dimension:1600×1100×1300

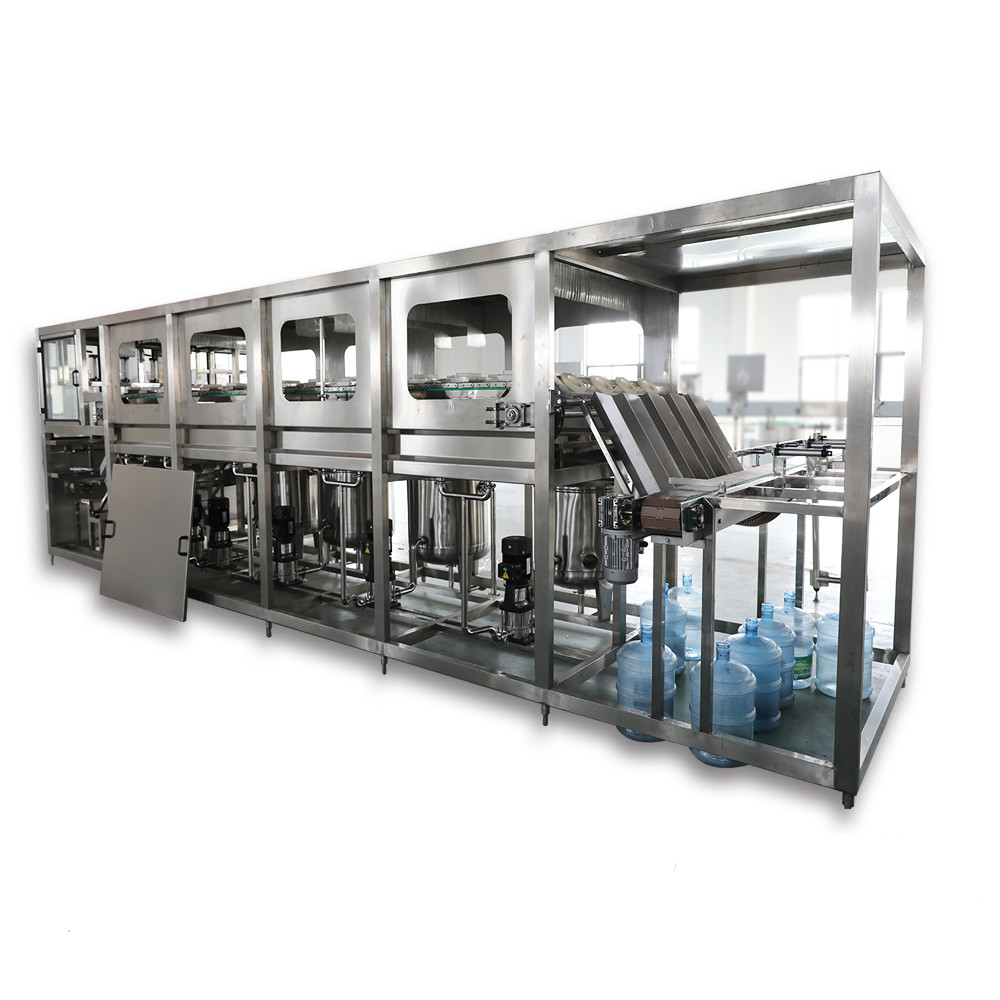

Washer/Filler/Capper

Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line 1

General description

TXG300 is the core equipment specially for 5 gallon filling line, which is the ideal equipment for producing mineral water, pure water and still water. It is made of quality stainless steel, anti-corrosion and easy to clean.

Main parameter

  • Model:TXG-300
  • Filling heads:2
  • Dimension:Rinser 5000*2300*2200mm
  • Filling volume: 5 gallon
  • Bottle specification:φ276×490mm
  • Capacity: 300BPH
  • Power consumption max 4KW
  • Washing procedure: total 12 steps: No.1 Empty bottle, No.2 No.3 and 4: alkali water washing; No.5 recycled water washing; and NO. 6 7 8: cl02 washing; No.9: dripping, No. 10 and 11: product water washing; No.12: dripping. Rinsing heads are hoisting type.
  • Cycle disinfectant, recycled on side, convenient for sampling and inspection. Each tank has low level alarming device. Chain moving for cleaning. Double-layer board avoids water mixing. High speed filling valves. Adopt chain type pressing caps.
  • Air source:pressure 0.5~0.6Mp,consumption 350L/M
  • Structure: transmission controlled by PLC.

Configuration (lye tank leaves steam joint)

  • PLC: MITSUBISHI
  • Pump: CNP
  • Pneumatic components: AirTAC
  • AC contactor: Schneider
  • Main motor: Shanghai Bolong
  • Equip automatic cap sorting and loading system
  • Equipment automatic malfunction protection device

Fully Automatic 3 Gallon 5 Gallon Water Filling Machine Pure Water Production Line 2
