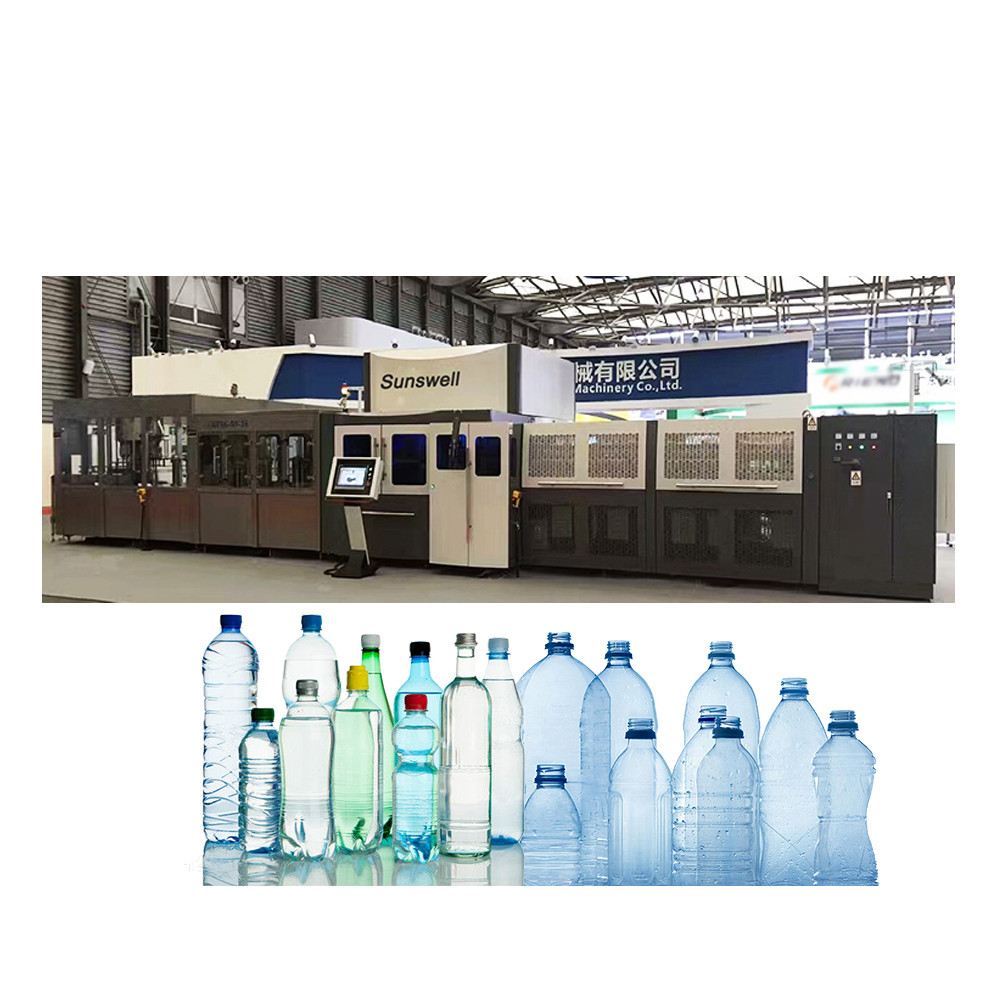

Sports Drink Blowing Filling Capping 3 In 1 Monoblock Servo Stretch Blower

Basic Information

Place of Origin:	China
Brand Name:	Sunswell
Certification:	CE,SGS,ISO
Model Number:	Sunswell

Minimum Order Quantity:	1 set
Price:	negotiate
Packaging Details:	standard export wooden case
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per year

Get Best Price Contact Now

Condition:	New	Voltage:	220V,380V
Application:	Beverage,Food,Commodity	Bottle Type:	PET Plastic Bottle
Automatic Grade:	Automatic,Semi-Automatic	Packaging Material:	Wood
Warranty:	12 Months	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts
Highlight:	automatic liquid filling machines , liquid filling equipment

24,000BPH (500ml PET)Sports Drink Blowing-Filling-Capping

3 in 1 Monoblock (Servo stretch Blower)

1 Descriptions and Specifications of Equipment

1-1. CGFR10-40-15 Blowing-filling-capping 3-in-1 Combiblock

-----the best solution for large scare bottling company

3-in-1 combiblock, combined with blowing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy. The combiblock avoids friction of bottles during air conveying and helps reducing bottle weight to reduce cost.

Main Features

* Blow Molding Machine

a) Machine operation adopts TFT touch screen with multi languages and friendly interface. Speed, shift capacity and technical specifications can be set on the menu.

b) High efficiency: 2,500 BPH/cavity (500ml water bottle), servo stretch system.

c) Double blowing system. Monitoring pressure change curve of each cavity during bottle forming and providing accurate timely parameters, easier for operator to regulate technical parameters and ensure quality stability.

d) Adopt cam organism and accurate mechanical arm transferring technology with high speed preform and bottle feeding, avoiding contamination.

e) Cam organism controls mold opening and clamping precisely with special mold clamping boost system and firm mold shelf structure; independent control of blowing parameters of each cavity; malfunction diagnosing function; enhanced neck sealing stability; regulating blowing pressure; stretching bar controls accurate preform axial stretching and 1st / 2nd blowing controls vertical stretching; regulating of 1st / 2nd blowing precisely ensures ideal distribution of bottle wall thickness.

f) Heating adopts 10-section far infrared temperature control; each heating lamp of pre-heating and regulating zone can be regulated; timely temperature monitoring system ensures technical stability and accuracy, avoiding over high temperature of outer preform wall; 10-20% electrical power is saved by this heating system.

g) Air recycling system (optional) may save compressed air by 30-50%.

h) Technical parameters like heating temperature and blowing time can be set according to different preforms and bottle design.

i) Fast mold changing (within 2 hours) reduces stop time and increases production efficiency.

j) Humanized design makes complicated industrial operation get used to habits.

k) Blowing mold is made of aluminum alloy with oxidization treatment on surface to prolong mold lifespan.

l) Preform infeed starwheel adopts preform block detecting device. When blocks, preform will be rejected and reset automatically.

m) Safety door is equipped with alarming device to protect operators.

* Transfer starwheel

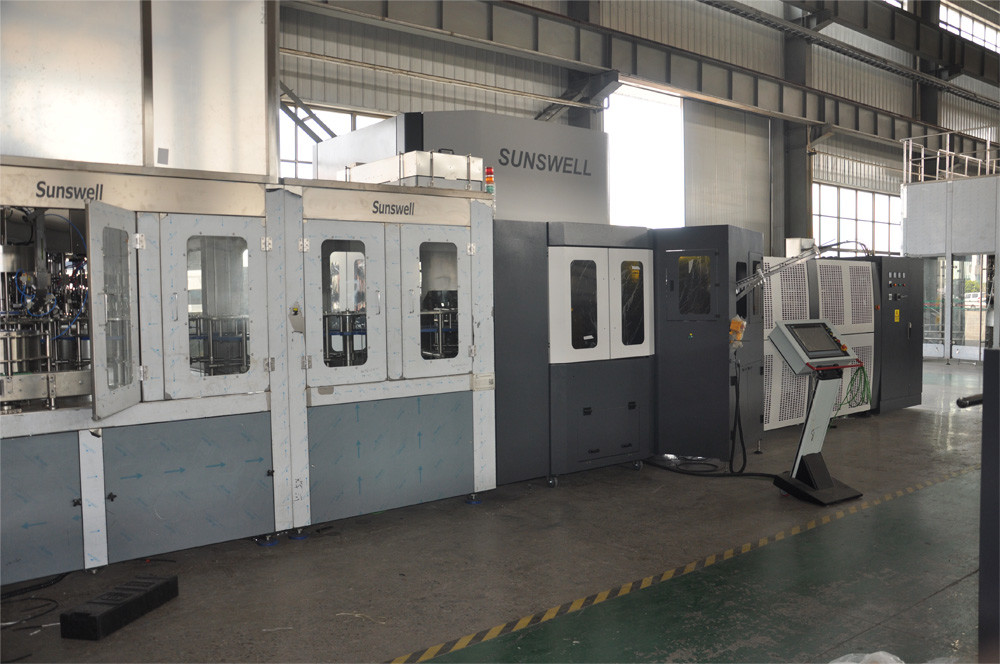

Sports Drink Blowing Filling Capping 3 In 1 Monoblock Servo Stretch Blower 2

a) Neck holding by s/s starwheel. No need to adjust machine height when changing different bottle size.

b) Bottle bottom holding transferring method for bottle outfeed by downward spiral curve.

c) Equipped with bottle jam protection device.

* Filler

a) Made of stainless steel.

b) Large flat bearing with teeth, stable and reliable performance.

c) Gravity filling.

d) Ring shape tank with float ball level control.

e) High speed and high accuracy filling valve with 200ml/s flowing speed

f) Filling valve equips dummy cup and can do CIP circularly.

g) With rotary spray ball in tank to ensure cleaning effect.

h) Lift by pneumatic cylinders.

* Capper

a) Magnetic constant torque capping head ensures stability and controls defective rate of capping less than 0.2%.

b) Cap dropping rail equips a group of photoelectrical switch for reverse cap detecting. When lack of cap, machine will be stopped automatically.

c) Bottle infeed detecting switch works with the pneumatic cylinder on cap starwheel to avoid feeding cap on no-bottle condition.

Bottle Outfeed Conveyor

a) Conveyor motor uses frequency control of motor speed, which keep pace with the combiblock, preventing overturned bottle.

b) Bottle outfeed conveyor equips photoelectrical switch. When bottle blocks, the speed of combiblock will be slowed down and stop.

* Stand

a) The table is a little bit inclined to avoid water accumulation.

b) Good drainage pipes.

* Electronic Control

The electronic components like PLC and transducer are from Mitsubishi, Omron, etc., The pneumatic devices are also from international famous brand.

Equipment Structure

* Stand

* Rotary blow molder

* Rotary filler

* Rotary capper

* Bottle infeed and outfeed system

* Control

Technical Parameter

Blow Molding
Machine height		3.15M
Number of mold (cavity)		10 pcs
Rated capacity		24,000BPH (500ml)
Bottle size		0.25-2.0L
Bottle diameter		50 mm to 96mm
Preform material		PET
The bottle preform height (ring)		≤140 mm
Holding ring diameter		≤φ36mm
Height of bottle blowing		≤335mm
Electrical specification
Power	AC380V (±10%) 3PH+PE 50/60Hz
Machinery installation power	260KW
Power (16g,0.5L,bottle water)	75-977KW
Bottle blowing process using compressed air
Purity of compressed air machine entry	Conform ISO8573-1
Machine inlet pressure	3.5-4MPa
Compressed air consumption	12Nm3/min(0.5L)
Configuration of air compressor	12Nm3/min+ Air compressor + line loss
Cooling water specification
Preform heating oven cooling
Cooling water inlet Temperature/Pressure			18-22℃/5bar
The cooling water flow rate /PH			4.0m3/h/PH 7-8
The heating oven cooling water Import and export temperature difference			8-10℃
Mold Cooling
Cooling water inlet temperature / pressure			8-15℃/7ar
The cooling water flow rate /PH			12m3/h PH 7-8
The heating oven cooling water Import and export temperature difference			3.0℃
Other
Outdoor temperature 40 - (-5) ℃. Bottle blowing locomotive between 20 to 25 ℃ ambient temperature. Humidity with 60-70% advisable
A) cooling water shall not contain calcium or metal impurity, total hardness (CaCO3) is less than 140. B) pollutant particle size should be no greater than 0.1 mm; C) need to join the right amount of antifreeze preservatives.
The machine bearing: 2.5T/M2
Filling and Capping
Station number				Filler 40, Capper 15
Rated capacity				24000BPH/Hour (500ml/Bottle)
Filling type				Counter pressure Filling
Suitable bottle				Diameter: φ55-100, bottle height:150-310
Pneumatic pressure				0.7 MPa
Air consumption				1m3/min
Voltage				380V
Main motor power				4.5Kw
Overall dimension				(L×W×H): 4617mm×4469mm×2450mm
BLOW FILL CAP				(L×W×H): 17000mm×7000mm×3550mm

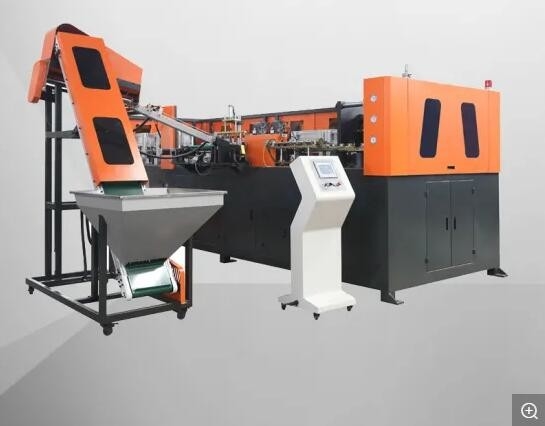

Sports Drink Blowing Filling Capping 3 In 1 Monoblock Servo Stretch Blower 5
