Automatic Beverage Processing Equipment Filling Washing Capping Bottling Packaging

Automatic Beverage Processing Equipment Filling Washing Capping Bottling Packaging

    • Automatic Beverage Processing Equipment Filling Washing Capping Bottling Packaging
    • Automatic Beverage Processing Equipment Filling Washing Capping Bottling Packaging
    • Automatic Beverage Processing Equipment Filling Washing Capping Bottling Packaging
    • Automatic Beverage Processing Equipment Filling Washing Capping Bottling Packaging
  • Automatic Beverage Processing Equipment Filling Washing Capping Bottling Packaging

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: BRXGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Voltage: Customized Application: Beverage
    Driven Type: Electric Type: Filling Machine
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Packaging Type: Bottles
    Packaging Material: Wood Warranty: 1 Year
    Material: Stainless Steel 304/316 Function: Bottle Washing Filling Capping
    Product Name: Juice Filling Machine Bottle Type: Galss Bottle

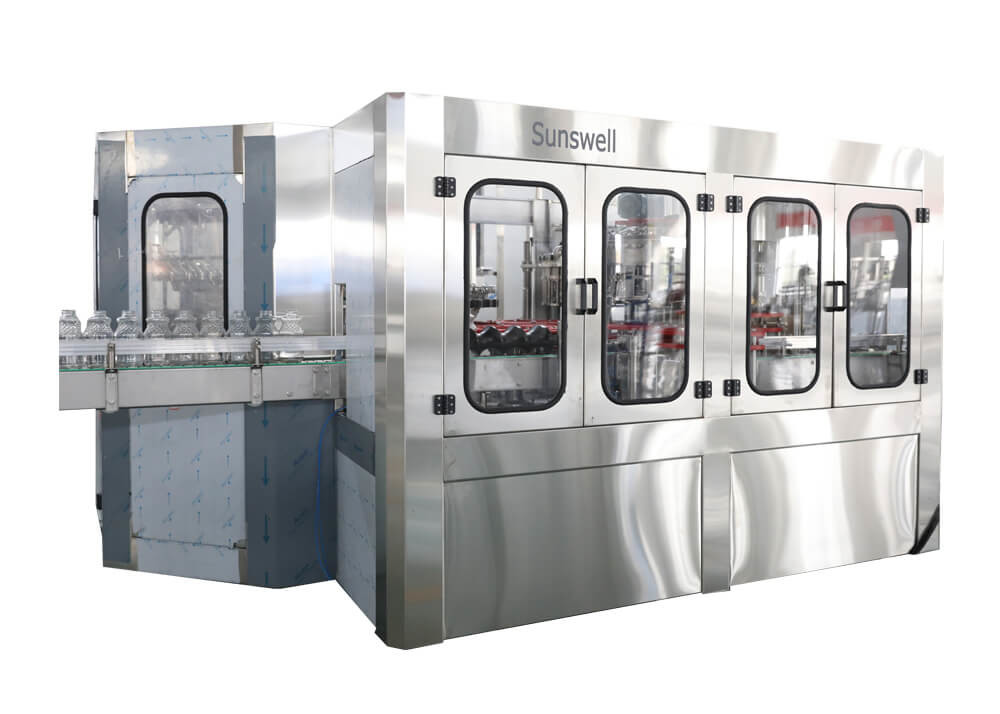

    Automatic Glass Bottle Beverage Liquid Hot Filling Washing Filling Capping Bottling Packaging Machine



    General description:

    Glass bottle water filling for glass bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to room filling processing demands of non-carbonated water and alcoholic drinks to be one of the advanced room filling production line.

    This Dice filler is special designed for fruit meat filling, low than 5mm fruit meat or chunk is ok for this model.



    Process:

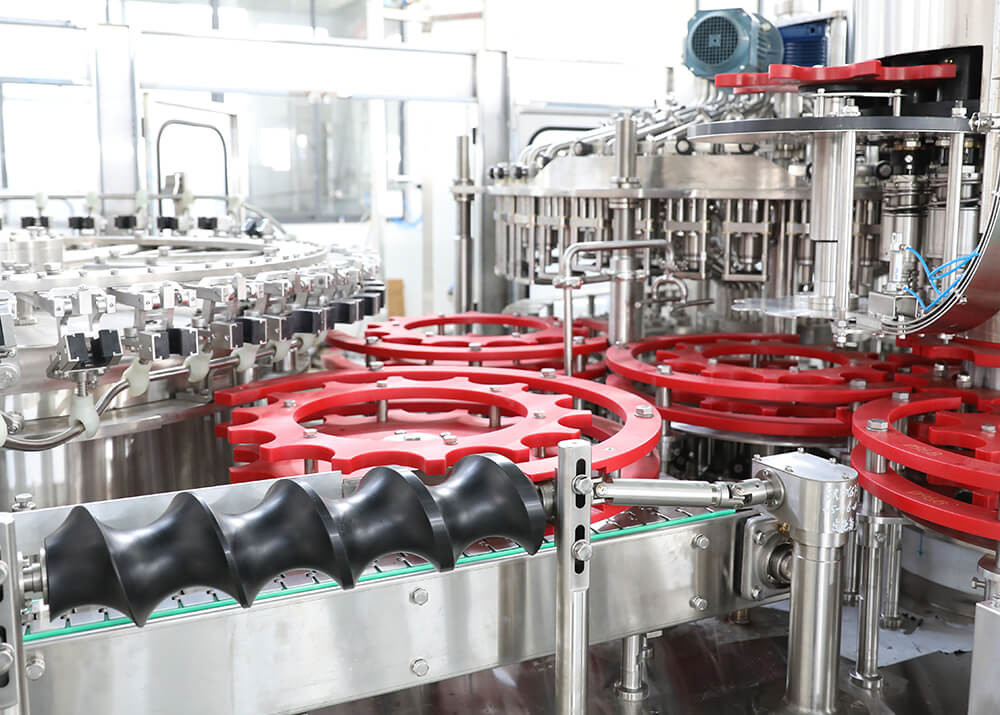

    Bottle enterinto machinery by screw device, then, through the volumetric cup to measure the volume of the fruit pulp, when the bottle moved to the filling position, the filling valve will be open by a mechanical device, through some angle filling, then to outlet starwheel.



    Main configuration:

    1) Material of filling valve: Stainless steel SUS304.
    2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.
    3) Main motor: ABB/SEW/SIEMENS
    4) Sliding bearing: Igus.
    5) Frequency inverter: MITSUBISHI.
    6)Touch screen: PROFACE.
    7) PLC: MITSUBISH.
    8) Pneumatic components: AIRTAC.
    9) Seals: Busak+Shamban.
    10) Photocell switch and proximity switch: TURCK



    Wahing part:



    Automatic Beverage Processing Equipment Filling Washing Capping Bottling Packaging

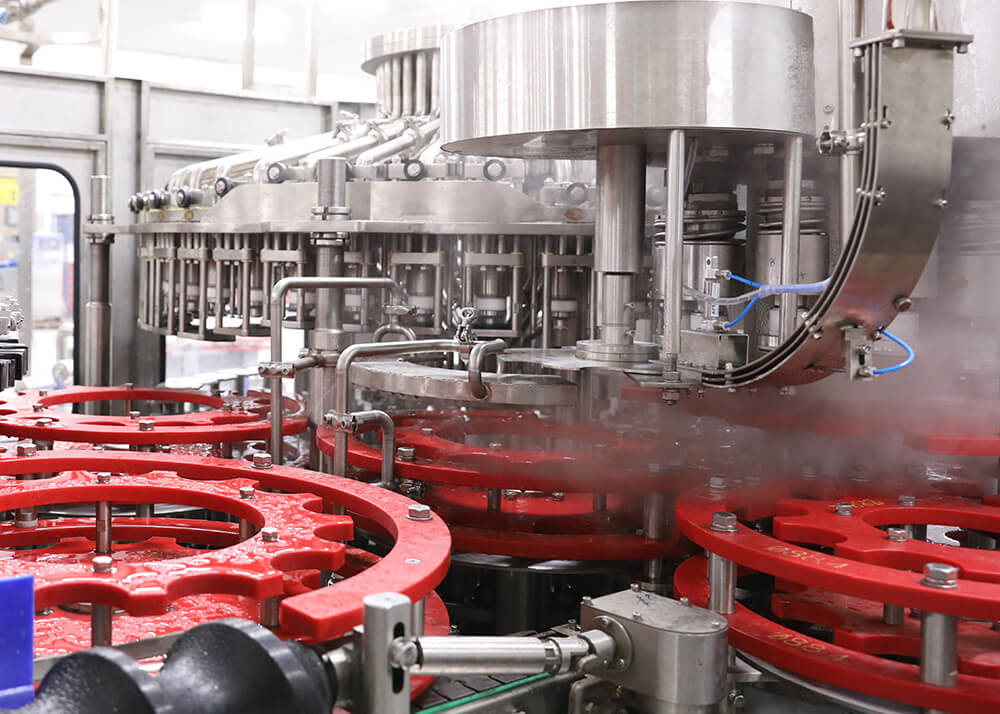

    Filling part:



    Automatic Beverage Processing Equipment Filling Washing Capping Bottling Packaging



    Capping part:



    Automatic Beverage Processing Equipment Filling Washing Capping Bottling Packaging


    Technical parameters:



    Model RCGF12125 RCGF18186

    RCGF

    24248

    RCGF

    323210

    RCGF404012 RCGF505012 RCGF606015 RCGF808020
    washing, filling and capping heads 12-12-5 18-18-6 24-24-8 32-32-10 40-40-12 50-50-12 60-60-15 80-80-20
    Production capacity(600ml)
    (B/H)
    2000-4000 5000-7000 8000-12000 12000-15000 16000-20000 20000-24000 25000-30000 35000-40000
    suitable bottle specification(mm) φ=50-110=170 330-2250ml
    Washing pressure(kg/cm 2 ) 2-3
    Motor power(kw) Main motor
    2.2kw
    Main motor
    2.2kw
    Main motor
    3kw
    Main motor
    5.5kw
    Main motor
    7.5kw
    Main motor
    11kw
    Main motor
    15kw
    Main motor
    19kw
    Overall dimensions (mm) 2400×1650
    ×2500
    2600×1920
    ×2550
    3100×2300
    ×2800
    3800×2800
    ×2900
    4600×2800
    ×2900
    5450×3300
    ×2900
    6500×4500
    ×2900
    7680×6640
    ×2850
    Weight (kg) 2500 3500 4500 6500 8500 9800 12800 15000
