Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time

Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time

    • Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time
    • Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time
    • Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time
    • Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time
    • Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time
    • Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time
  • Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: BRXGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Driven Type: Electric Type: Filling Machine
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Packaging Material: Wood
    Warranty: 1 Year Material: Stainless Steel 304/316
    Function: Bottle Washing Filling Capping Product Name: Juice Filling Machine



    Automatic Glass Bottle Juice Filling Packing Plant Bottling Production Line Beverage Processing Machine

    General description:
    The machine for glass bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to room filling processing demands of non-carbonated juice, tea, vitamin drinks and functional drinks to be one of the advanced room filling production line.


    Main configuration:

    • Material of filling valve: Stainless steel SUS304
    • Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304
    • Main motor: ABB
    • Sliding bearing: Igus
    • Frequency inverter: Mitsubishi

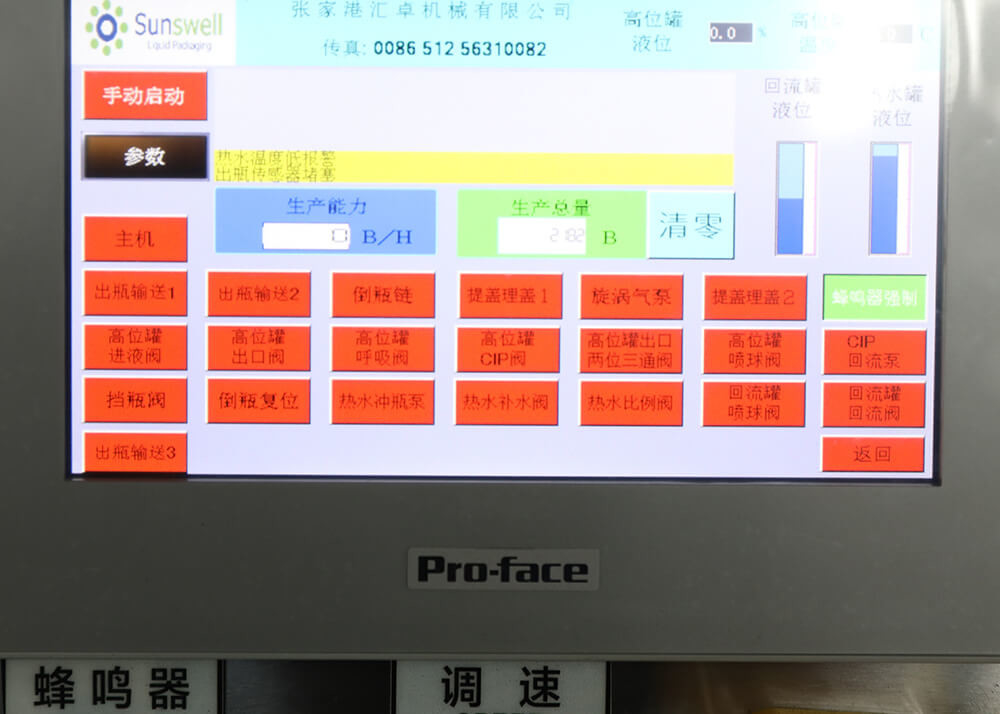

    • Touch screen: Pro-face
    • PLC: Mitsubishi
    • Pneumatic components: Airtac
    • Photocell switch: Sick
    • Proximity switch: Sick

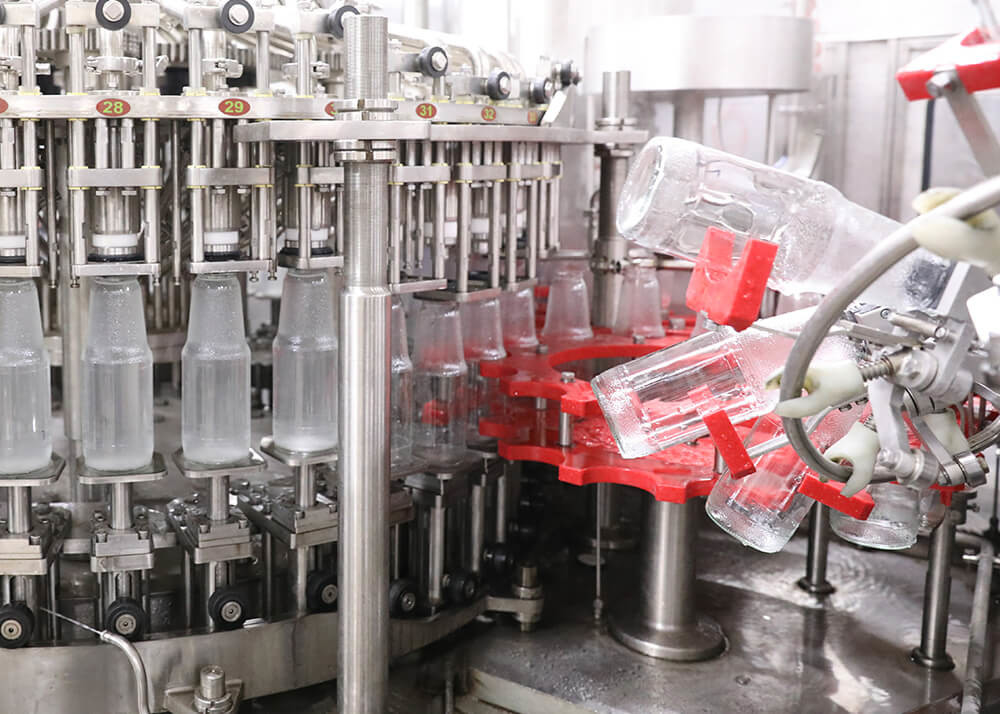

    Wahing:

    Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time

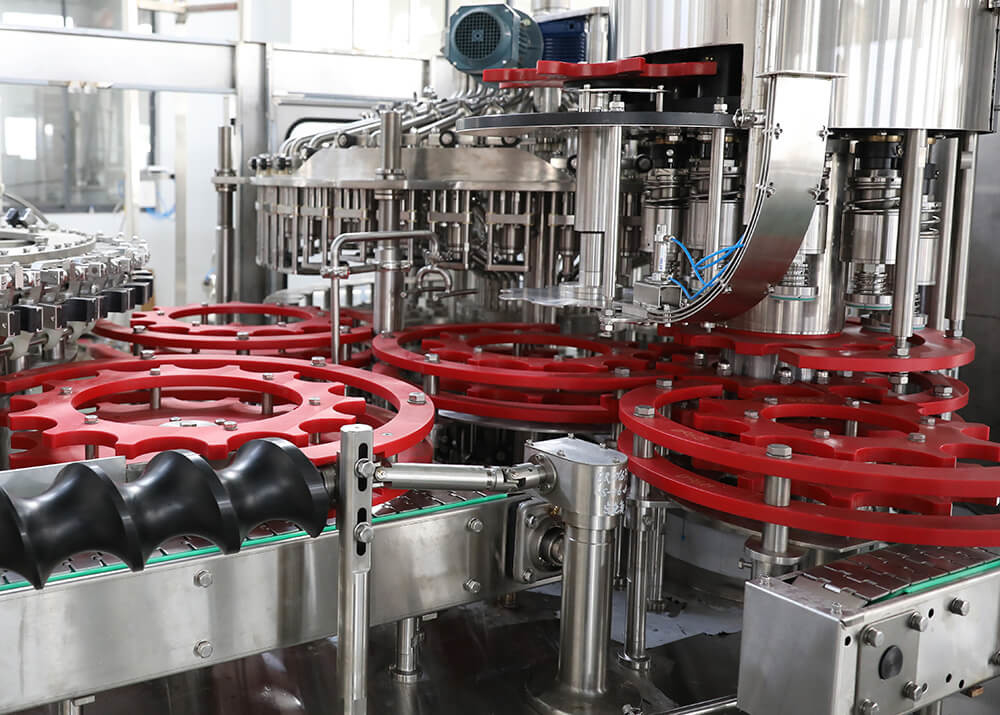

    Filling:

    Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time

    Capping:

    Bottling Beverage Production Line , Juice Filling Packing Plant Long Life Time

    Complete line composition:

    • Washing-filling-capping 3-in-1 monobloc
    • Hot water washing system
    • Tilting device after filling
    • Cooling tunnel
    • Ropp hot melt glue labeling machine (self adhesive, PVC labeling machine offered)
    • shrink wrapping machine
    • Stainsteel bottle conveyors linked of the whole line.

    Technical parameters:


    ModelRCGF12125RCGF18186RCGF24248RCGF323210RCGF404012RCGF505012RCGF606015RCGF808020
    washing, filling and capping heads12-12-518-18-624-24-832-32-1040-40-1250-50-1260-60-1580-80-20
    Production capacity(600ml)
    (B/H)
    2000-40005000-70008000-1200012000-1500016000-2000020000-2400025000-3000035000-40000
    suitable bottle specification(mm)φ=50-110=170 330-2250ml
    Washing pressure(kg/cm 2 )2-3
    Motor power(kw)Main motor
    2.2kw
    Main motor
    2.2kw
    Main motor
    3kw
    Main motor
    5.5kw
    Main motor
    7.5kw
    Main motor
    11kw
    Main motor
    15kw
    Main motor
    19kw
    Overall dimensions (mm)2400×1650
    ×2500
    2600×1920
    ×2550
    3100×2300
    ×2800
    3800×2800
    ×2900
    4600×2800
    ×2900
    5450×3300
    ×2900
    6500×4500
    ×2900
    7680×6640
    ×2850
    Weight (kg)2500350045006500850098001280015000
