Sus Pure Water Filling Machines Automatic Mineral Water Production Line

Sus Pure Water Filling Machines Automatic Mineral Water Production Line

Sus Pure Water Filling Machines Automatic Mineral Water Production Line

Product Details:

Place of Origin: China
Brand Name: Sunswell
Certification: CE, ISO, SGS, UL
Model Number: CGF32-32-6 5L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Contact Now
Detailed Product Description
Machine:: Filling Machine Application:: Beverage
Packaging Type:: Bottles Automatic Grade: Automatic
Driven Type: Electric Condition: New
Packaging Type: Bottles Power: By Order



Automatic Mineral Water Production Line Plant Turkey Cost Pure Water Filling Machine





Applications:

Still water, pure water, RO water, mineral water, sparkling water, etc. in 3L, 4L, 5L, 6L, 8L, 10L bottles and jars



Product Application:
1.The mineral water production line use direct connection technology between air conveyor and in-feeding star-wheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.
2. Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional star-wheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and star-wheel such little nylon parts need to be changed.
3. Specially-designed rinsing grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine.

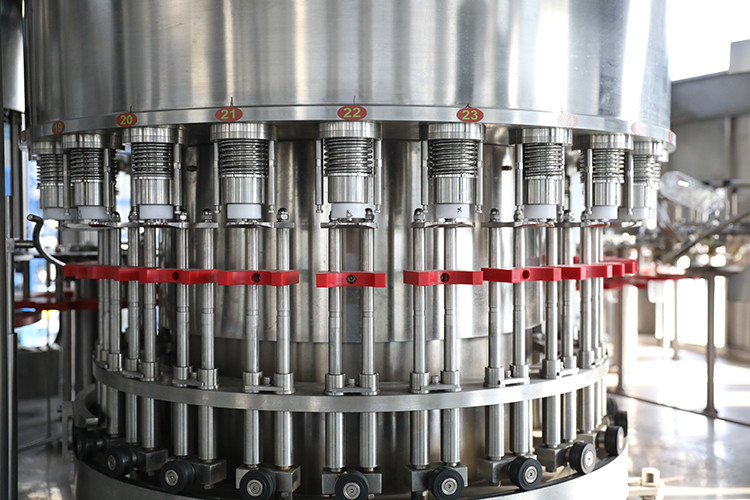

4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.
5. Splint of star-wheel using twist descending way to simplify the process of bottle-size-changing.



Features:

1. The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components.
2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine.
3. Spring type rinsing catcher can wash both inside and outside of the bottle.
4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling.
5. Magnetic powered cap device ensures tightness and prevents damage of the caps.
6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage.
7. Built-in safeguard mechanism ensures the safety of operator and machine.
8. High efficient air clean filter system ensures high sanitary requirements.
9. Low overall machine noise.
10. Self-lubricating system imported from America provides continuous smooth operation.



Specifications:

Model

CGF32-32-6

Number of working positions

rinser 32, filler 32, capper 6

Rated capacity

5,000BPH (5L)

Filling method

Gravity filling

Air supply pressure

0.7 MPa

Air consumption

0.8M3/min

Rinsing water pressure

0.2-0.25 MPa

Rinsing water consumption

2.4 tons/hour

Main motor power

3Kw

Installed power

4.5Kw

Dimensions

4420×3255×2700mm (L×W×H)

Machine weight

7800Kg
