10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level Sensor

10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level Sensor

    • 10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level Sensor
    • 10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level Sensor
    • 10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level Sensor
    • 10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level Sensor
  • 10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level Sensor

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE,ISO,SGS
    Model Number: Depend on capacity

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD 15000 per unit
    Packaging Details: Standard export wooden case
    Delivery Time: 45 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 units per year
    Contact Now
    Detailed Product Description
    Processing: Filling Machine,Washing,capping Packaging Type: Bottles,Barrel,Cans
    Voltage: 220V/380V,50Hz-60Hz Power: By Order
    Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation,Free Spare Parts



    General description:

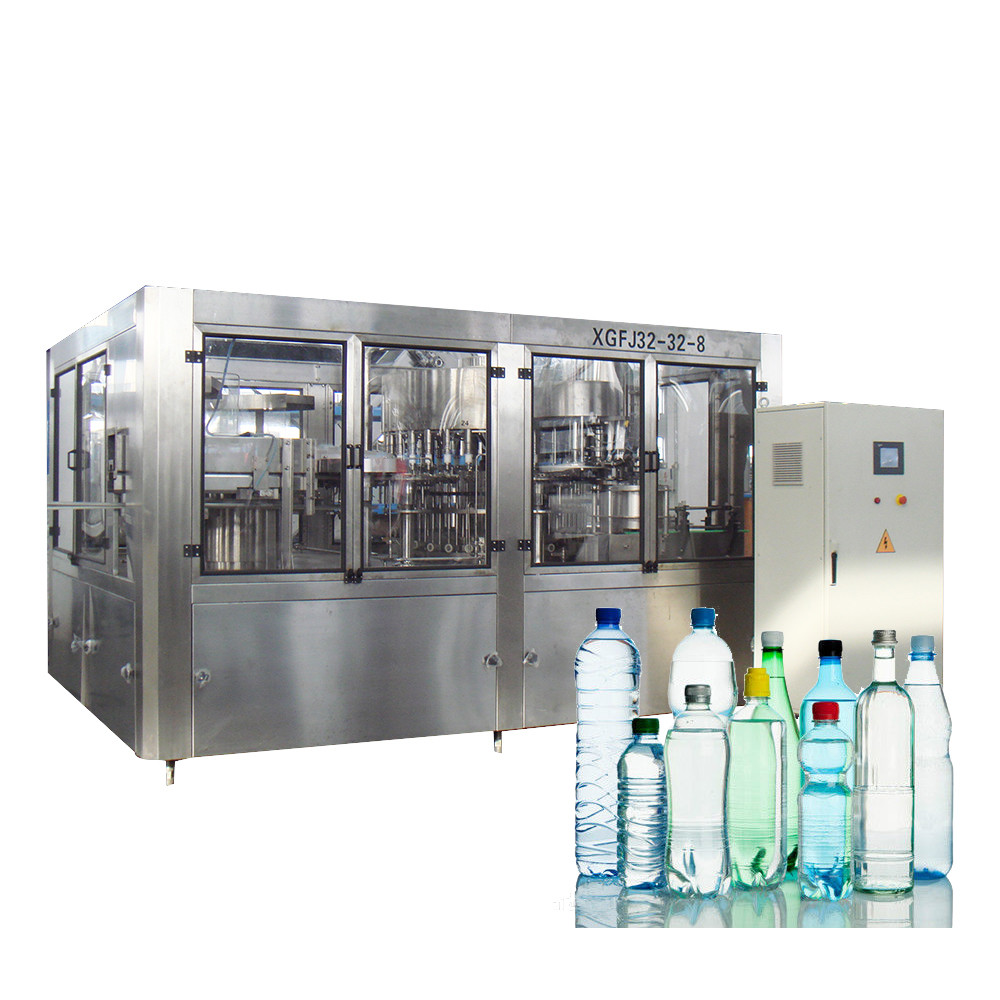

    3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure
    water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

    javascript:void(0)

    Equipment structure:
    Base
    Rotary rinser
    Rotary filler
    Rotary capper
    Bottle infeed and outfeed system

    Controlling cabinet

    Technical paremeters:

    Model
    XGF 14-12-5
    XGF 16-16-5
    XGF 24-24-6
    XGF 32-32-8
    XGF 40-40-10
    XGF 50-50-12
    XGF 60-60-15
    XGF 72-50-18
    XGF 80-60-20
    Capacity
    (BPH/500ml)
    5000
    7000
    10000
    15000
    18000
    21000
    24000
    30000
    36000

    Details:

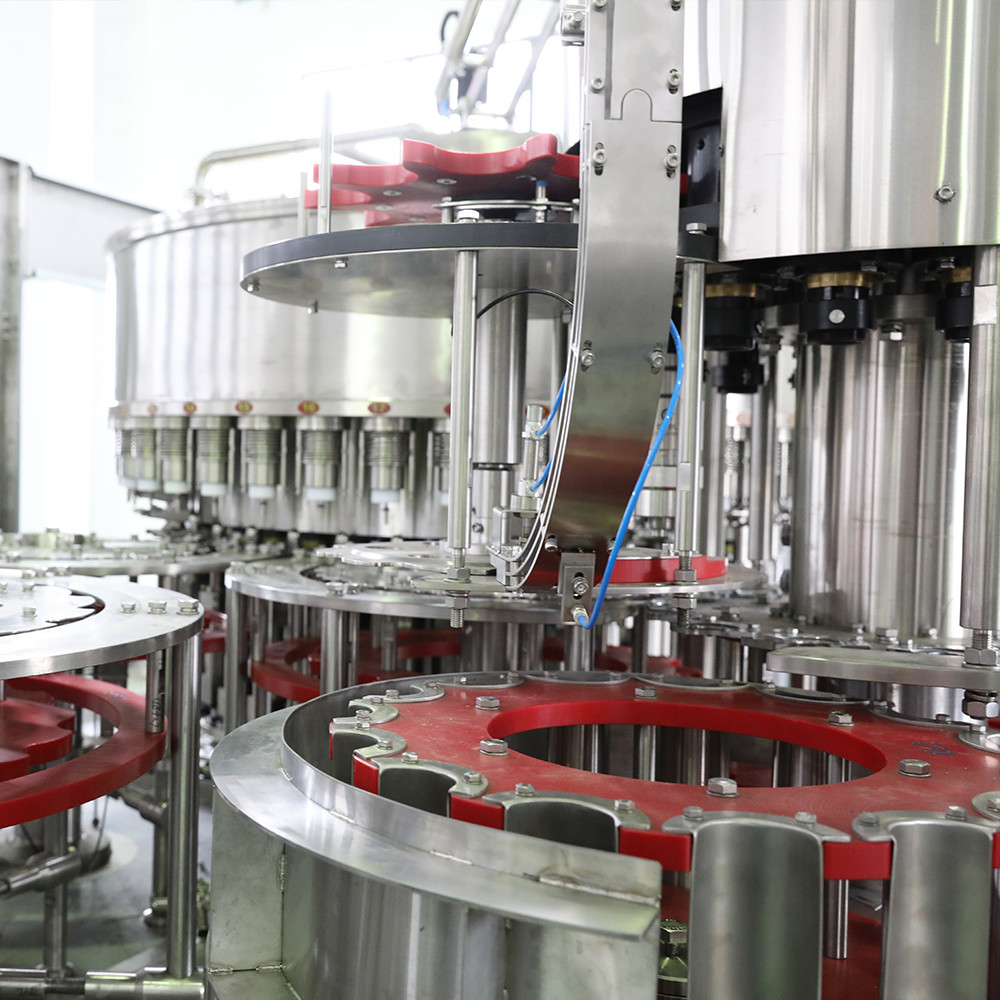

    10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level SensorRinser



    The empty bottles can be turned over 180°along the conveying rail. The machine applies unique overturning bottle clamp,which is made of SUS304. The bottle clamp grips bottle at the neck position, avoiding bottle mouth contamination. The bottle clamp equipped with high efficient spray nozzle,which spray droplet with 15° angle ,ensures to wash all side of the bottle, and can save the water. The rinser is driven by driving system inside the machine frame via gear.

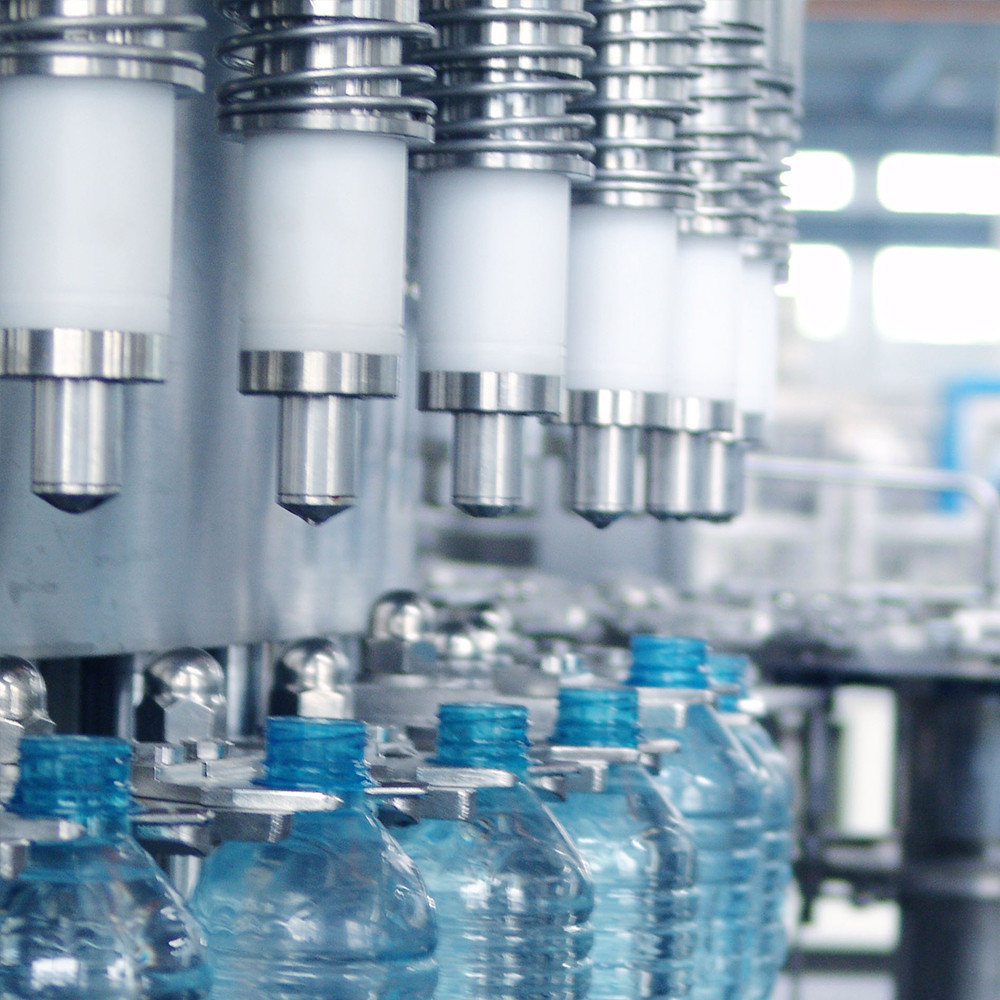

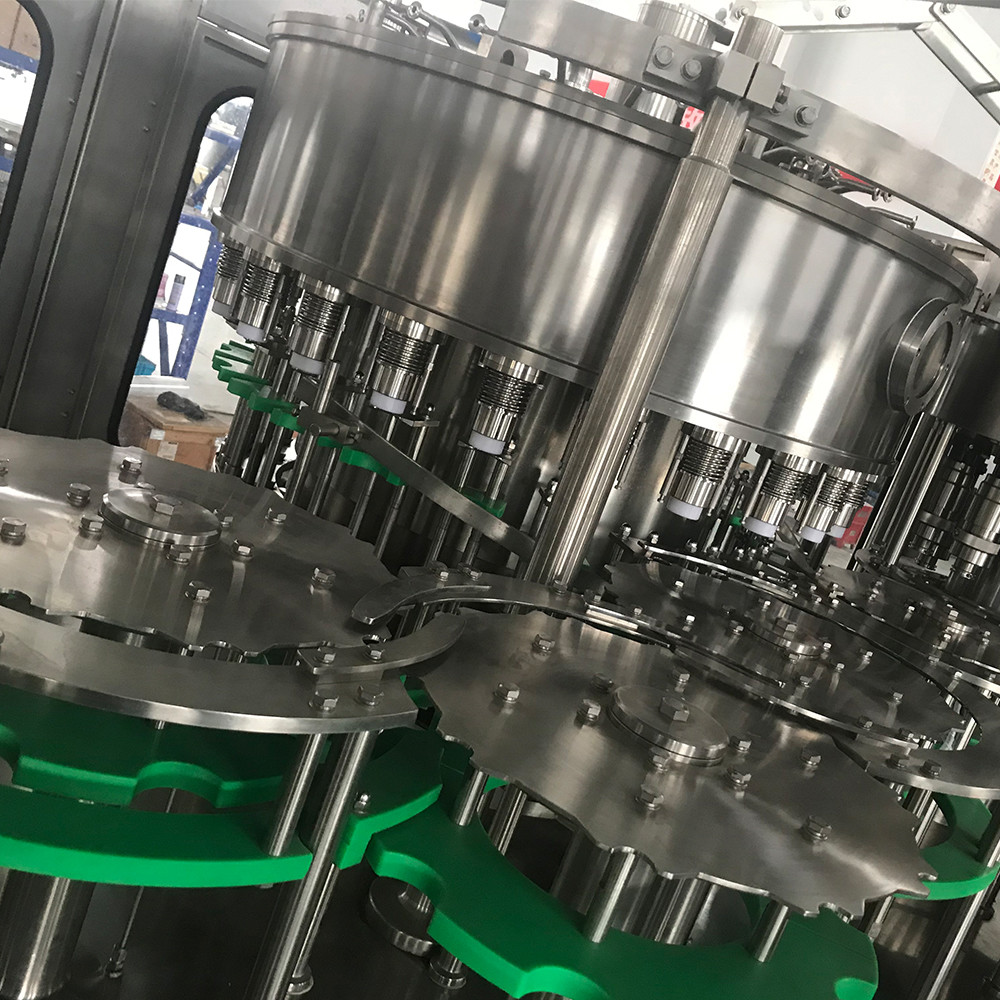

    10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level SensorFiller

    Filling valves and tank are made of stainless steel SUS304 Gravity filling. Ring shape tank with float ball level control. High speed and high accuracy filling valve with 150ml/s flowing speed Bottles go up and down in the function of cam through elevator to process filling Large flat bearing inside the machine frame,stable and reliable performance.



    10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level SensorCapper

    In the screw capping part,it installed photoelectrical control,when it has no cap,or the cap is bad,the machine will stop automatically. Magnetic constant torque capping head ensures stability and controls defective rate less than 0.2%. Cap dropping rail equips a group of photoelectrical switch for reverse cap detecting.When lack of cap,machine will stopp automatically. Bottle infeed detecting switch works with the pneumatic cylinder on cap starwheel to avoid feeding cap on no-bottle condition.



    10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level SensorBottle infeed

    Bottle infeed by combination of infeed grippers.
    Equipped with bottle jam protection device.



    10000BPH Washing Filling And Capping Machine Small Scale Bottle Liquid Water Level SensorTransfer Starwheel

    The material is super-corrosion stainless steel.

    The wheel has block bottle protect device.
    Associated Equipments:
    _________ Air Drier___________Date Printer ___________Cap Sterilizer _________Liquid Nitrogen Applicator
