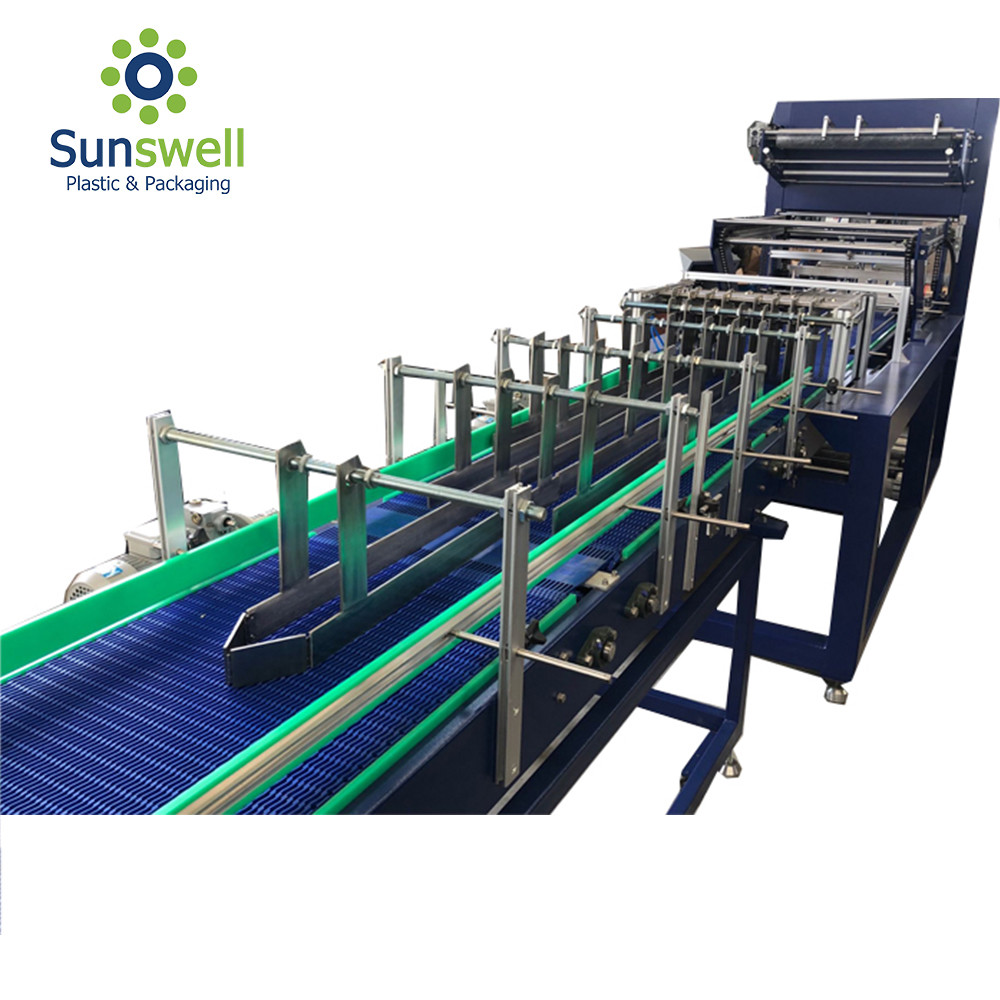

High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic

High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic

    • High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic
    • High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic
    • High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic
    • High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic
  • High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE,ISO,SGS
    Model Number: MB-150

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD 9000 per unit
    Packaging Details: Standard export wooden case with film arround
    Delivery Time: 45 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 units per year
    Contact Now
    Detailed Product Description
    Condition: New Driven Type: Electric
    Voltage: 380V/50HZ Or 220V/60HZ Type: Wrapping Machine
    Packing Speed: 6-10 Packs/min Packaging Type: Film,Cartons,Case,Bottles,Cans
    Application: Food,Beverage,Commodity,Chemical,Medical Weight: 550KG
    High Light:

    case packing machine

    ,

    film packing machine



    General description

    SSW series machine has been designed for no tray, no cardboard case, packing with low cost in the operations, it is widely used in food, beverage, chemical and office industries

    Applications

    Widely used in dairy, medical, beverage, cosmetic, chemical and health care industries, etc.
    It's suitable for packing various bottles, for example cans, mineral water bottle, wine bottle, beer bottle, beverage bottle, glass bottle, boxes, etc.
    High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic 0

    Main performance features

    Compact & artistic shape. The frame is novel, unique.
    Electronic induction feeding film, action is balanced and quickly replacing film.
    Isothermal sealing cutter. The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times.
    Transport system with speed regulation by frequency variation, the transmission action is precise and synchro.
    The shrinkage chamber uses centrifugal thermal air circulation system, configuration is logical, heat insulation heat reservation, thermostat precision is high and the packing effect is better.
    Advanced control component in the world, Well-equipped.
    Main flow chart:

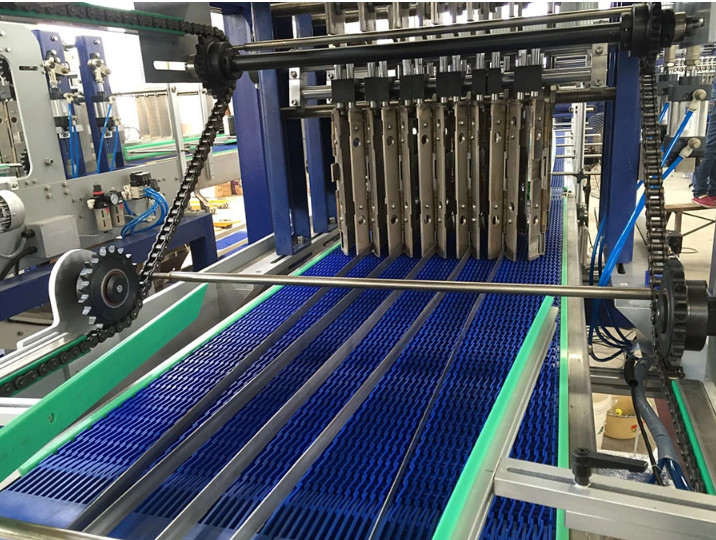

     1.Bottle feeding

    High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic 1

     2.Auto unscrambling

    High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic 2

    3.Pushing bottle

    High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic 3

    4.Film covering

    High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic 4

    5.Shrink tunnel

    High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic 5

    6.Cooling

    High Performance Shrink Wrapping Machine For Bottles 35 Packs / Min Fully Automatic 6

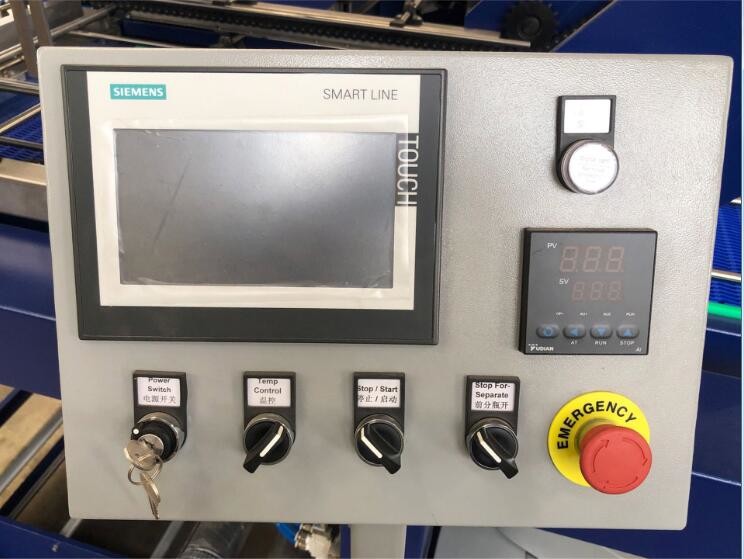

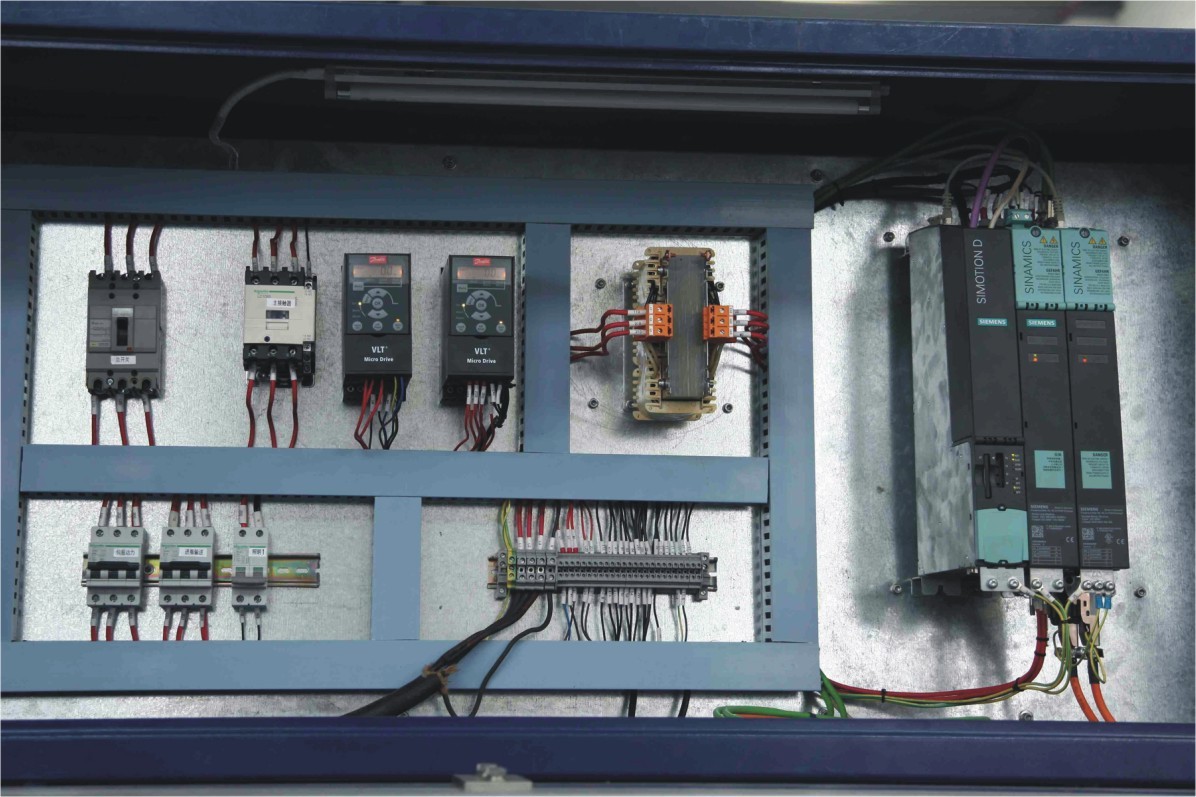

    Main configuration:

    Name
    Brand
    Qty
    PLC
    Mitsubishi
    1
    Touch screen
    Mitsubishi
    1
    Switch power
    Taiwan MingWei
    1
    Siemens contactor
    Siemens
    4
    Siemens electric door lock
    Siemens
    1
    Siemens thermo relay
    Siemens thermo relay
    3
    Inverter
    Schneider
    2
    solid-state relay
    Hong Kong Dongqi
    1
    temperature-controlled meter
    temperature-controlled meter
    1
    thermocouple
    Jiangsu
    1
    intermediate relay
    Omron
    11
    approach switch
    Atonics
    6
    photo electricity switch
    OPTEX
    3
    Correlation photoelectric
    OPTEX
    1
    Mirror photoelectric
    Atonics
    1
    Pneumatic duplex pieces
    Airtac
    1
    solenoid valve
    Airtac
    1
    air cylinder
    Airtac
    4
