Place of Origin: | Zhangjiagang, Jiangsu, China |
---|---|
Brand Name: | Sunswell |
Certification: | CE |
Model Number: | BFC |
Minimum Order Quantity: | 1 set |
Price: | USD12,000~2,000,000/SET |
Packaging Details: | PE film with carton box / wood packaging |
Delivery Time: | 60~120 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10sets/season |
Applicable Industries:: | Food & Beverage Factory | Automatic Grade:: | Automatic |
---|---|---|---|
Filling Valve Material:: | Ss316L | Suitable Bottle Volume:: | 330-2250ml |
Application: | Beverage | Bottle Type: | PET Plastic Bottle,Round Bottle |
High Light: | CSD Beverage Filling Machine,10000bph Beverage Filling Machine,10000bph beverage packaging machine |

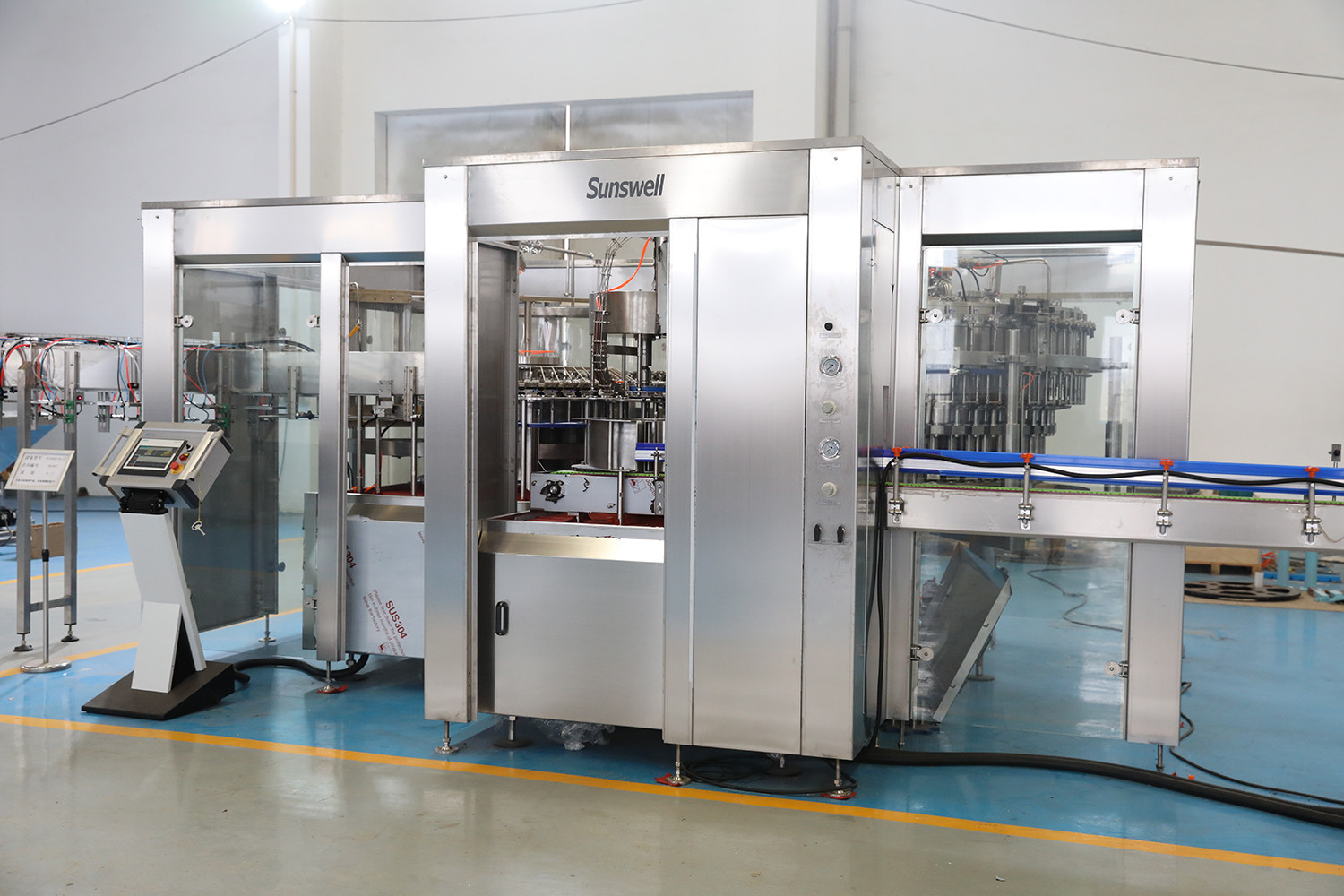

Sunswell Turkey Plant PET bottle Carbonated Soft Drink Filling Machine / CSD Bottling Machine For Beverage Filling
General description:
Flow Chart:
1)water purification system
Source water tank →Source water pump→ Quartz sand filter→ Active carbon filter→ Ion soften machine→ Fine filter →Reverse Osmosis → Ozone sterilizer → pure water tank
2)Carbonated drink processing system
1 Sugar melting tank + Filter
2 Mixing tank
3 Cooling water tank
4 Carbonated drinks mixer / Carbonator
5 CIP cleaning system
3) Bottle filling & packing system
Pure water tank→Bottle blower→Air conveyor →Washing, filling & capping 3-in-1→ Light check → Full-automatic labeling machine → Ink jet machine →Full automatic PE film packing machine→ warehouse
4)Bottle making system
pet preform→Autoloader→reheater →molding→ bottles
Product Capacity : 2500-24000bph
Model | Filling Heads | Capacity | Bottle Size | Power | Dimension(mm) | Weight |
DCGF14-12-5 | 12 | 2500bph | 200-2000ml | 1.8kw | 2200*1800*2000 | 2500 |
DCGF18-18-6 | 18 | 3000bph | 200-2000ml | 2.6kw | 2500*1800*2300 | 3000 |
DCGF24-24-8 | 24 | 6500bph | 200-2000ml | 3.8kw | 2800*2100*2300 | 5000 |
DCGF32-32-10 | 32 | 8000bph | 200-2000ml | 4.2kw | 3500*2200*2300 | 6000 |
DCGF40-40-10 | 40 | 10000bph | 200-2000ml | 7kw | 4760*2080*2300 | 7000 |
DCGF50-50-12 | 50 | 13000bph | 200-2000ml | 9kw | 5150*3820*2700 | 8500 |
DCGF60-60-15 | 60 | 17000bph | 200-2000ml | 13kw | 5300*3950*2700 | 10000 |
Deatails of each equipment:
1. Bottle infeed Air conveyor, star-wheel cooperate input the bottle, |
2.RinserCarbonated drinks filling machine is rotary washing machine |

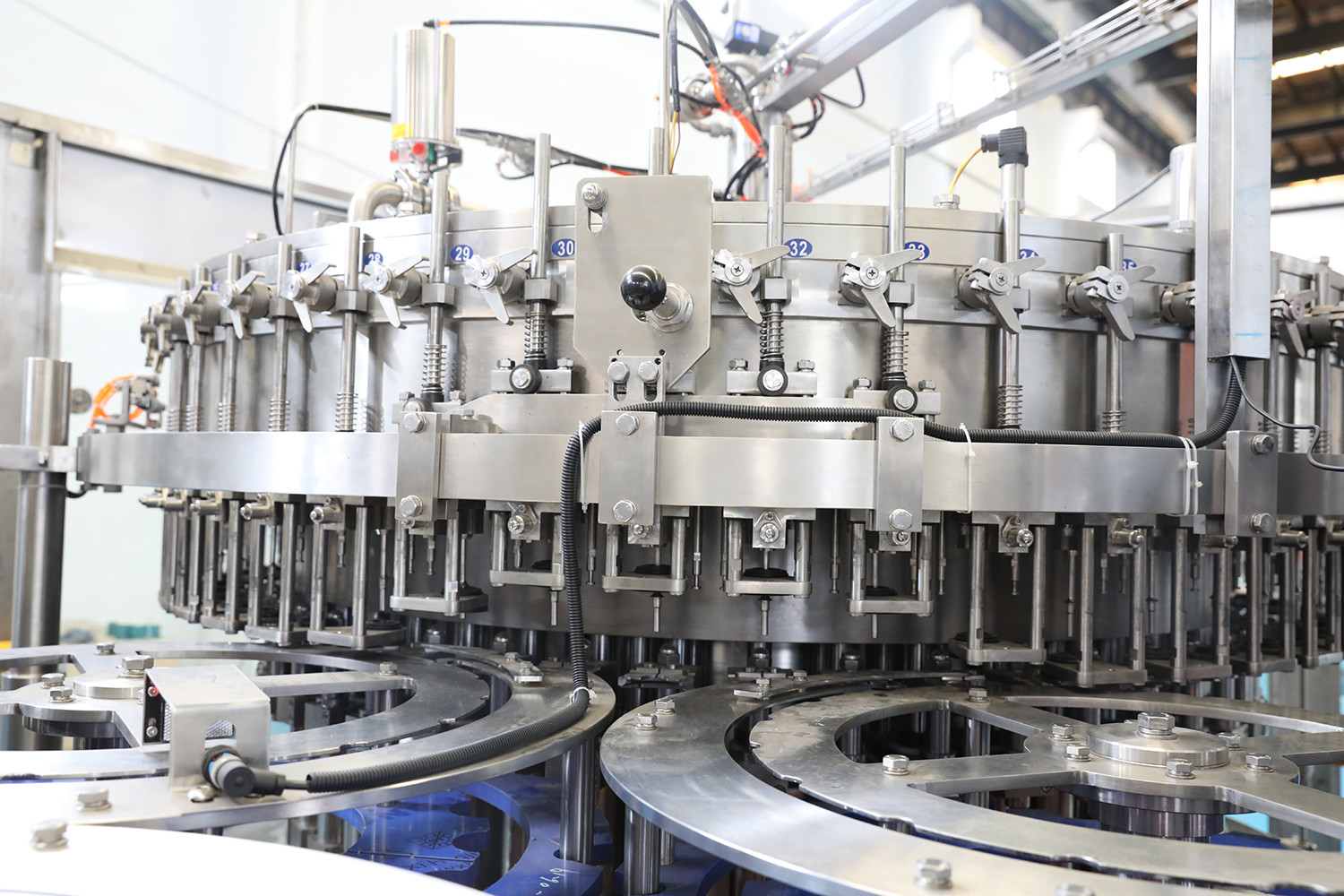

3. Filler Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable. |
4. Capper The bottle into the click wheel through the transition card bottleneck Capping Machine. |
