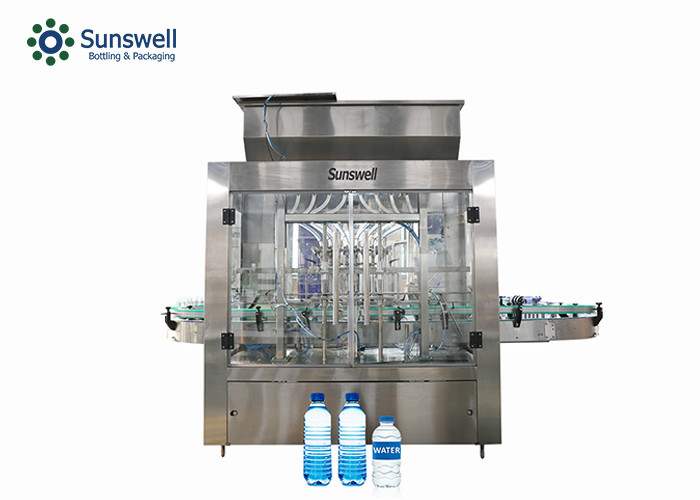

2000bph Automatic Mineral Water Filling Machines 380v customized

Basic Information

Place of Origin:	China
Brand Name:	Sunswell
Certification:	CE, ISO, SGS, UL
Model Number:	CGF32-32-8

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Seaworthy Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	100 sets per year

Get Best Price Contact Now

Product Name:	3 In 1 Water Filling Machine	Application:	PET Bottles Water
Function:	3 In 1	Rated Capacity:	500ml
Filling Method:	Gravity Filling	Dimensions:	L3380×W2580×H2700
Dosing Device:	Surface Type	Voltage::	380v Customized
Highlight:	2000bph mineral Water Filling Machines , Surface dosing mineral Water Filling Machines , 2000bph Automatic Water filler

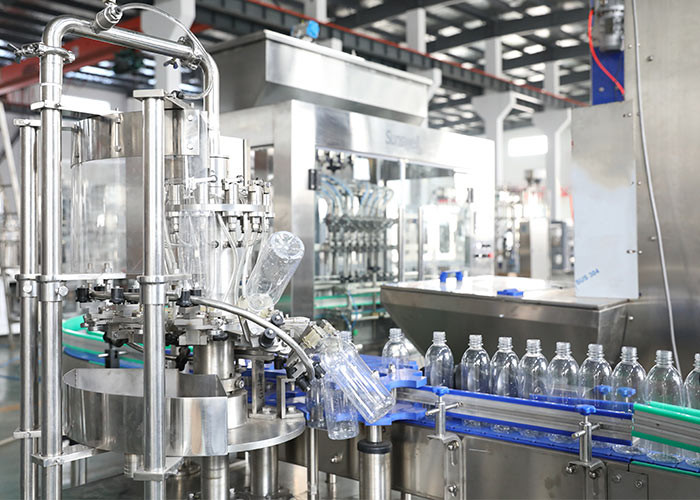

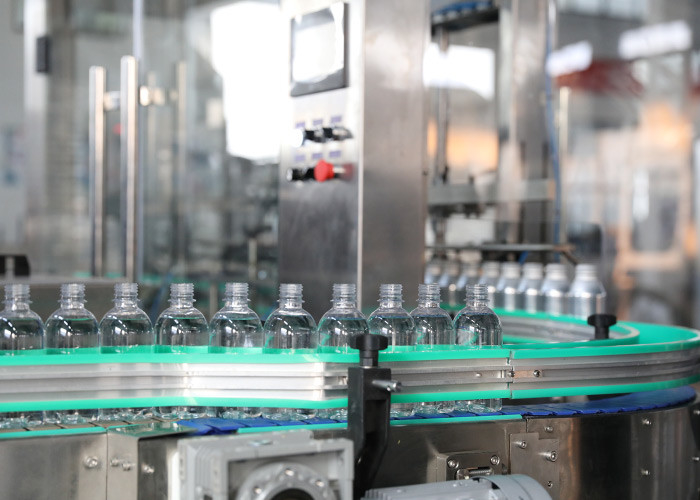

2000bph Automatic mineral water bottling plant water production Line

Technical parameter

Capacity: 5000BPH

Bottles can be handled: Dia: 40-160mm, H60-360mm

Caps can be handled: Dia:20-55mm

Power: 2KW

Air pressure: 0.6-0.8Mpa

Dimension: 2000mmx1030mmx2300mm

Weight: 900KG

Anti explode electrical control cabinet.

Specifications:

Nozzle number	8
Filling volume	500-4000ml
capacity	2000-2400 bottles/h (for 1000ml)
Filling precision	+-2-3g for 1000ml (200-1000ml )
Power	3kw
Voltage	AC220V /380V 3Phase
Gas supply	0.55-0.8Mpa
Air consumption	0.8m3/min

labeling driven	servo motor driven
direction	right/left
labeling speed	80～200pcs/minute
label size	width:15～220mm length:15～300mm
precision	+ 1mm
label roll	Max:Φ300mm
label core	Stander:Φ75mm
maching size	2500X1300X1500mm
weight	280kg
