Place of Origin: | China |
---|---|
Brand Name: | Sunswell |
Certification: | CE, ISO, SGS, UL |
Model Number: | XGFD16-16-5 |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Seaworthy Wooden Case |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 sets per year |
Product Name: | Mineral Water Filling Machines | Capability: | 7,000bph (500ml);3,500bph (1.5l) |
---|---|---|---|
Filling Heads: | 16 | Function: | 3-in-1 |
Total Power: | 3.5kw | Outline: | 2780mm×2080mm×2700mm |
Highlight: | pure Water Filling Machine,water filling equipment |
Bottle Water Filling Machine , Drink Water Filling Production Line
Detailed Product Description

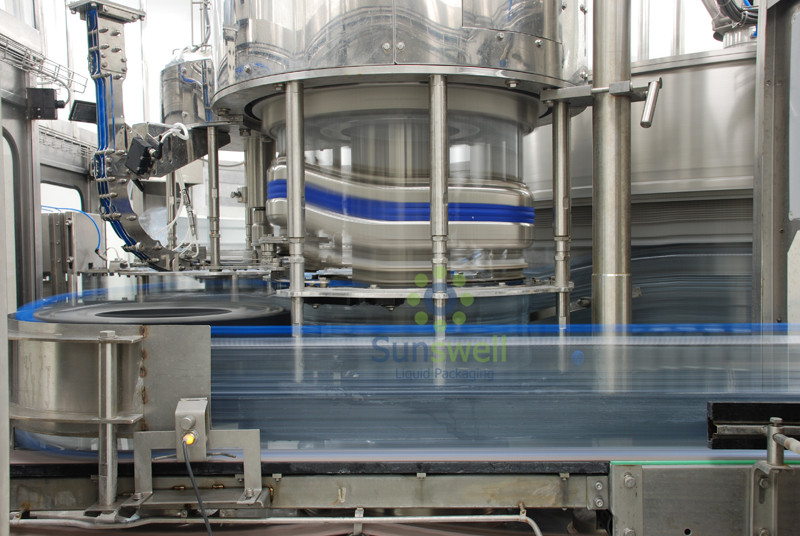

XGF16-16-5D Rinsing-filling-capping 3-in-1 Professional Bottle Filling Machine /drink water filling production line
CGF series 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still water, pure water, RO water, mineral water, sparkling water, etc. in big jars on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Applications:
Still water, pure water, RO water, mineral water, sparkling water, etc. in 3L, 4L, 5L, 6L, 8L, 10L bottles and jars
Competitive Advantage:
Technical features of water filling machine
It is adopted that direct connection between top-chain conveyor and infeed screw.
There is no need to adjust the height of equipments through neck holding tech for bottle transportation. And what is only to change some spare parts.
High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.
Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
High speed and large flow filling valve assures the high filling speed and exact fluid level.
Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.
Equipment structure of water filling machine
Rack
Rinser
Filler
Capper
Bottle infeed and outfeed system
Control
Main configuration
Touch screen: THINGET
PLC program controller: Mitsubishi
Inverter: Mitsubishi
Photoelectrical controller: Autonics
Proximity switch: Autonics
Other electrical components: Schneider
Pneumatic component: Airtac
Water pump: Nanfang
Main motor: Siemens
Bearing: Harbin
Specifications:
Model |
XGFD 16-16-5 |
Rinsing heads |
16 |
Filling heads |
16 |
Capping heads |
5 |
Capability |
7,000bph (500ml);3,500bph (1.5l); |
Total power |
3.5kw |
Outline |
2780mm×2080mm×2700mm |
Weight |
4200kg |
