Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant

Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant
Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant
Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant
Basic Information
Place of Origin: China
Brand Name: SUNSWELL
Certification: CE
Model Number: SSW
Minimum Order Quantity: 1 set
Price: USD18,000~250,000/SET
Packaging Details: Packaging Details: Seaworthy wooden cases plus wrapping film Carbonated Soft Drink Filling Equipment small manufacturing machines
Delivery Time: 60 days
Payment Terms: L/C, T/T, Western Union
Get Best Price Contact Now
Product Name: Linear Type Water Filling Machine Function: Water Rising Filling Capping
Capacity: 500-2000BPH Filling Range: 5L 10L 15L
Type: Linear Type Model: RFC
Control: PLC Control Bottle Type: Plastic Bottle
Place Of Origin: Jiangsu Province Material: SS304/316
Highlight:

PLC Mineral Water Bottle Filling Line

,

1 Gallon Bottle Filling Line

,

PLC control Bottle Filling Line

Mineral water pure water filling machine 3L 5L 12L 1gallon bottle filling line production plant

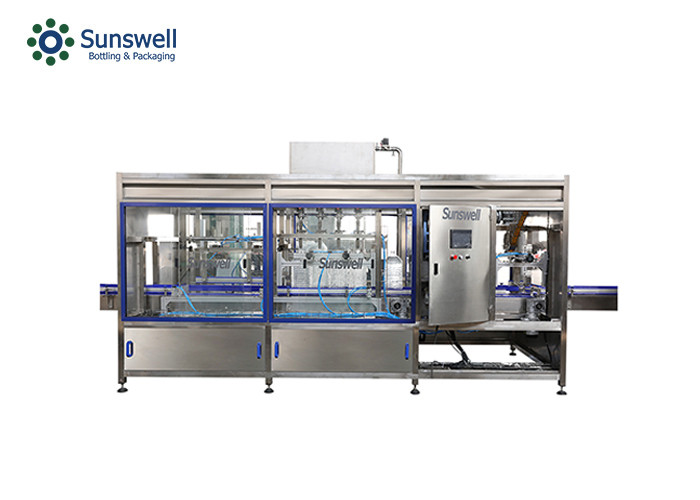

The water line is composed of separate rinsing, filling and capping units. It is innovated and designed in the requirement of still pure water and mineral water in big jars, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.



The machine is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.

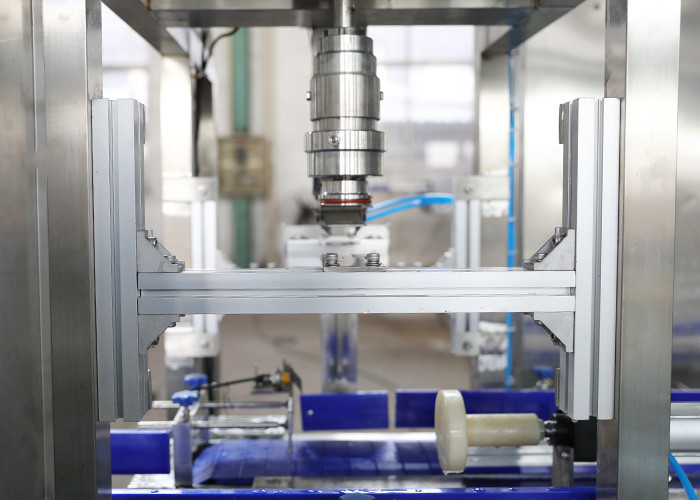

1. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows Automatic 5 gallon bottle washing machine



Specifications:

Model
XGF4-4-1
XGF6-6-1
XGF8-8-3
Production
400~500Bottles/hour
600~800Bottles/hour
800~1000 Bottles/hour
Washing heads
4pcs
6pcs
8pcs
Filling heads
4pcs
6pcs
8pcs
Capping heads
1pc
1pcs
3pcs
Power
2.5KW
4.5KW
5.5KW
Dimension
2800*1100*1800mm
3500*1100*1800mm
4200*1100*1800mm



Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant 0

Pure Water Filling Machine 3L 5L 12L 1 Gallon Bottle Filling Line Production Plant 1
