Place of Origin: | China |
---|---|
Brand Name: | Sunswell |
Certification: | CE, ISO, SGS, UL |
Model Number: | MB-10 |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Seaworthy Wooden Case |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 sets per year |
High Light: | film packing machine,shrink wrapping machine |
---|

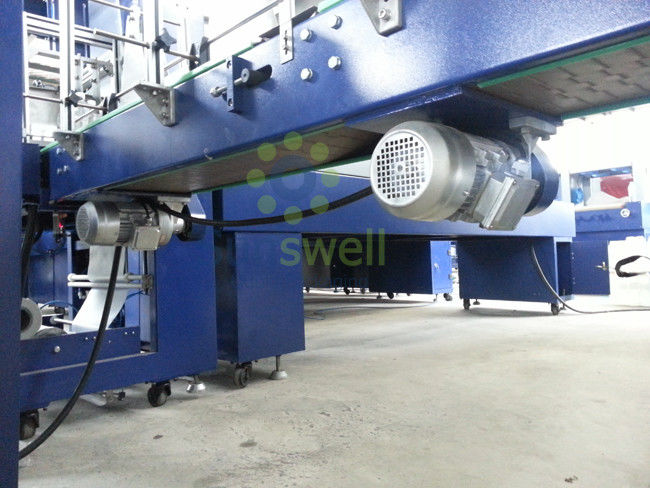

Film Wrapper Shrink Packaging Equipment Full Automatic For Soft Drink / Liquor
The characteristic of our wrapping Machine:
1. Specially designed for the full automatic packaging production line of beer, beverage, purewater, fruit juice, dairy products etc.
2. With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinkage, cooling and shaping etc.
3. Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal.
4. The quick seal cooling structure guarantee that the seal has a higher strength even if under high speed production condition.
5. Adopt with PLC automatic program circulation control with stable and reliable performance.
6. The original imported guide bar cylinder guarantee correct operation and durable.
7. The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss.
8. All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
9. Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.
10. 3 layers of heat insulation treatment with good insulating property, quick temperature rise and energy saving.
11. The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transported.
12. It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine.
Applications:
Main performance features
Main parts
No. |
Name |
Brand |
Region |
Remarks |
1 |
Pneumatic Cylinder |
Chanto |
Taiwan |
|
2 |
Pneumatic Components |
Airtac |
Taiwan |
|
3 |
PLC |
Omron |
Japan |
|
4 |
Button |
Tayee |
China |
|
5 |
Inverter |
Schneider |
France |
|
6 |
Relay |
Schneider |
France |
|
7 |
Contactor |
Schneider |
France |
|
8 |
Solid Relay |
Crydom |
France |
|
9 |
Teflon Belt |
Kaiyao |
China |
Imported material |
10 |
Reducer |
Halei |
China |
|
11 |
Photoelectric Switch |
Autonics |
Korea |
|
12 |
Proximity Switch |
Autonics |
Korea |
|
13 |
Steel Sheet |
Baosteel |
China |
Cold-rolled (1.5-2.5mm) |
14 |
Chain Plate |
Tuoxin |
China |
POM |
Maximum Bale Size | L 600×W 400×H 350(mm) | ||
Packing Speed | 10-15 Pcs/m | 14-18 Pcs/m | 12-16 Pcs/m |
Working Power Supply/ Power | Three phase five wire 380 V 19 KW | ||
Height of the Conveying Belt | 800-1200 mm | ||
Operating Air Pressure | 0.6~0.8 Mpa | ||
Intake Air | 0.5 m3/minute | ||
Time/ Temperature of Sealing and Cutting | About 0.5-1.5 s 140 oC-160 oC | ||
External Dimensions | L 5500×W 3200×H 2100(mm) | L 5500×W 2700×H 2100(mm) | L 5500×W 3200×H 2100(mm) |
Thermal Shrinking Duct Size | L 1800×W 650×H 450(mm) | L 1800×W 650×H 400(mm) | L 1800×W 650×H 450(mm) |
Overall Weight | 1500 kg | 1500 kg | 1450 kg |
