Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
Place of Origin: | Jiangsu |
---|---|
Brand Name: | SUNSWELL |
Certification: | CE, ISO |
Model Number: | XGF |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Seaworthy wooden cases plus wrapping film |
Delivery Time: | 50 days |
Payment Terms: | T/T, LC,WESTERN UNION |
Supply Ability: | 100 sets per year |
Product Name: | Drinking/Mineral/Pure Water Rinsing-Filling-Capping Machine | Bottle Type: | PET Plastic Bottle |
---|---|---|---|
Capacity: | 150BPH-2000BPH | Filling Volume: | 18.9L, 19L, 19.9L, 20L |
Filling Principle: | Gravity Filling | Filling Accuracy: | ±5% |
Material: | SUS 304/316L | ||
Highlight: | Plastic Bottle Mineral Water Filling Machine,5 Gallon Buckets Washing Filling Machine,Stainless Steel 5 Gallon Water Filling Machine |

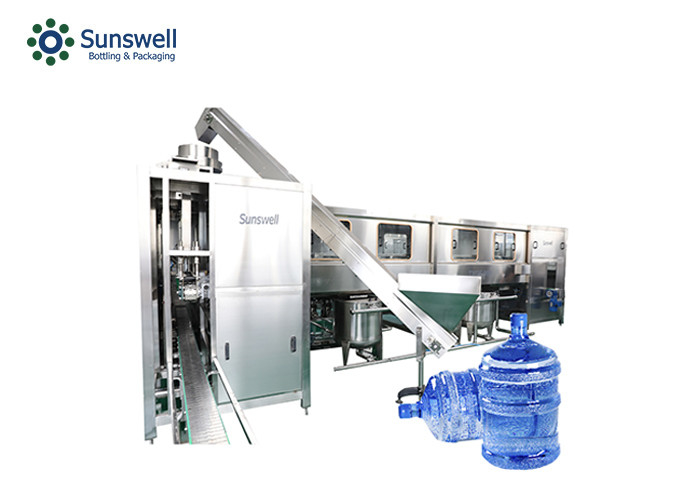

High efficiency 5 gallon buckets water washing filling machine for spring mineral water
300 barrel filling line is used to produce 5 gallon drinking water.
This machine composed with Rinse, filler and capper. It is the ideal equipment for mineral water, distilled water and pure
water producing process.
The machine is made of great stainless steel which is corrosion resistant and easy cleaning. Stainless steel is food grade ,
Automatic cap unscrambler,Automatic protection device.
The line equipment has compact structure, high working efficiency, stable and reliable, sensitive and correct support, and
high degree of automation. It is a fully automatic barreled equipment of mechanical and electrical trinity.
CE/ISO new design 5 gallon bottled water machines/filling machine
Main technical data | |||||||
Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
Number of filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
Filling capacity | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size (mm) | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
Production capacity (b/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
Motor power(kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
Rated voltage (V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Overall dimension (mm) | 3790×650 ×1550 |
3550×800 ×1800 2800×1100 ×1800 |
3550×1200 ×1800 3800×1100 ×1800 |
3650×1500 ×1800 3800×1100 ×1800 |
2200×1860 ×2700 not include cleaning |
2560×2350 ×2750 not include cleaning |
3100×2800 ×2750 not include cleaning |
