Place of Origin: | China |
---|---|
Brand Name: | Sunswell |
Certification: | CE, ISO, SGS, UL |
Model Number: | TGX |
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | Seaworthy Wooden Case |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 100 sets per year |
Highlight: | bottled water filling machine,automated filling machine |
---|

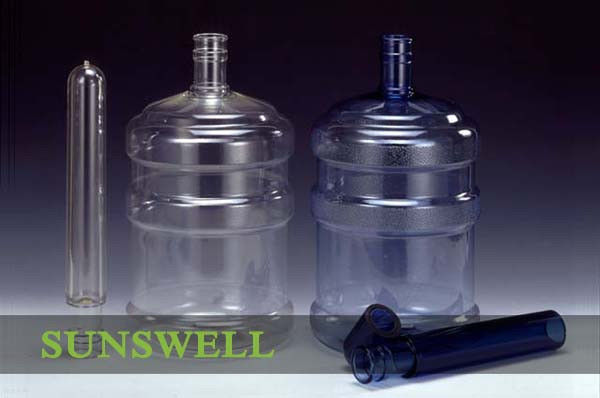

TGX series 5 gallon filling machine is designed for producing 5 gallon barrel drinking water. There are 8 kinds of machines which can produce 120,300,450,600, 900, 1200 and 2000 5 gallon barrel drinking water per hour. Every machine is consisted of rinser, filler and capper. The rinser has several sprays which can be used as for both clean water rinsing and disinfectant rinsing. The disinfectant can be recycled. The machine also has automatic capping device, and cap rinsing device. The whole production line can automatic feeding barrel, rinsing, sterilizing, filling, capping, counting and output.
TGX -600 barrel production line is specially used for 5 Gallon barrel drinking water. This machine integrates washing/filling/capping into one unit. It is the good ideal for produce the mineral water/distilled water/pure water equipments. Whole machine are adopt the high quality stainless steel, It's erosion proof ability is strong, easy to washing.
Mostly electric components are adopt Siemens, OMRON etc famous company. Electric component adopt import Air TAC famous brand product. The machine is advanced in construction, occupying small area, steady in performance, high in produce efficiency, high in automatization degree. Easy in operation, which integrates machinery, electricity and pneumatics technologies together into one unit full automatic barreling machine.
APPLICATION:
It is especially used for 5 Gallon barrel pure water washing, filling, capping production line.
CHARACTERISTICS:
The parts with touch water adopt high-quality stainless steel. The cylinder gear runs smoothly and the fixed position is correct. It adopts inserting-type washing technology to remove washing blind angle.
Specifications:
Model |
TGX- |
TGX- |
TGX- |
TGX- |
TGX- |
TGX- |
Filling heads | 1 | 2 | 3 | 4 | 6 | 8 |
Volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size(mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
Capacity(b/n) | 120 | 200 | 300 | 450 | 900 | 1200 |
Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 |
Gas consumption(m*3/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1.5 | 1.8 |
Moto power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 9.75 | 13.5 |
Rated voltage(v) |
380V/ |
380V/ |
380V/ |
380V/ |
380V/ |
380V/ |
Weight(kg) | 680 | 800 | 1500 | 2100 | 3500 |
|
