Stretch Automatic Blow Molding Machines 2000ml Pet Water Bottle

Basic Information

Place of Origin:	Jiangsu, China
Brand Name:	Sunswell
Certification:	CE, ISO
Model Number:	RBM

Minimum Order Quantity:	1 set
Price:	USD 155000 per set
Packaging Details:	wooden packaging
Delivery Time:	80 days
Payment Terms:	L/C, T/T
Supply Ability:	10 set/sets per month

Get Best Price Contact Now

Plastic Processed:	PET, HDPE/PP	Bottle Volume(ml):	2000 Ml
Product Name:	Automatic High Speed Pet 1 Litre Blow Moulding Machine	Compact Design:	6 Cavity Rotary System
Warranty:	2 Years	Blow Moulding Type:	Stretch Blow Moulding
Highlight:	Stretch Automatic Blow Molding Machines , 2000 ml Automatic Blow Molding Machines , Pet Water Bottle Blow Molding Machines

Automatic Pet water bottle blowing machine Stretch blow molding machines

Automatic pet water bottle stretch blow molding machine is successfully developed and researched by our company by absorbing the most advanced bottle producing technology in the world. It’s mainly made of hopper, elevating system, lining device, ion air blow dust, oven and mainframe, electrical controlling system and pneumatic controlling system.

Main advantages:

1: compact design

2: servo stretch

3:low compressed air consumption

4: top branded supplier

Parameter

			Model
			SBM6M

			Capacity
			12000(BPH)

			Bottle volume
			0.25-2.5L

			Max. bottle diameter
			115(mm)

			Max. bottle height
			340(mm)

			Preform material
			PET

			Preform internal diameter
			Φ14-Ф26

			Preform height
			150

			Supporting ring diameter
			≤Ф36(mm)

			Blow molder

			Cavity
			6

			Main driven motor power
			5.5 kw

			Voltage/Frequency/Phase
			380V±10％/50Hz/three phase + grounding wire

			Heater

			Heating oven quantity
			8

			Lamp quantity of each oven
			10

			Lamp power
			3/2.5 kw

			Installation power
			180KW

			Voltage/Frequency/Phase
			380V±10％/50Hz/three phase + grounding wire

			Compressed air pressure and consumption

			Technic(high pressure) compressed air; Food grade (clean, dry, oil free)
			3.5 MPa

			Compressed air consumption
			According to the products

			Cooling water

			(Bar)Pressure
			6±0.5

			(20-40℃)Cooling water mold
			5 m3/h

			Cooling water heater (m3/h water temperature 7-12℃)
			2.5 m3/h

			Cooling water consumption for heater (m3/h water temperature 17-22℃)
			2.5 m3/h

			Machine weight

			Blow molder
			13500kg

			Heater
			4000kg

Details picture

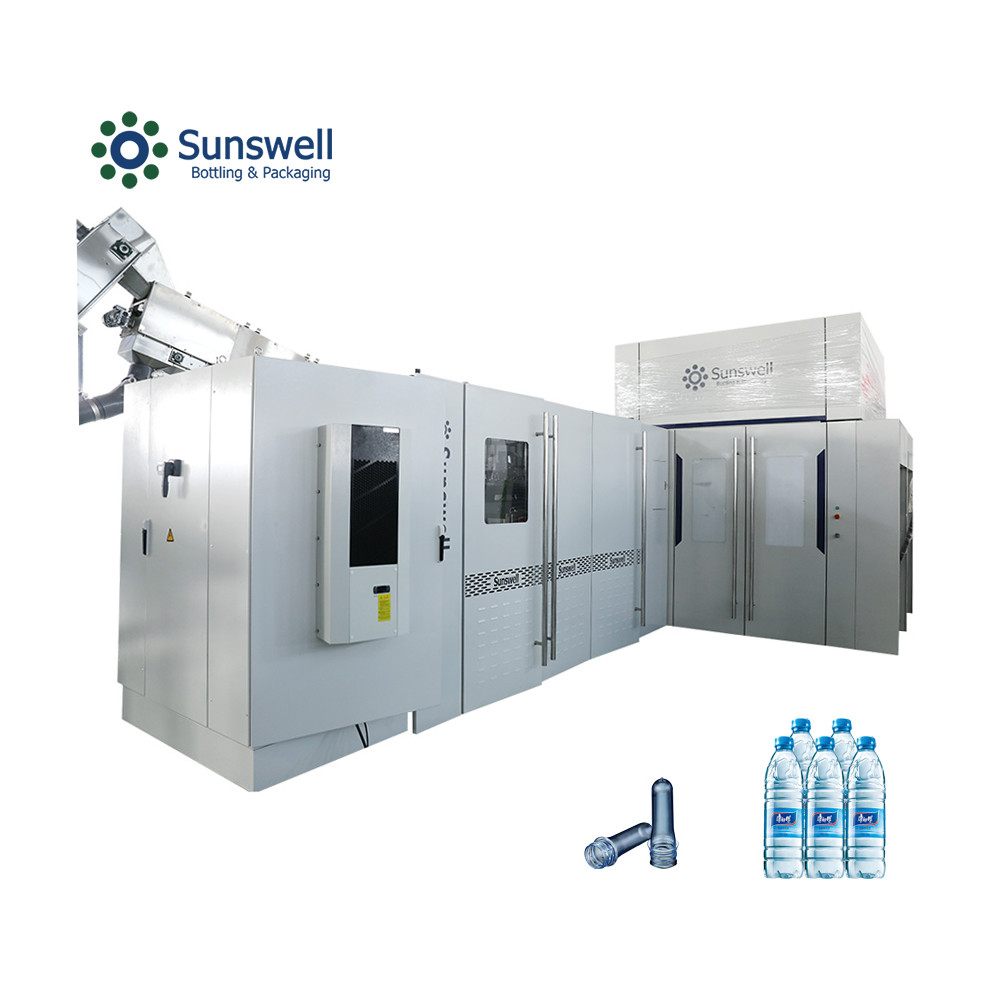

1.Rotary blower molding bird view
2.Rotary Blower molding machine heat oven

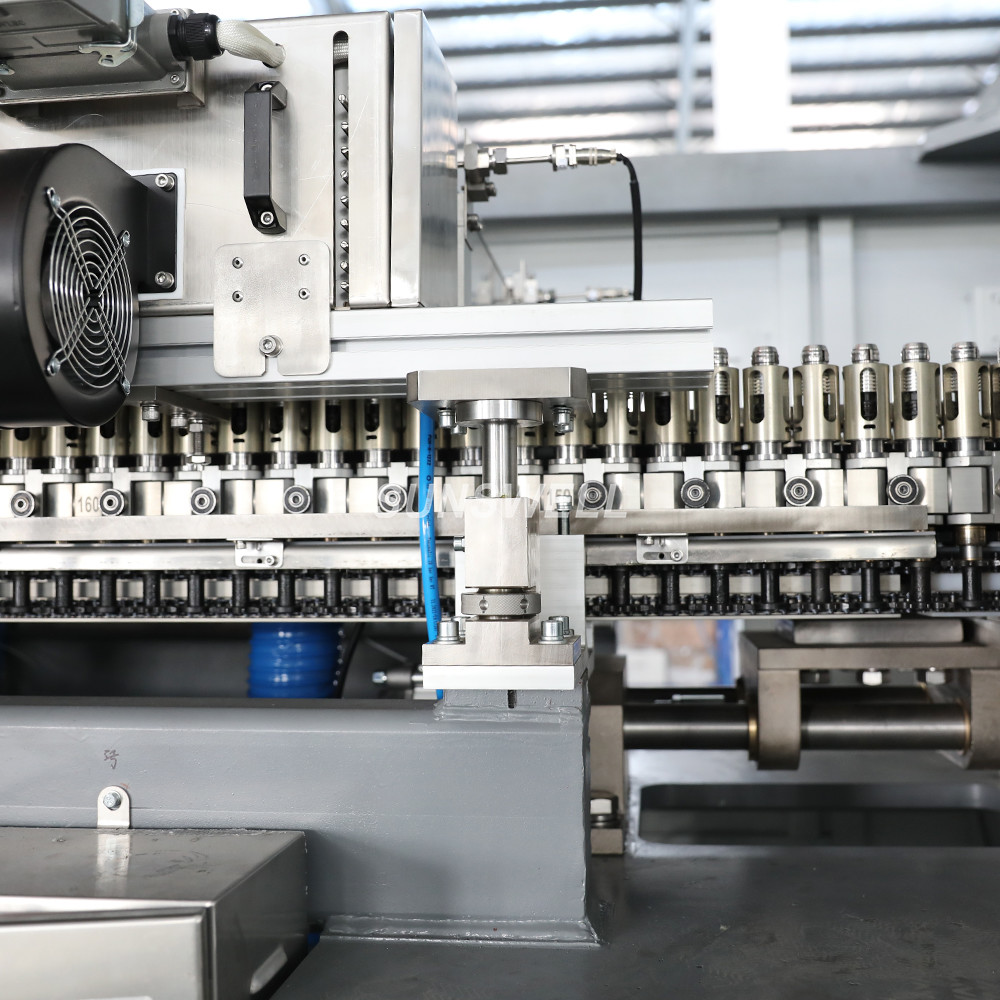

3.Rotary Blower molding machine inlet and outlet gripper

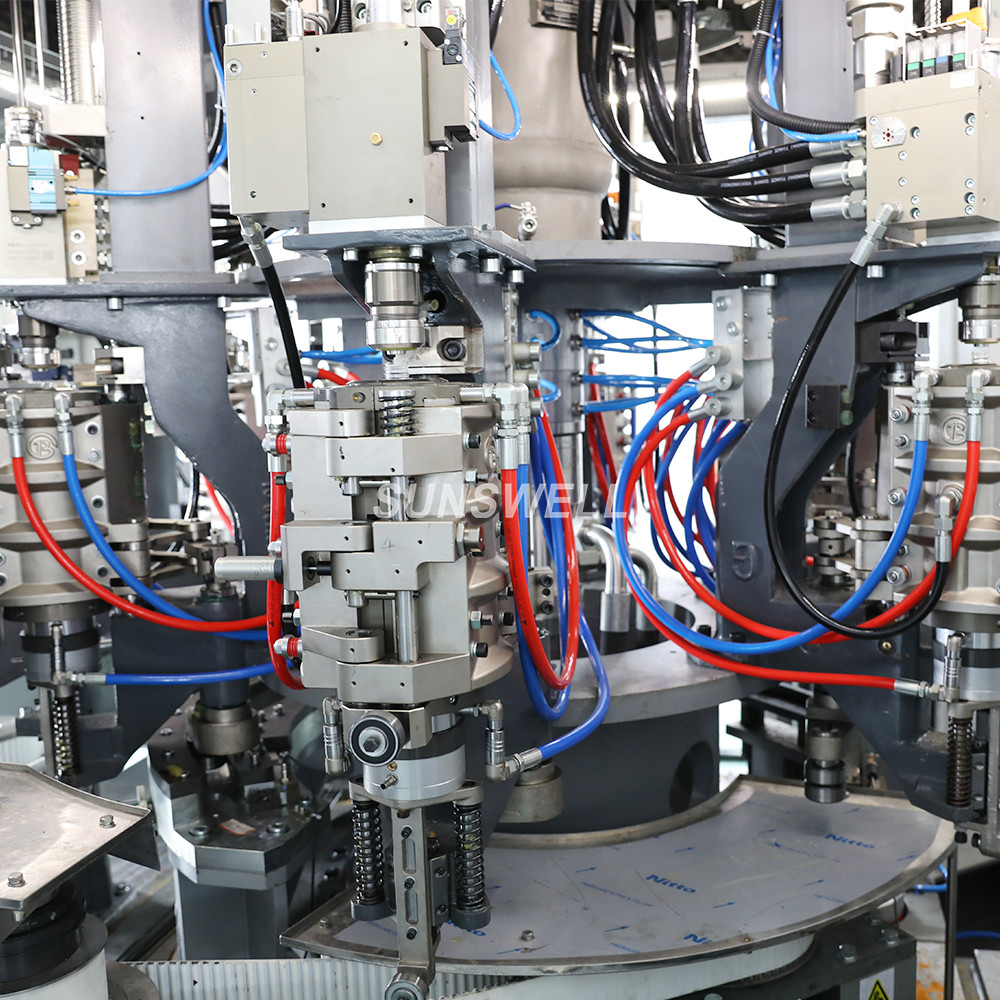

4.Rotary Blower molding machine mold station
